Panasonic Toughbook CF-29 Hard Drive Replacement

Geschrieben von: Clint Kirsop
  • Kommentare: 2
Panasonic Toughbook CF-29 Hard Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

1 Minute

Einleitung

This guide will show you how to safely remove the hard drive from your laptop.

  1. Q1LlhVrXXRipQNLs

    • Locate the bay door for the battery on the left side of the laptop.

  2. h6mfbF2ZDfEn4bdR
    h6mfbF2ZDfEn4bdR
    HLsS2NIP2NZDIW1r

    • Slide the latch to the right and then down to unlock it.

    • Pull out the battery.

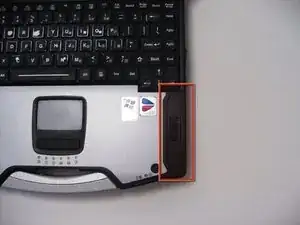

  3. X16sPhIIAk1PcWWr

    • Locate the door for the hard drive on the right side of the laptop

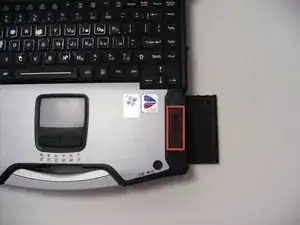

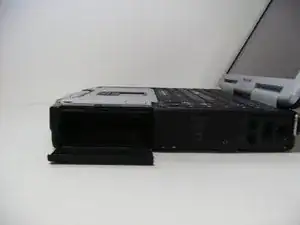

  4. WQNQDSKTjrBrqQvB
    WQNQDSKTjrBrqQvB
    tKdIBD2ZNrQFIyFO

    • Push and slide the latch up to open the hard drive door.

    • Pull out the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
