Astro A50 (2019) Akku tauschen

Geschrieben von: Bryan Ambrocio-Gonzalez

Kommentare: 13

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Heute reparieren wir gemeinsam die Astro A50 Kopfhörer (2019). Der häufigste Grund, der eine Reparatur nötig macht, ist entweder ein Wutanfall beim Gamen oder schlicht der Akku, der ersetzt werden muss. Es sind nicht viele Schwachstellen dieser Kopfhörer bekannt, also ist derAkkuwechsel wohl die einzig nötige Reparatur.

Legen wir los. Hoffentlich hilft dir diese Anleitung, dein Problem zu lösen.

Werkzeuge

Ersatzteile

Astro A50 Battery

Schritt 1

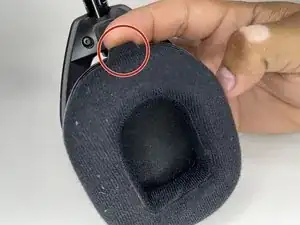

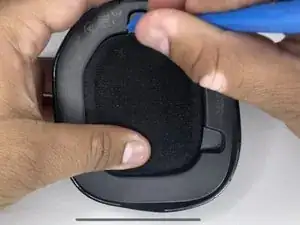

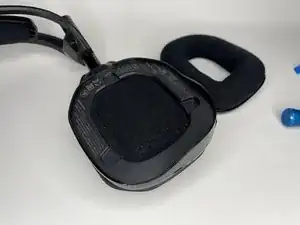

Entferne das rechte Ohrpolster, indem du die obere Lasche zu dir ziehst.

Schritt 2

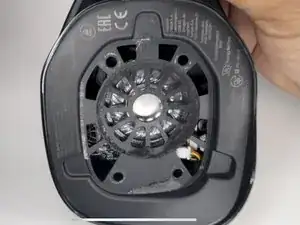

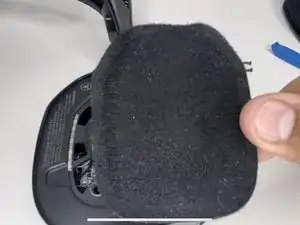

Entferne den Lautsprecher-Filter mit einem Hebelwerkzeug an und löse ihn ab.
Arbeite dich um den Filter herum, bis er komplett abgelöst ist.

Schritt 3

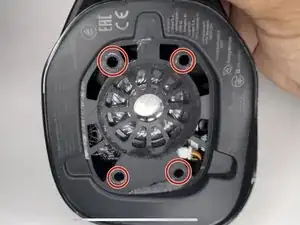

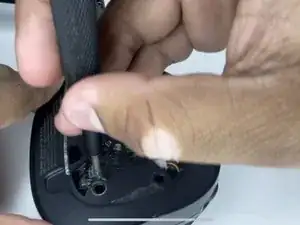

Entferne alle vier 1,5 mm Schrauben mit einem Kreuzschlitzschraubendreher #00.

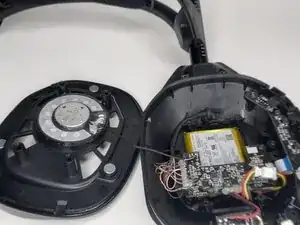

Hebe den Lautsprecher vorsichtig und nicht zu schnell an, um die feinen Lautsprecherkabel nicht zu beschädigen.

Schritt 4

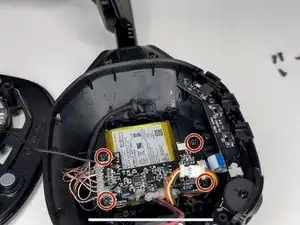

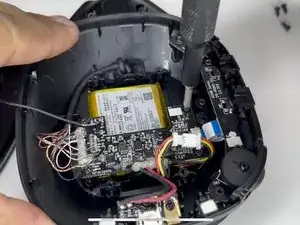

Entferne alle vier 1,5mm Schrauben der Hauptplatine mit einem Kreuzschlitzschraubendreher#00.

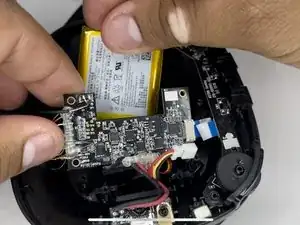

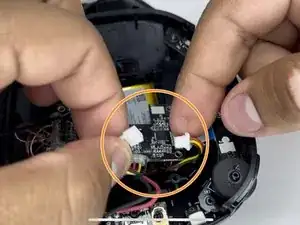

Trenne den Akku ab, indem du den Stecker aussteckst.

Schritt 5

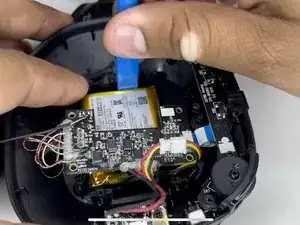

Entferne den Akku mit einem Hebelwerkzeug.
Sei vorsichtig, damit du den Akku nicht beschädigst oder knickst.

I found a way to get around replacing the battery. For my case, I had my Astros stored away for 2 years without turning them on so the battery was below the voltage where the board would allow the battery to charge.

To fix it I followed this guide to remove the battery. The battery has a small board that you need to peel up to expose the + and - poles at the bottom. I carefully cut and peeled some of the yellow tape to be able to fold the small board away to expose them.

The board itself won’t allow the charge to pass through since it’s too low volt. You need to pass a current onto the battery itself and get it up to 3.5 to 4v.

I used a mini usb charger to pass current. Cut the mini usb side off a spare cable, I taped the + to + and - to -. Plug the usb cable to power for about 10 seconds. Then unplug for a few sec. Then plug in for 30 secs. Then cycle like this slowly introducing power to it.

Use a voltmeter to check the voltage of the battery though out , max 4.5v. Reinsert battery. The LED should turn on now.

Daniel -

You can also use a 9v battery it’s just a bit slower. Attach the positive to positive. Neg to neg with some spare wire. The battery has the indicators of which side is which as does the 9v battery.

Start by checking the battery voltage. Mine was as 0.02v completely dead.

Introduce power 10 seconds. Then 30. Then a few more cycles of 30. Check what the voltage settles at after each cycle. Once it’s over 2v I left it a bit longer just aim for 3.5-4v. Do not leave it plugged in unmonitored or it can overheat and ignite.

I did the usb power method and took about 5 minutes of manual charging. The 9v battery may take 10-15 minutes.

When you plug the battery back o to the headset, the LED should turn on. Now you want to charge it on the base for a few hours and as usual.

Prior to doing this my LED light didn’t turn on and my battery would not charge even after charging it overnight. Now it works!

Daniel - 09/09/24

When I say to use a mini usb cable to introduce power to the battery, I mean use a spare one and cut off the mini usb side. Strip the black and red cables. And then touch these to the battery. Use a voltmeter to find which is pos and neg if needed but usually the red is the positive. I used small pieces of tape to hold them onto the battery just long enough.

Last note. Use voltmeter to test battery +\- to be sure you’re touching actual metal. There may be yellow plastic tape covering it so just be sure you’re getting metal contact and not just touching the yellow tape. Take your time don’t cut into the battery sleeve just the yellow tape. Good luck!

Daniel -

To recap, my problem was a completely dead battery after not charging my A50’s for years. I just had to “jumpstart” the battery because if the voltage on the battery gets too low(near 0 in my case), the circuit board on the battery will not allow the base charger power to pass through. This is for safety reasons but usually to not allow the battery to overcharge and catch fire. So no power was actually getting through to the battery.

I bypassed the circuit board and passed power directly to the battery up to 4v. Now the board works as intended and allows the normal charger to charge the battery.

Daniel -

One more note :)

After you’re done, set the headset on the charger/base station while powered on. If the LED light is still white, take then off the base station and place them on the charger again.

The LED light should now be orange/amber indicating it’s charging.

My understanding of why this happens is, first we manually jump started the battery. When you first put them on the base station, the power hits the circuit board but doesn’t realize the battery is now awoken. When you put them on the base station again a second time it makes the full connection. Essentially making it realize oh, the battery is back lets charge! So now the power is making it all the way through to the battery. Mission accomplished.

Charge for 4 hours at least

Daniel - 09/09/24

Abschluss

Um dein Gerät wieder zusammenzubauen, befolge die Anleitung in umgekehrter Reihenfolge.

Nach Abschluss dieser Anleitung solltest du deinen neu eingebauten Akku kalibrieren.

Entsorge deinen Elektromüll sachgerecht.

Tinte & Feder

Bryan Ambrocio-Gonzalez

Mitglied seit: 05/10/21

212 Reputation

8 Kommentare

Where did you source the battery for this? Do you have the part number at least? Astro doesn't sell them.

Thomas Garcia -

I am also looking for this without having to get them from china as it will take 4 to 6 weeks to get it. Any local source for this battery?

billy7183 -

I had to order from China, only batteries that are held domestically I could find were for the gen3/solder only and not the connector style

Luft -

For those with a gen3 a50, the battery is mounted slightly different, you don't need to remove the PCB, just pinch the black tabs holding the outer cover on. See here: https://imgur.com/a/m2Nv2Ze

Wouter V -

I performed this battery replacement. I sourced a new battery from another new A50 Gen 4 that was firmware bricked.

I’m having an issue charging the new battery with the base station. The headset does not seem to accept a charge from the base station however it will charge via a micro USB cable plugged into a usb wall brick.

I believe the issue is related to the battery not being calibrated to the old headset. Any ideas?

William Patterson -

SRP603443 but now I need the adapter to be able to connect it to the port anybody know where I could buy it?

J.E.R.N Nava -

I bought a battery with 3,7V and 900mA from the company Cellonic. They have a fitting one.

Was easy to do! Merci for the tutorial and the translation.

Klaudi -

It's a 623441 battery. But you can get any similarly sized/rated battery at 3.7v to work.

Mike Stavola -
