Asus Padfone 2 Battery Replacement

Geschrieben von: Zach Standridge
  • Kommentare: 1
Asus Padfone 2 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

  1. xDytsMbaK41yqtrL

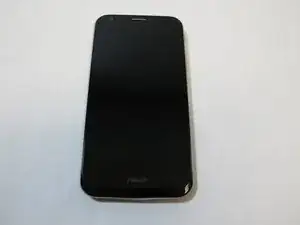

    • Hold down power button to shut off phone.

  2. OZQCH6XajIdrVRhI
    OZQCH6XajIdrVRhI
    gda4GgosBGXDXaXa

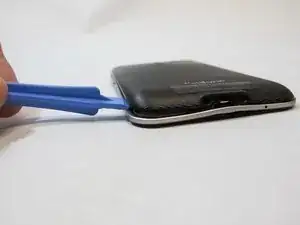

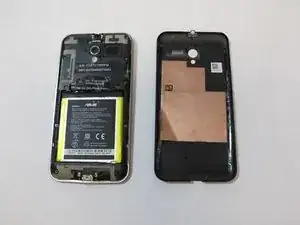

    • Use plastic opening tool to pry off the back cover of the phone.

  3. xBqeKiDgGknUaMBp
    xBqeKiDgGknUaMBp
    H6t2DEmwU36CJdAB
    crdZu1VriWLQVucL

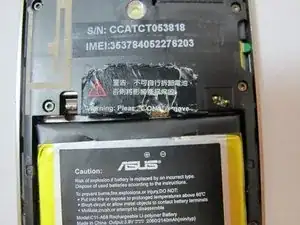

    • Remove the warning sticker that covers the battery plug and connecting cord.

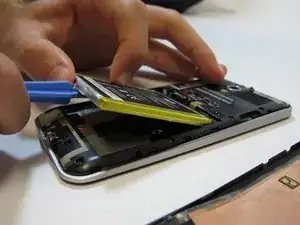

    • Look for the widest gap on either side of the battery. Using the plastic opening tool carefully lift battery out.

    • The battery is held down with adhesive. Be careful not to damage battery or connecting cord

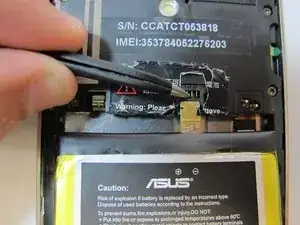

    • Disconnect battery connecting cord using tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Zach Standridge

Mitglied seit: 25/09/14

350 Reputation

Ein Kommentar

Pull the battery connector towards USB. You will break it if you pull it up, as I did.

I wouldn’t recommend metal tweezers as it could shortcut the battery.

Los Karlos -
