BaByliss i-Pro 45 Akkus tauschen

Geschrieben von: Stanky
  • Kommentare: 20
BaByliss i-Pro 45 Akkus tauschen

Schwierigkeitsgrad

Mittel

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

Diese Anleitung zeigt, wie der BaByliss i-Pro 45 geöffnet und die Akkus ausgetauscht werden.

Du benötigst drei AAA 1,2V Akkus mit U-förmigen Anschlussdrähten/-fahnen. Du musst die alten Akkus entlöten und die neuen Akkus auf der Leiterplatte festlöten. Achte auf die richtige Polarität.

Da das Gehäuse offen ist, solltest du die Gelegenheit nutzen und es gründlich reinigen. Unter dem Scherkopf können Haare stecken.

  1. 2uPptV2aLbW3fwCm

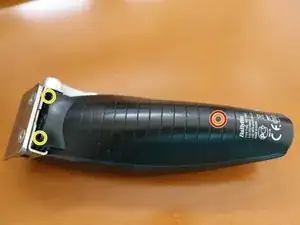

    • Entferne den Gummistöpsel über der Schraube.

    • Entferne die Schraube darunter.

    • Nimm einen langen Kreuzschlitzschraubendreher und entferne die beiden Schrauben unterhalb des Scherkopfes.

  2. E23JCVKLUuTKjqNC
    E23JCVKLUuTKjqNC
    oUotGcOiM6QVECU3

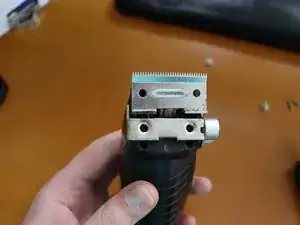

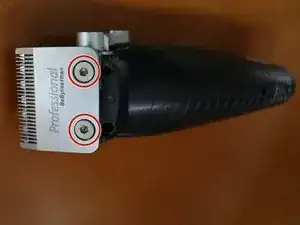

    • Entferne die beiden Schrauben unten am Scherkopf.

    • Entferne den Scherkopf.

    Removing the blade isn’t required. The device can be easily opened without removing the blade.

    Fuss -

    Strictly seeing it is not necessary, that’s true. Thank you for your contribution.

    Stanky -

    Btw. did you actually open it and manage to change the batteries? If yes, can you take a photo of the lower side of the IC (the side where there is only a single battery)? Back then I forgot to document that.

    Stanky -

    I did open up the shaver, but haven’t replaced the batteries yet; just wanted to ensure they’re identical to this guide (they were :-)).

    The batteries I want are out of stock currently; I’ve set an alert when they become available. Meanwhile the shaver is closed (and fully operational, with short battery life) again. If I don’t forget, I’ll take a picture of the other side of the mainboard.

    Fuss -

    Thanks. I had some difficulties installing the batteries and was wondering later, if I maybe soldered something incorrectly, hence I would be really glad about a detailed photo.

    Back then I also had to wait for the batteries to arrive, that’s when I created this guide. Feel free to upload some additional instructions for the battery changing as well. Btw. the original batteries are connected with (narrow) pins. I bought the same batteries as you intend, but had a tough time to cut the pads to “shape”. I am curious how you will solve the problem.

    Stanky -

    Thanks for guide. Funny is, that in my machine are only two these batteries:) Surprise. They seems to be ready. Problem of slow motion must be different.

    I have a question for blade installation. The two spring pins must be installed into the plastic small holes or in holes directly in steel blade? There is big difference between pushing power and motor power transmission then.

    Jan Kapal -

  3. UqtZxvtIDUxnIF1g
    UqtZxvtIDUxnIF1g
    tFvD3ObDDcxLuYUI
    qAiMiBnVpidVBU6V

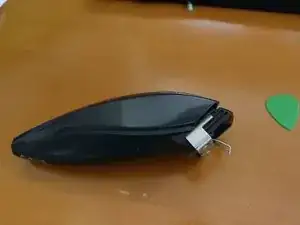

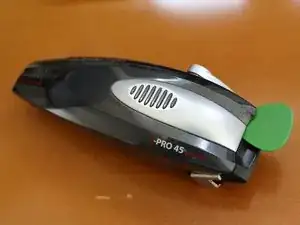

    • Öffne behutsam das Gehäuse.

  4. RRd34btFCupdyGKM
    RRd34btFCupdyGKM
    hHVufoOdVUMDQBZh

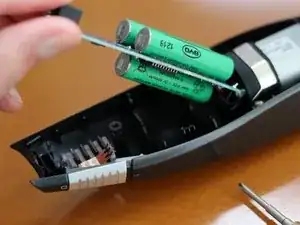

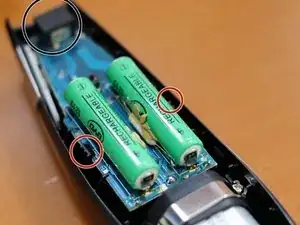

    • Löse die Rasten, mit denen die Leiterplatte befestigt ist.

    • Hebe die Leiterplatte an, beginne am unteren Ende.

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

Stanky

Mitglied seit: 08/07/17

1268 Reputation

14 Kommentare

@fuss did you succeed?

Stanky -

I haven’t bought the batteries yet. They were overpriced in my region (with shipping costs). For now, I use the shaver with leads connected.

Fuss -

Use low self-discharge NiMHs and it will make you angry many years.

Design of this cutter is faulty - it tugs your hair when you try to cut too much or too fast.

Leszek J -

Personally, I have been using this hair clipper for many years and it works perfectly well. Today I have to replace the battery. Can anyone tell me what the battery model is and if I need to use a soldering iron to replace it?

JulienCharb -

It is mentioned above:

3x AAA 1.2V batteries with U-lips are required to be soldered onto the motherboard.

So yes, a soldering iron is required, and the battery must have lips (i.e. not the standard AAA batteries you can find in any shop).

Fuss -

Thanks @fuss for your answer and for this additional information :)

JulienCharb -

So it needs a soldering iron…

So bad you don't show all the manipulation.

It's the principal difficulty I think, all the disassembly is almost nothing, you should have made a tutorial mainly for the battery replacement.

Thank you.

-zoave - -

Just disassembled mine BaByliss Pro 45, and what a surprise - it has only 2 batteries...)

Juris Romanovskis -

Here's a YT video for the soldering part. https://www.youtube.com/watch?v=oh-QY6KT...

john763745 -

Thank you, just what I needed to complete this task! 👍

Martin Johansen -

I must admitt, I am a little overstrained by changing the batteries... The old batteries are glued on the board with hot glue and some components are glueded to them too. How you guys handel this? Heating the board with hot air while soldering out the batteries? (at what temperature?) Cutting the lips and removing the hot batteries before unsoldering the rest of the lips? But there is hardly any room for cutting. Perhaps with a dremel and a cutting disc?

Thanks for any advice :)

Sokkel

Sokkel -

Can someone tell the value of the NTC glued to battery 1?

Unfortunately mine is broken. Probably has been from the start, the way it looks like but I'd like to replace it.

shin10 -

ریش تراش من موتورش خیلی کند میچرخه موتور را جداگانه امتحان کردم درست است ولی داخل مدار بسیار ضعیفه مشکل از کجاست؟

Mahdi Hashemi -

Indeed, the AAA battery with tabs is much more expensive than the normal AAA you can get at 5€ for 4 in the supermarket. And then I thought of my TV hero from the 80's: MacGyver. Surely he could solve anything with a paper clip. And I managed to solder pieces of paperclip on the + and - pole. You just have to use a narrow file to file the paperclip, plus and minus a bit so the solder sticks easier. Greetings from Gunnar W from Belgium.
