Cobra MR HH350 FLT Screen Replacement

Geschrieben von: Rajahn Lewis
  • Kommentare: 1
Cobra MR HH350 FLT Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

8 Minuten

Einleitung

Here is your quick guide to removing the screen to your Cobra MR HH350 FLT radio.

  1. MEOZAAATSUfUf2WC

    • Remove the 11mm screw at the bottom of the radio with a #4 flathead screwdriver.

  2. OJxnOVrBriVvUekF

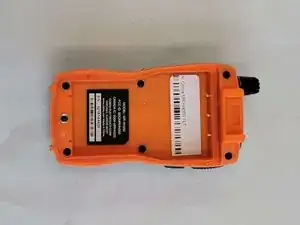

    • Remove the battery from the radio.

  3. XXOd1kafqKnUSYl2
    XXOd1kafqKnUSYl2
    KZmXKgBPKRwcoUes

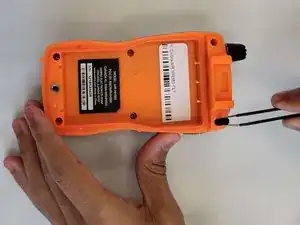

    • Remove the 6 rubber stoppers using tweezers to reveal screws.

  4. 6Cg3F1IsAMSwA3na

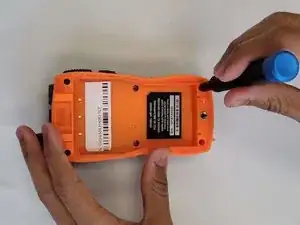

    • Remove the 6 10mm screws that were behind the rubber stoppers with a #0 Phillips screwdriver.

  5. ifPe1uhhZVyBdRGV

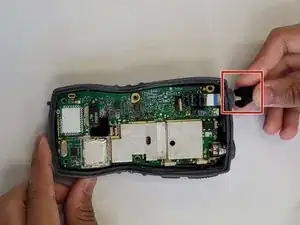

    • Remove the cover to expose the motherboard.

    • Pull off the power nob at the top of the radio.

  6. fbS42caFAGBfWd5X
    fbS42caFAGBfWd5X
    OCR3NagMCwZkNraZ

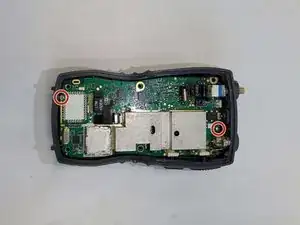

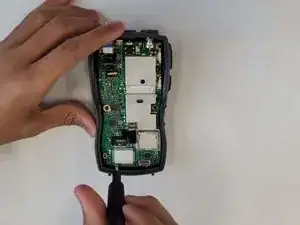

    • Remove the 2 6mm screws on the motherboard with a #0 Phillips screwdriver.

    Hi, what is in this two holes on the metal cases? Is it some king of tune? Or switch?

    Martin -

  7. XDKihZZHYV6VifeN

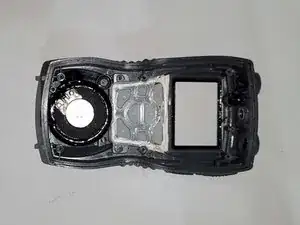

    • Remove the motherboard.

  8. LWFsoAk116MaZHuU
    LWFsoAk116MaZHuU
    tKjIdegJyjf5SYa4

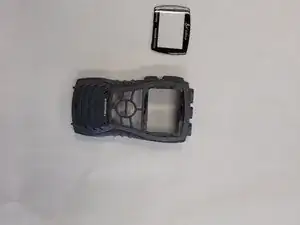

    • Now that the motherboard is gone, the back of the screen is now accessible.

    • To remove the screen, you need to use the Jimmy in the IFIXIT tool kit. It may take some time due to the epoxy used to keep water from entering the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
