HP Envy 23-d060qd TouchSmart Back Panel Replacement

Geschrieben von: Zachary Dicks
  • Kommentare: 1
HP Envy 23-d060qd TouchSmart Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

  1. HHdGbQZls1tNliKW

    • Use your hands to unclip the plastic snaps on the back panel of the device.

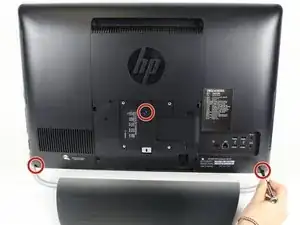

  2. SeTZ4rGMyEEAMq4g

    • Remove the three 11.5mm PH2 screws from the back panel.

    • The screws will not fall out of the back panel, but they will unscrew to release the back panel.

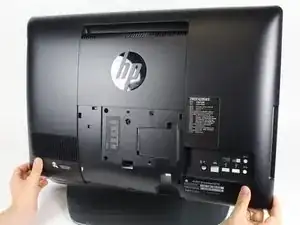

  3. AoMMpGYbbdpOjF2O

    • Now, take the back panel off by pulling at it gently with your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
