HP Envy 5660 Printhead Replacement

Geschrieben von: Ryan Steakley
  • Kommentare: 5
HP Envy 5660 Printhead Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

25 - 45 Minuten

Einleitung

The print head of the HP Envy 5660 is the piece that puts the ink onto the paper inserted into the printer. This guide will go over the replacement of the print head.

  1. yrB6JmJdqXRk4bgO

    • Open the printer so that the underside of the scanner is showing.

  2. OFAaTmQSHEr6ecaA

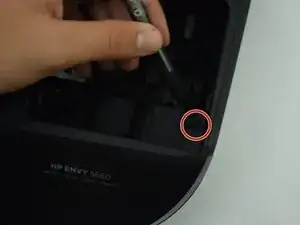

    • Unscrew the black 11.5 mm screw closest to the front right corner using a T10 screw bit.

  3. CtxY2FEautJI5h13

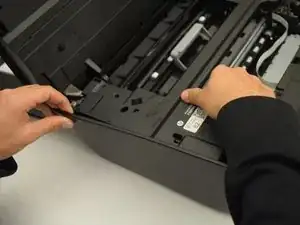

    • Remove right side of the printer using a plastic opening tool or metal spudger.

    This is the wrong side of the printer. This grants access to a PCB and ribbon cables.

    Thomas John -

  4. RBePICL3KVKDjrRj

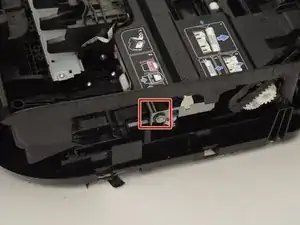

    • Remove spring from the side of the print head rail using a metal spudger.

    And remove the E clip. Your instructions come up short.

    Thomas John -

  5. CDlbsb3BxsgFVA6J
    CDlbsb3BxsgFVA6J
    jnSmtbvnkYwsZnub

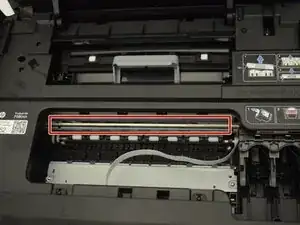

    • Push the metal rail the print head rests on inwards to remove it from its bearings.

    You need to remove the E clip first.

    Thomas John -

  6. WBM1eCdqjcDqrMXn

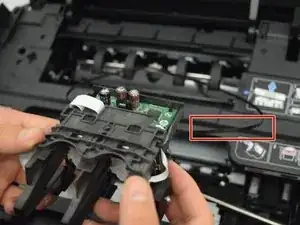

    • Remove the belt from the back of the print head using a metal spudger.

    One needs to remove the print head from the drive gears. These are located under the plastic cover in the background.

    Still zero mention of a ribbon cable.

    Thomas John -

  7. XhL4EWrRZqnlHZbR

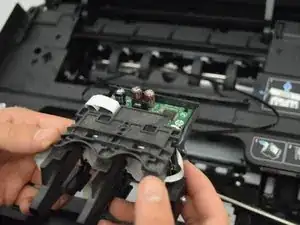

    • Remove the print head from the metal rail by sliding it off the rail.

Abschluss

To reassemble your device, follow these instructions in reverse order.
