Holy Stone HS720E Camera Replacement

Geschrieben von: James Ducie
  • Kommentare: 0
Holy Stone HS720E Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

If the camera to your Holy Stone HS720E drone has stopped working, here is a guide on how to access the part from the top of the drone.

  1. 3fjOKoUEQ3kDOKQ2
    3fjOKoUEQ3kDOKQ2
    sXo1SWivbWCQkNbR

    • Flip the drone upside down.

  2. LGwHknDxdl2RXvne
    LGwHknDxdl2RXvne
    cLdRG2svGbMAIVTp

    • Press and hold the button on top of the battery.

  3. xe5AC2aIGn4DMTDx
    xe5AC2aIGn4DMTDx
    LEhqioXQjUfPVsbN

    • While still holding the button down, slide the battery out towards yourself.

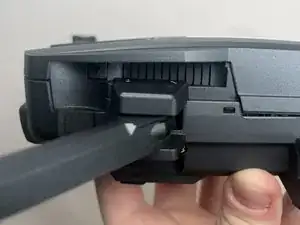

  4. 6F5t3cEBOglQqFSa
    6F5t3cEBOglQqFSa
    JKCXK2liGWIhXedU

    • Remove the screws from both the left and right side of the drone using a Phillips #1 screwdriver.

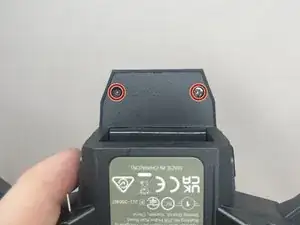

  5. fDfOAbPICCOUWJwV

    • Remove the two screws using a Phillips #1 screwdriver.

  6. 5mXVXk3VUYoIVnoE

    • Using your hand, gently remove the top of the drone.

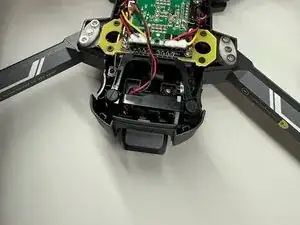

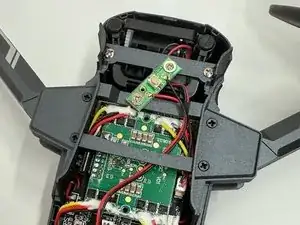

  7. LSQI1CMIcGcqFGc5
    LSQI1CMIcGcqFGc5
    SFBIHGL2kVBkKj6x

    • Remove the screws from the lower body of the drone using a Phillips #1 screwdriver.

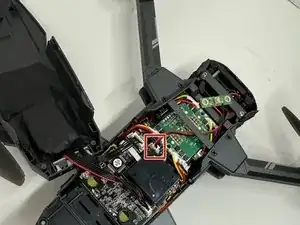

  8. sME1ZIieHAIZaFma
    sME1ZIieHAIZaFma
    cYSXRU6tnTgOCYKX

    • Unplug the wire connected to the motherboard and remove the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
