Kindle 10 Battery Replacement

Geschrieben von: hzheng2
  • Kommentare: 0
Kindle 10 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

If you discover any issues such as quickly draining battery, freezing, overheating, or charging problems, this could indicate that you need to replace your battery. Through using this guide, you can learn the proper way to conduct a battery replacement for the Kindle 10.

  1. W6EEPkSZGuMdTCvN
    W6EEPkSZGuMdTCvN
    DSMrJ6S5fdULH2sN

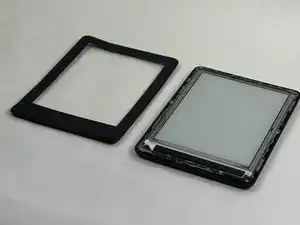

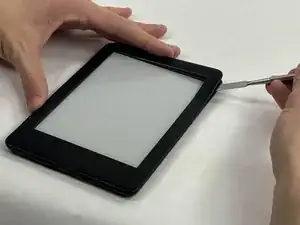

    • Gently use a metal spudger to pry, twist, and lift the bezel away from the display.

  2. DuRcOBGEuHtCjxd1

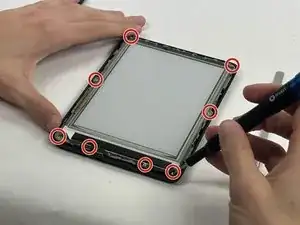

    • Remove the eight 2.6 mm screws using a T5 Torx screwdriver.

  3. O3rITMCZUjEQGerT
    O3rITMCZUjEQGerT
    Y2F3YmaQAEdHgKGw

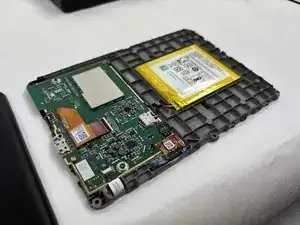

    • Use the metal spudger to gently lift the screen out of the back frame.

  4. oDGLN5KePUh14rkh

    • Detach the battery connector from the motherboard.

    • The battery pack may be glued on to the gray plastic frame. Take care when prying it out not to rip the battery, since it is made of a lithium polymer which is flammable and deforms easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
