Motorola One Action Akku tauschen

Geschrieben von: Ferre Vekemans
  • Kommentare: 12
Motorola One Action Akku tauschen

Schwierigkeitsgrad

Mittel

Schritte

5

Zeitaufwand

30 Minuten

Einleitung

  1. KxWZNmqSHCNSWYbs

    • Verwende ein Öffnungswerkzeug von iFixit, damit dein Gerät nicht beschädigt wird.

    • Die rote Linie markiert die Naht, heble an ihr rund um das Gerät herum.

    • Weiche den Kleber mit einem Haartrockner oder einem Heißluftgebläse auf, wenn das nötig ist.

    Mine was super glued down! It took a lot of patience to get the case open. Didn't break anything. Hope there is still enough 'stick' to hold it back together again. Would be nice if it had clips too.

    Jim Thorne -

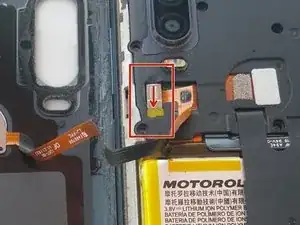

  2. 5EFFj5JtvExWp5vo

    • Löse die kleine gelbe Lasche mit einem kleinen Flachschraubendreher ab.

    • Schiebe die Metallabschirmung nach unten, bis sie frei kommt. Entferne sie dann.

    I was a bit confused by the description "peel away the yellow tab". It was more of little plastic brick thingy that has to be completely yanked out, then you can slide the metal shield.

    gottfried -

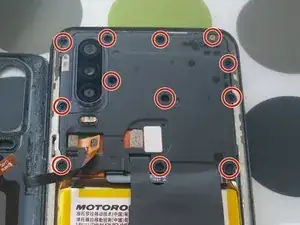

  3. ej3aHtG3UUYGJOXR

    • Drehe alle Schrauben an der oberen Abdeckung heraus.

    I had one 'hidden' screw. The screw beside the cameras on the inside was under tape. If not for this picture I would never have found it. I sliced a slot in the tape to access the screw and just put it back over when I was done. Thank you for the pictures!!!

    Jim Thorne -

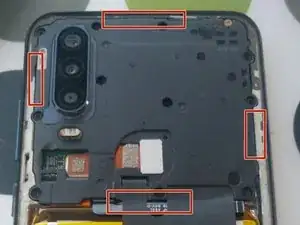

  4. LgWa5OgFgJZbLL5w

    • Löse die obere Abdeckung mit einem kleinen Flachschraubendreher.

    • Sie wird an den rot markierten Stellen von kleinen Clips festgehalten.

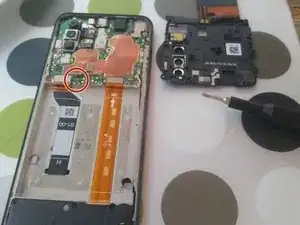

  5. brPjsJ6wHnKqcGDE

    • Trenne das Akkukabel an der rot markierten Stelle ab und ziehe den Akku vorsichtig heraus.

    • Nimm ein Hebelwerkzeug (es darf nicht metallisch sein) und hebe damit die Ecken hoch. Weiche den Kleber vorher mit Wärme auf.

    • Arbeite vorsichtig, achte darauf, dass der Akku nicht zu stark verbogen wird und kaputt geht.

    For me it wasn't quite as simple as "pull the battery out". The battery was glued down rather well and I ended up piercing the battery trying to pry it off. THIS IS VERY DANGEROUS! THE BATTERY CAN EXPLODE!

    My advice: Get a non-metal prying tool to pull up one of the battery corners then start applying heat (e.g. heat gun or blow dryer). Don't stick the tool farther in, just pry up the edge a bit more every 5 mins or so. You don't want to pierce the battery or scratch up the cable underneath. This part requires patience.

    Martin K -

    Mine wasn't really glued down that hard, but thanks for the heads-up, I will update the guide

    Ferre Vekemans -

    In case it helps:

    My phone Motorola One Action stopped charging. On connecting the charger nothing happened. On pressing the power button a 0% charge sign appeared.

    I just opened the case, disconnected the battery, and connected it back. It works again, without replacing the part.

    Thanks for the tutorial, very useful to open the case and do the thing :)

    Cheers.

    Salva -

    It was more like 30 to 45 minutes for me, but I'm no pro. Just be very, very careful. Better to take a half hour longer and not break anything. Thank you so much for the tutorial!

    Jim Thorne -

    Thanks very much for the tutorial. Like Jim said took about 30 minutes. Have to be very very careful with the battery and take your time.

    Bill Garms -

    I also was getting 0% and not able to charge.

    Opened it up and the battery connector was loose. Reconnected and now working fine.

    Thanks for the disassembly steps

    Richard Lacasse -

    No worries guys, glad I could help ;)

    Ferre Vekemans -

    I have order a battery because mine is not keep charging and the battery is swollen. I have a question when assembly the phone do I need any glue and if I do where can I found that?

    /Johan

    Johan Wahlström -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Schritten in umgekehrter Reihenfolge.
