New Nintendo 3DS XL 2015 Kamera tauschen

Geschrieben von: Ryan Butler

Kommentare: 73

New Nintendo 3DS XL 2015 Kamera tauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Diese Anleitung zeigt, wie die Kamera ausgetauscht werden kann.

Werkzeuge

Ersatzteile

New Nintendo 3DS XL Front-Facing Cameras

Schritt 1

Schalte das Gerät aus, du könntest es sonst beschädigen.
Lege den 3DS mit dem Boden nach oben. Entferne Game Card, Ohrhörer, Ladekabel, Stylus und was auch sonst noch verbunden ist.

Schritt 2

Drehe die beiden schwarzen JIS #0 Schrauben auf der Rückseite heraus.
Die Schrauben werden von Unterlegscheiben festgehalten und lassen sich nicht ganz entfernen.

My experience indicates that a JIS #1 is more appropriate here.

John Menden - 09/04/17

Same here, much more appropriate.

Jack Wilson - 27/05/22

Schritt 3

Wenn die Schrauben frei sind kannst du den Rückdeckel lösen.

In order to remove the back cover, slide it down towards you and then pry the cover off.

Jon Fukumoto -

Schritt 4

Der Akku befindet sich links. In der Mitte oben ist eine kleine Lücke, hier kannst du mit einem geeigneten Werkzeug (nicht aus Metall!) hebeln.
Drücke die SD-Karte mit dem Daumennagel ein, bis es klickt und die Karte teilweise herauskommt. Ziehe sie dann ganz heraus.

Also you should remove any SD card at this point

James Grant - 20/06/20

Does this battery work on a NEW 3DS XL model?

Froggy The Frog -

This guide is for the New 3DS XL, which is called the 2015 3DS XL here on iFixit. If you're asking about the 3DS replacement battery advertised in the iFixit store, I believe it works for both new and old models.

BabblingFishes -

The battery is the same and will work on both the new and old models

Jon Fukumoto -

Schritt 5

Entferne die sechs JIS #00 Schrauben entlang des Rands der inneren Abdeckung.

I used a #00 instead it works better for a model form 2016

matthewmccreary10 - 09/10/17

remove the micro Sd card or the shell wont come off and damage the Sd card reader and the connecter

Tyler Callander -

If the J screws are not working, 1.3mm flathead worked for me.

Dale J Peterson -

Schritt 6

An der Oberkante befinden sich zwei Gummiabdeckungen. Ziehe sie vorsichtig mit einer Pinzette heraus. Darunter befinden sich zwei JIS #000 Schrauben die du ebenfalls herausdrehen musst.

Can the rubber bumpers be replaced once you reassemble the 3DS? I'd really hate to have to take them out and never be able to put them back in, if I'm honest...

Taylor Prince - 17/02/16

Yep, we were able to put them back in quite easily after repeated teardowns! If they ever refused to stay in for some reason, you could always put a little bit of something sticky on them. (I use scrapbooking tape on my laptop's bumpers.)

BabblingFishes - 18/02/16

What happens if I strip one of these screws? How hard would into be to remove them?

Thomas Ciavattone - 24/09/17

very hard. i stripped 4 screws on my new 3ds xl and i haven’t been able to get them out. i even bought the precision screw extrator set and nothing the set sucked.

marco martinez - 30/09/17

Schritt 7

Um die Abdeckung abzunehmen musst du sie vorsichtig hoch und weg vom Gelenk heben ( damit die Ohrhörerbuchse frei wird). Schwenke sie dann in Richtung des Gelenks um an die Platinen zu gelangen.
Entferne die Abdeckung noch nicht ganz. Sie ist immer noch mit der Hauptplatine durch empfindliche Flachbandkabel verbunden.

I accidentally opened it and broke the ribbon cable to the r and zr buttons by accident. How do I fix it?

Spider Soda - 03/03/23

You have to replace the whole thing.

Kevin Canto - 27/09/23

Schritt 8

Die beiden Verbinder zu den Flachbandkabel der L/R/ZL/ZR Tasten können mit einer Pinzette gelöst werden. Dann kannst du die Abdeckung ganz entfernen und zur Seite legen.

I discovered that there is enough clearance to slide the Game Cartridge Slot assembly out without removing the motherboard. Just remove the two connectors going to the Cartridge Slot assembly and take out the 3 screws holding it down. There were two screws that look like they are holding the assembly down, but they are only holes through the assembly and don’t actually hold it down. At least on the Pokemon version, New 3DS XL that I had.

Reed Deemer - 26/02/18

Can confirm, it's leagues easier to do it that way than to go to the trouble of removing the entire motherboard, potentially screwing something up in the process. Thank you so much for sharing this alternative method!

João Gaspar -

I third this alternative method for D-pad replacement. To add to the previously noted detail, you also need to disconnect a 3rd connector going to the Cartridge Slot assembly, the one going to the D-pad Board itself which is underneath the Cartridge Slot assembly, which is shown at a later step in this guide. Also, I found I needed to loosen the two screws on the motherboard located nearest the Cartridge Slot assembly in order to get enough clearance to slide the assembly out, as there are two plastic guide stands that hold the assembly in place which the motherboard otherwise holds too tightly to pass. Otherwise, incredibly smooth sailing, minimal connectors removed, and my New 3DS LL import model finally has a working left/right again. Thanks everyone!

Chris St-Louis -

Schritt 9

Klappe den kleinen scharnierartigen Sicherungsbügel am ZIF-Anschluss des Flachbandkabels zum Schiebepad mit einer Pinzette hoch.
[* icon_caution] Vorsicht! Das Kabel ist umgeklappt und geht von der linken Seite in den ZIF-Stecker. Die Verriegelungsklappe des Steckers hebt sich aber von der rechten Seite nach oben. Ein häufiger Fehler ist, dass man versucht, die Klappe auf der gleichen Seite wie das Kabel anzuheben, was den Stecker beschädigen kann.
[* red] Schiebe das Flachbandkabel aus dem Anschluss heraus.
Möglicherweise ist es einfacher, zuerst das Schiebepad abzuschrauben und zu entfernen und dann zu versuchen, das Kabel zu trennen. Du kannst auch bei der Neuinstallation des Schiebepads zuerst das Kabel wieder anschließen und dann wieder einsetzen.

Is not the right side, the switch must be pull to the left, otherwise people will brake it.

DartzSoryu - 07/07/19

I suggest removing the joystick first, swing to left side, then lift up on ZIF connector from the right. You’re able to pull ribbon cable out easier from the left at that point w/o breaking it, as I did.

Dylan Riffel - 16/09/19

Thank you for taking the time to help a fellow gamer, blessings upon you.

Chris Lewis -

How did you fix it? I did the same thing to mine and broke the connector

Kyle Scott -

2nd the removing of the joystick first via the two screws and to be careful handling the plastic washer underneath. It’s coated with a Teflon type material to aid in stick movement. also use a finger nail over tweezers any change you get. A nail is less rigid with natural give and less likely to break plastic latches. If it doesn’t open from the end you expect, stop, and try the other side right away. Be gently.

Shiftnumlock - 23/07/20

Schritt 10

Entferne die beiden 8 mm JIS #000 Schrauben am Schiebepad.

Schritt 11

Hebe das Gehäuse des Schiebepads nach oben und entferne es. Es klemmt vielleicht ein bisschen, sollte aber nicht zu viel Kraft benötigen.

When reinstalling the circle pad casing, you'll need to open up the console and move the circle pad itself around to help the two parts align.

NoScope -

Schritt 12

Finde den goldfarbenen Stecker mit dem roten Kabel oben links auf der Hauptplatine. Ziehe den Stecker vorsichtig mit den Fingern nach oben heraus.
Löse den Verbinder des einzelnen Flachbandkabels mit der Pinzette.
Ziehe keinesfalls an dem roten Kabel.

MDR j'avais vu cette erreur il y a un petit moment... et vous pouvez ajouter, ne pas casser le connecteur comme sur la photo !

Sylvain Delreux - 08/08/17

Use a spudger to remove the red cable plug.

Luis Leon - 26/05/18

Schritt 13

Löse mit der Pinzette vorsichtig die fünf markierten ZIF Verbinder auf der Hauptplatine.
Vorsicht! Diese ZIF Verbinder werden nur eingeklemmt und haben keine Sicherungsbügel. Wenn du die Klappen daran hochhebst, wirst du sie abbrechen. Es kann aber auch sein, dass der oberste Verbinder eine Sicherung hat.
Drei Verbinder haben einen Sicherungsbügel. Klappe ihn hoch und löse die Verbindung.
[* yellow] Dieser Flachbandverbinder kann eine Kunststoffklappe haben, die jedoch anders aussieht. Sie ähnelt der Klappe vom Schiebepad. Um das Kabel zu entfernen, hebe die Klappe auf der gegenüberliegenden Seite des Flachbandkabels vorsichtig nach oben.
Denke beim Zusammenbau daran, die ZIF Bügel wieder zu befestigen.
Auf dem Foto ist der SD Kartenleser entfernt. Das kannst du machen, unbedingt nötig ist es aber nicht.

Hi,

Can you pls inform me the purpose of the topmost red marked ZIF transparent flex cable, I wish to repair my N3DS XL but I am missing this flex cable (for which part is this cable relevant).

Thanks

Khusro - 24/02/17

I don't have the model on me for reference, but if I remember correctly, it's for the bottom screen.

BabblingFishes - 25/02/17

https://www.amazon.com/dp/B078WQY7N9?psc... I believe

Michael Zaeus -

I think it should be noted that the upper most ZIF is incorrectly labelled here as one to remove with tweezers and not to try to open the clamp. I did this recently and have now broken my brand new 3ds. This cable is for the digitizer at the front of the bottom screen. So my touch screen no longer works. I now need to carry out a further repair. Just a heads up.

Simon Lyell - 21/09/17

Accurate. I have to purchase a new digitizer because of this. I tore the conductors in the cable removing it from the ZIF connector. And I’m really very angry that no correction has been made in the almost 9 months since you posted.

Sabs Like Labs - 13/06/18

Sabs Like Labs, can you please share a picture of your connector ? last time I dismounted one I had no problems with this connector but maby there are different versions ?

Guillaume Blas - 14/06/18

Zoe, I don’t suppose you would know what part to search for to replace one of these lock-less friction connectors? Before this article posted I partially broke one of mine thinking it had a lock and would like to replace it. The old one still works but I have to fiddle with it to get a good connection now. The one I broke is nearest to the cartridge socket.

Arie Beugelsdijk - 14/11/17

&&^& all those tutoriel now is just break my new 3ds &&^& you internet

xavier delfini - 28/03/18

I broke my connectors the little gray pieces broke not the touch screen and the joy stick are broken.

mcoughlin625 - 16/06/18

Wish I’d read the comments first, messed up this connection pretty bad too.

bajah - 17/07/18

Glad I read the comments first! The topmost red connector DOES have a clamp you need to flip up to release.

BBW - 24/11/18

I can confirm there are two different versions of the clip. One flips up and just pushes in

thomas rhymestine - 22/01/19

As others have mentioned, the topmost red connector HAS A CLAMP that you need to flip up. It seems like the creator of this guide has a 3ds with older board revision. With multiple people already having brought up the issue, the creator should absolutely update this guide to note the differences as others have already broken their devices due to this guide.

Jason He - 18/12/19

Can confirm that the top most connector has a clamp on mine as well. tore the ribbon cable taking it out and now my bottom screen touch screen is unresponsive. also if you are on this guide looking to replace the game card reader, i also found out after trying to replace mine … You DO NOT need to remove the motherboard in order to replace it !

Harry Appleton - 30/05/20

I swear there isn't a new 3ds XL tutorial out there without wrong steps ending up in destroying your device… Can ifixit confirm they've read the comments and fixed the guide?

Anrei - 01/07/20

Then digitizer absolutely should be updated to note, I also broke the GREY clamp off, when treying to remove, and bought a new one.

I believe this to be the replacement https://www.amazon.com/dp/B078WQY7N9?psc...

Michael Zaeus -

I also ruined the digitizer connector thinking it had a lock (yes, I failed to read the guide correctly). I ordered another motherboard that cost me $100 (ifixit had none in stock, only option on ebay) only to find out it still doesn't work (now for some reason no button nor touchscreen work which doesn't even make sense since they all have different connectors). Please update this guide to point people to just remove the card reader without taking the motherboard off. I could have avoided all this by just replacing the card reader directly.

Aristeu Rozanski -

Wow...ifixit is flat out lying about that top connector. There is no such thing as 2 different board revisions. ALL models have the clamp type connector. If you zoom in you can clearly see the creator has broken off the clamp in the pictures and is misrepresenting it as a friction connector. Unbelievable.

deepakdamodara -

I just broke the not clip connectors thinking they were the ones that flip... Please, how can I fix the connectors?

[deleted] -

I broke the ZIF connectors by lifting them up, now from not being able to enable wifi to completely unusable. PUT THE WARNING BEFORE THE STEP!

If anybody want an actual, clear video breakdown and reassemble, I recommend this video: https://www.youtube.com/watch?v=cUTVR3Ln...

luoisLL - 05/08/24

I had the digitizer problem too; forgot that that connector does have a clamp, and now my digitizer is broken because I tried to reinsert it without unlocking it. I have edited this step so it labels the connector correctly.

Rain Shinotsu -

is the wide ribbon cable the one that connects to the upper screen? my 3ds upper screen is backlit but not displaying images and would really like to be able to use it again, but i don’t know what to do

coalmine -

Schritt 14

Entferne sechs 4 mm JIS #000 Schrauben am Rand der Hauptplatine.

Schritt 15

Schwenke vorsichtig die Hauptplatine um 90° in Richtung des Gelenks um zwei weitere ZIF Verbinder auf der Unterseite der Hauptplatine freizulegen.
Beide haben Sicherungsbügel die hochgeklappt werden müssen. Der längere links ist schwarz, der kürzere rechts weiß. Klappe sie hoch und löse die Verbindung.
Notiere dir die Orientierung der Kabel.

9-15 aren't necessary at all. Its a super easy fix step 16 is sufficient.

Javier Rodriguez - 08/06/16

I think you might be confused; this is a guide for replacing the motherboard, not the entire bottom half of the unit.

BabblingFishes - 09/06/16

The top says this is a guide for the directional pad though

Jimmy - 05/07/16

Oh! Apologies; I didn't realize iFixit duplicated comments for duplicate steps. The message alert directed me to the motherboard replacement guide. Whoops.

Anyway, as I recall, the card reader was more safely and easily removed once the motherboard was out of the way. But I agree that it was likely doable without. Thank you for the input!

BabblingFishes - 26/07/16

What does changing the motherboard do, is it if u like bricked your system or what?

Josh TRW - 15/01/17

Agree here. I’m doing the job to replace the lower screen, and connecting these two cables at the corner was the hardest part of reassembly. I would have done the job without disconnecting these.

BBW - 24/11/18

Getting the ribbons back in can be a challenge but don’t give up. Pull them taught and try to work at an angle that give you the most length.

Shiftnumlock - 23/07/20

Do you know the name of the shorter zif connector, or how to order it? I am talking about the one that is on the botton side of the board,that sometime it is hard to connect the ribbon cable. I think it has like 30 pins. Thank you.

Marcos Cabral - 21/09/20

What is the name or how to order the small zif connectors that is on the bottom side of the board, I think it has like 30 pins. Thank you

Marcos Cabral - 21/09/20

I just want to swap out lcd screens, what steps can I omit? this is the only bottom screen guide online and so many bricks wtf can’t someone make a video like top lcds there are many.

joey grimes - 10/11/20

Update about the commentaries above :

If your goal is to replace something in the top part of the console, steps 9-15 are still necessary as all of the components up there travel through the R hinge to connect to the main board.

- Top screen and Audio/3D cable connect to the back of the motherboard shown at step 15 (screen is the left one shown on the illustration).

- Camera bar connects to the front of the motherboard (step 13, shown as the up-and-rightmost orange connector)

- Wifi antenna connects to the antenna connector (step 12), probably the easiest to replace without disconnecting the motherboard since it doesn't involve rolling up and threading a flat cable through the hinge.

Albert Enstein - 26/06/23

Schritt 16

Entferne die vier Gummistopfen in der Innenseite des Gehäuses mit einem geeigneten Werkzeug.
Unter den Stopfen sind silberne Schrauben.
Entferne die vier Kreuzschlitzschrauben #00.

Is it possible to get the rubber things back on?

Juli232 beutlin -

Schritt 17

Schiebe den äußeren Teil des oberen Gehäuses vom Scharnier an beginnend weg, bis es sich vom inneren Teil trennt.
Dieser Schritt hier wurde abgeändert, die vorherige Beschreibung war riskant. Darin wurde geschrieben, dass du mit einem Spudger um die Kanten herumfahren sollst. Mache das nicht, dadurch könnten die Rasten abreißen.
Das Gehäuse löst sich ab, hebe es dann weg.

In the second picture, you did not list that the removal of two screws were needed, that hold down the boards for the volume/3D controls.

Chelsea LaFleur - 21/03/19

just swype the top case UP side is OK

luyicheng99 - 13/07/19

DO NOT make the same mistake I did. Just slide the top cover forwards, away from the hinge, and it will come off. DO NOT do what this guide says! It will snap the plastic clips that keep the case together and if you don’t want to pay for a full replacement housing it will be impossible to undo!

Foam Rais - 16/03/20

I’d like to echo what Foam Rais mentioned. DO NOT pry the back cover off the display! Simply undo the four screws, close the DS and slide the back cover away from the hinge. If you attempt to pry the back cover off you WILL damage the slide clips that hold it in place!

boatplugs - 24/07/20

I will also echo Foam Rais. DO NOT PRY IT! … unless causing unnecessary damage to your stuff is your kink. (I also went in and edited it, but since I has like no rep, I’m assuming it gets reviewed first before going live)

Russell Haas -

If I’m replacing the top shell, what steps can I skip? It seems like the lower half section with the circle pad and similar bits are unnecessary but I could be wrong.

Trevor Lindsey -

Schritt 18

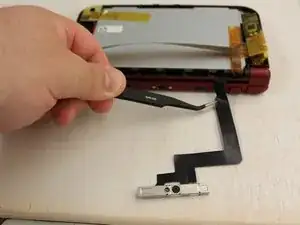

Die Kamera sollte sich leicht herausheben lassen.
Die Kamera ist noch mit einem Kabel angeschlossen. Löse das Kabel von der unteren Hälfte der DS ab.
Zum Lösen des Kabels musst du vorher die Hauptplatine entfernt haben.

Abschluss

Um dein Gerät wieder zusammenbauen, folge den Schritten in umgekehrter Reihenfolge.
