Nintendo Switch Loudspeaker Replacement

Geschrieben von: Blake Klein
  • Kommentare: 0
Nintendo Switch Loudspeaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

40 Minuten - 2 Stunden

Einleitung

Follow this guide to remove the left and right loudspeakers in a Nintendo Switch gaming console.

  1. QdFfEek1D4JOqemf
    QdFfEek1D4JOqemf
    kCTVryoFLDGc4Vpx

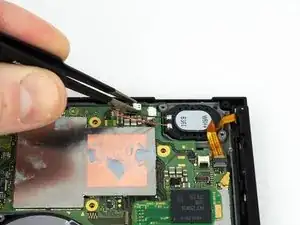

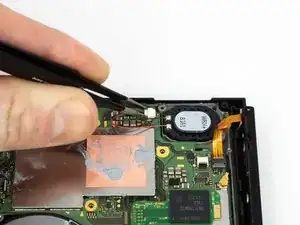

    • Pull the right loudspeaker connector straight out of the socket on the motherboard.

  2. T2ViYMlkiwmrvJCT

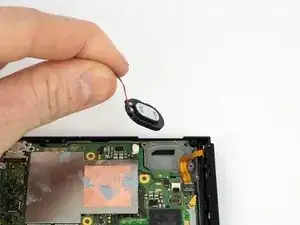

    • Gently lift the loudspeaker up by its wires and pull out at a 45 degree angle to remove.

  3. 1g1RbGEmsSPNZTUI
    1g1RbGEmsSPNZTUI
    psr4QVAeZjvRJnvN

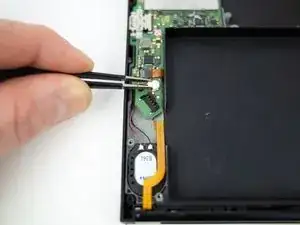

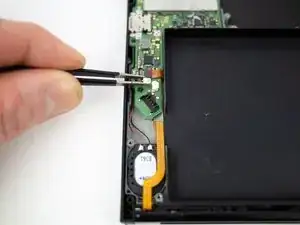

    • Pull the left loudspeaker connector straight out of the socket on the motherboard.

  4. YMyQXKFQNKgXBUhh

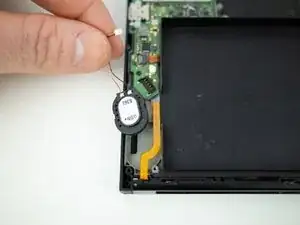

    • Gently lift the loudspeaker up by its wires and pull out at a 45 degree angle to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
