Optiplex 7010 DT RAM Replacement

Geschrieben von: guardian10
  • Kommentare: 0
Optiplex 7010 DT RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

30 Sekunden - 1 Minute

Einleitung

How to replace the RAM in Dell Optiplex 7010 Slim

  1. MHOfmulfyfVgtuGv
    MHOfmulfyfVgtuGv
    TIS6oiYyB6HOQTrI

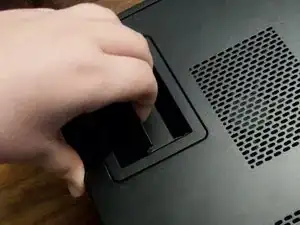

    • Pull the lever on the side of the computer outward.

  2. aSUIdcelKXxfIdCP

    • Pull the side panel away from the rest of the computer.

  3. lKtaxjobOXjm4QYn
    lKtaxjobOXjm4QYn
    5mLTTufIJpGxtQAY

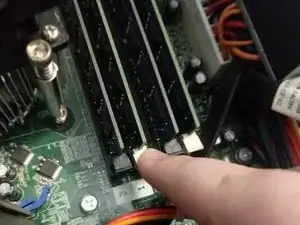

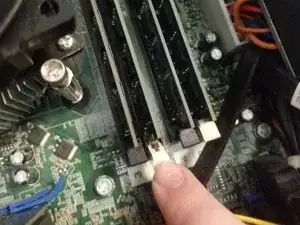

    • Pull the clip holding in the RAM as shown.

  4. M6BCrJXHrYsQaPaN
    M6BCrJXHrYsQaPaN
    KtmC1bN5Zoov2KGg

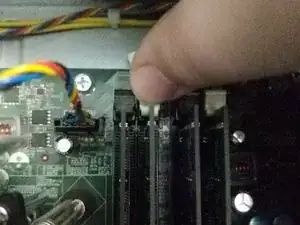

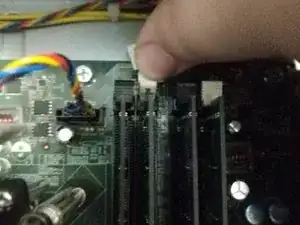

    • Unclip the top RAM latch as shown.

  5. MFsknkLaDqbHAXQE
    MFsknkLaDqbHAXQE
    PIG5sCEuiqOQi2An
    eIpNJr1AUmvFNAP5

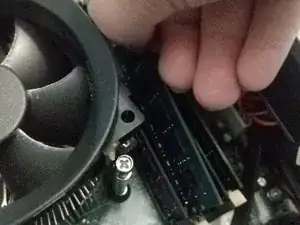

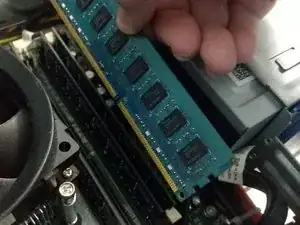

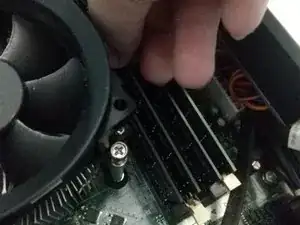

    • Pull RAM stick up and out of the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
