POLAR CADENCE SENSOR BLUETOOTH® SMART Battery replacement

Geschrieben von: Milena Haiges
  • Kommentare: 2
POLAR CADENCE SENSOR BLUETOOTH® SMART Battery replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 30 Minuten

Einleitung

Polar is producing fine gear for athletes giving them the information about their training. Usually only delivered Polar software lacks of updates but with the cadence Sensor same as the speed sensor, Polar managed to make a simple battery change a mess. I’ll show you how to successfully change the battery of the POLAR CADENCE SENSOR BLUETOOTH® SMART.

  1. RuEZUkCuFVgYAehA

    • Removed Cadence Senosor from frame

  2. dYegWtO23Y31IVgp
    dYegWtO23Y31IVgp
    QRZVKrsaVPPM4t3q
    yyPmUJTR2VvTmHfB

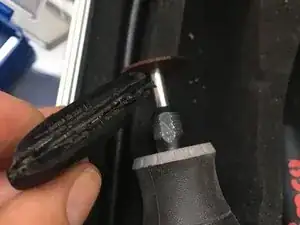

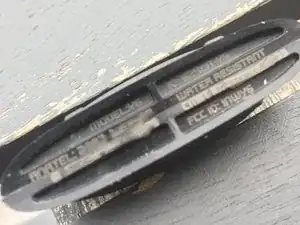

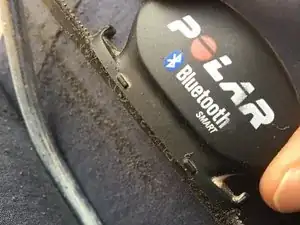

    • Either use hacksaw or Dremel to cut open downside of the sensor. Use the carve of the body for guidance.

  3. W5ijCq12meNUDGxq
    W5ijCq12meNUDGxq
    fjEX1MKQNFPHJqPZ
    DnLpV4xJVvWqtSIj

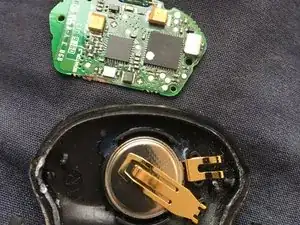

    • After cutting the downside, sensor can easily be opened. Remove circuit board with care not to break the pin. Remove copper clamp with tweezers.

  4. OiVFVTVXrMgJc5Gt

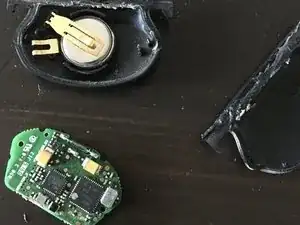

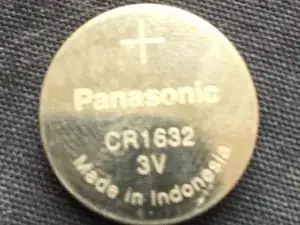

    • Replacing the battery

    • Move magnet close to diode. Flashing indicates successful replacement

  6. 5WSQVJbWpcvEUBIP
    5WSQVJbWpcvEUBIP
    PDmBBxwZEkIiDnVL

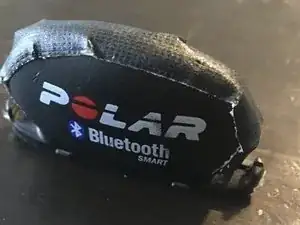

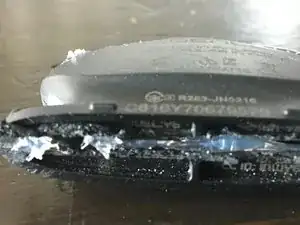

    • Glue it up (maybe nicer than I did)

    • Second functional test with glued chasis

  8. mh4Y1uUlwKJMKFXG

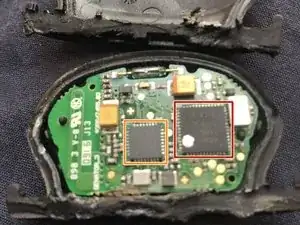

    • Bonus IC Identification:

    • Texas Instruments MSP430F5502 16-Bit Microcontroller w/ 24 KB Flash

    • Nordic Semiconductor nRF8001 Bluetooth Low-Energy Transceiver

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Milena Haiges

Mitglied seit: 06/04/21

2554 Reputation

2 Kommentare

I used a razor blade in a box cutter knife (very carefully!) to gradually cut through the glue in the seam at the bottom of the device. It took many careful, small cuts to finally cut through so I could carefully pry the device open. After replacing the battery and testing it, I glued it back together with a crafting hot glue gun. This type of hot glue is waterproof, but you need to make sure there is no gap around the entire device seam. I was able to make a reasonable seal all around the device, and then I used a vice clamp to hold it together for drying. Next is outdoor testing.
