PlayStation 3 mögliche YLOD Reparatur

Schritt 1

Entferne mit der Spitze eines Spudgers den schwarzen Gummi-Schraubdeckel von der Seite der PS3.
Die Schrauben-Abdeckung kann unter einem Garantie-Aufkleber sein. Dieser Aufkleber wird nach dem Entfernen sein Aussehen ändern und "VOID" (Ungültig) anzeigen.

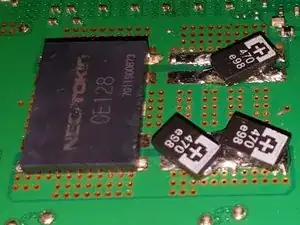

Fake repair. Real fault: How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

Player - 12/12/20

Schritt 2

Entferne die 8,5 mm TR10 Torx Security Schraube von der Abdeckung.

How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

Player - 12/12/20

I need a tork screw bracket / holder A/E/B/E01- MG and security torx screw for a CECH-AO1 do u guys sell these?

vuhx -

Schritt 3

Ziehe die Abdeckung in Richtung des Festplattenschachts, dann hebe sie vom Körper der PS3 ab.

How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

Player - 12/12/20

Schritt 4

Achte auf den kleinen Metallbügel, der lose in der oberen Abdeckung gehalten wird.

That small metal bracket/socket set up looks completely different in the ps3 I'm working on. Model: CECHK01.

Any suggestions?

Marcus - 14/04/16

different in mine too, Model: CECHP01

Link Adrian - 15/05/20

mine does not have one at all

ian.downard01 - 12/11/20

1How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

Player - 12/12/20

Did not find in my CECHH01

Philippe Morin -

I don’t have this bracket, where I can get it ?

Paul Bidny -

Schritt 5

Entferne die folgenden sieben Schrauben:
Sechs 52 mm Kreuzschlitzschrauben
Eine 30 mm Kreuzschlitzschraube

2 more smaller screws (don't know what size...small) just below the top middle screw and top right screw (in the picture). Look for the arrows...

E Goo -

can confirm, might be the backwards compatibles only

Jordan Giese - 19/12/20

This usually isn't needed as you can additionally unclip the card reader by pushing the tabs out while lifting the top, They are located at the bottom of the screw holes with the arrows pointing at them

Kenneth Beerman - 15/04/24

after you remove the screws, you may have to push a tab to take the cover off if you meet resistance on one side of the cover. Here is a link to a video that explains it, saved me lots of trouble:

http://youtu.be/jZgekNsRB-A?t=1m54s

ericksi33 -

Thanks @ericksi33, this really helped me out.

hogurt -

1st attempt, fan loud. Ps3 lasted about 2 wks. 2nd attempt noticed very poor contact between heatsink & cpu,gpu when taking it apart. Research - Found a better way to apply thermal past. I personally disapprove of guide on this. A small bit about the size of a grain of rice in center of cpu is plenty. Clamp the heat sinks back on. Then take it apart & check contact area. Thermal paste should have spread to about the size of a quarter.(more is better. Less then a nickel size is poor contact) possibly weak clamps. Carefully applied pressure onto the cpu & gpu, pressing them into the heatsinks before clamping heatsink clamps on. Achieved greater then quarter sized thermal past spread. Fan silent in comparison & ps3 lasted about a yr. Rarely did I ever hear the fan go to high and get loud after that. About to begin my third fix on this same ps3. One of the first 80g backwards compatible. other then those notes and that this guide was for a different model ps3 (minor differences) I liked this guide. easy to follow.

brettgomes -

Although the battery is described as proprietary, it looks like it is the common CR2032 lithium coin battery that is used in calculators and some computers. I haven't had to replace mine but I suspect under the heatshrink cover is a battery holder which will allow the coin battery to be removed and replaced. Then wrap with electrical tape and reinstall.

RickP -

I tried this with the heatgun and it ruined my PS3. The CPU and GPU are NOW RUINED!!! It did not work for and made things worst!!! I sent it to a place to get reballed and they said the HEATGUN had overheated my processor and killed them!!! So think twice about doing this. Just because it is already broken, DON'T THINK YOU CAN'T MAKE IT WORST!

georgehollyoh - 22/06/14

Why would you try it with a heat gun, no were is it mentioned to do that

Phillip Pereira - 21/12/15

There are 2 additional screws to remove , front center and front left , just behind the already marked screws.

mikentc90 - 18/06/16

As mentioned and I’ll add so detail too. If you have a model with the card readers there are two more small screws that also need to be removed before moving on to the next step.

screech - 04/12/18

2How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

Player - 12/12/20

I felt more comfortable with #2 screwdrivers.

Philippe Morin -

Schritt 6

Hebe die obere Abdeckung von der Hinterkante und drehe sie in Richtung der Vorderseite der PS3.
Entferne die obere Abdeckung.
Hinten rechts in der Ecke befindet sich ein kleiner Plastikhaken. Löse diesen vorsichtig, indem du mit einem Spudger durch die Öffnung dagegen drückst.

Disconnect the memory card ribbon cable.

Tobias Stockmann - 02/05/16

The top would hardly budge on the left back corner and was stuck on the right back corner. There is a plastic hook that needs to be unfastened to lift the top off. It is located in a hole on the top back corner on the right hand side, so the corner straight across the on off button. Just gently push the plastic hook a bit front the rear of the machine with a spudger. It gives easily and the top will be free to lift off after that.

cornellg - 14/07/16

I can confirm on CECHH01.

Philippe Morin -

Some more details here as well.

The newer model without SACD support appears to have added that clip to the back right that needs to be pressed to release the top shell.

If equipped with the card reader you can either have to disconnect the ribbon cable or unclip the reader from the top shell after lifting it up to get finger or tool in there to push clip to side and release reader from top shell. Note: if you failed to remove the card reader screws in the previous step these clips can break.

screech - 04/12/18

The original 60GB with the CF card reader on the front has a button protruding out. This will make it difficult to remove the top. You need to unscrew the memory card reader so it can come out easily.

Brian Caines - 27/04/21

Wow, this needs more attention. This isn't explained in any disassembly guide I've seen. You also need to be cognizant of the card reader cable when you're lifting off the lid.

SolidSonicTH - 22/02/22

I didn't have trouble during disassembly, but reassembly was tough. I loosened the card reader screws by 1 turn and used a small gauge wire to lasso the button and ran it through the CF hole.

Carl Garner -

this really needs to be added to the guide i was struggling with mine trying to figure out why it wouldn't lift up. it was the CF reader button

Doji ← -

But I don't have a spudger

Desi -

Schritt 7

Trenne die Blu-ray-Stromkabel von der Hauptplatine.
Ziehe den Stecker gerade nach oben und aus der Fassung.

I would add… “Be careful taking these type of connectors apart” …. its easy to pull the entire thing off the motherboard and rip pads !

The pulled pads can be replaced but its extra work you don’t need :-) and requires equipment and skill to do and cold require jumper wires.

asears - 13/04/19

Pull the cables gently, the plug will come out of the socket. The plug is encased by the socket.

A K - 17/08/19

That’s also what I did.

Philippe Morin -

My PS3 is the CECHL01 and I had to remove the PSU to get to the disk drive ribbon cable.

Benjamin Burden -

I mistakenly ripped the whole thing out... I do not know where to begin on repairing it.

Tom Gillis -

Schritt 8

Hebe vorsichtig das Blu-ray-Laufwerk von der Kante, die zur Stromversorgung zeigt, an und drehe es weg vom Gehäuse, um den Zugang zu den Flachbandkabeln zu ermöglichen.

Schritt 9

Klappe mit deinem Fingernagel die Halterungen der Flachbandkabel an der Buchse nach oben.
Achte darauf nur an der Halteklappe und nicht an der Fassung selbst zu hebeln.
Ziehe das Flachbandkabel aus der Fassung.
Entferne das Blu-ray-Laufwerk aus der PS3.
Wenn du das Blu-ray Laufwerk austauschst, verwende das Netzkabel vom neuen Laufwerk.

Not all systems look like this, some have tape instead of the flap.

gatewaynomad -

Every system that I have seen has had the ZIF connector, while some had tape over the connection as well. If your connectors are taped, be sure to remove the tape, then proceed with undoing the ZIF connector.

Brett Hartt -

The version 2 systems baseboard PCB started switching to the new narrow 24 pin ZIF header/ribbon and Blu-Ray drive connection.

You should not attempt to detach the taped ribbon cable from the drive end first as described above for the older wide 60 pin ribbons. You must remove the drive and ribbon as one unit to protect the fragile ZIF sockets.

The slimmer fragile ribbon is taped to the drive housing to afford a more secure ZIF connection. The opposite base connection is slightly under the PSU.

continued

shadetree -

From continued

One should firstly remove the PSU: Disconnect the drive power cable as described above. Unscrew the 5 (3-P1 2-P2) PSU mounting screws. Now leaving the power cables attached, lift the PSU off the power baseboard PCB pins and move over slightly to access the baseboard drive cable end ZIF. Release the ZIF latch and slide the entire (drive and ribbon) strait away from the baseboard ZIF to disconnect.

After the complete drive/ribbon removal, you can carefully remove the restraining tape on the bottom of the drive to release the ribbon ZIF, then remove the 24 pin ribbon from the drive logic PCB.

Install in reverse order making sure to add new tape to secure the ribbon to the drive.

shadetree -

I needed to remove the PSO completely to reach the baseboard drive cable end ZIF. To do that disconnect the power and data (I assume) cables and then pull the unit straight up. To longish prongs are heading straight up into it from the baseboard and it is a bit tight, so gently pull until it's clear.

cornellg - 14/07/16

If you are replacing the Blu-ray drive, you must use the same daughterboard that came with your PlayStation 3. The daughterboard is paired to the motherboard, and the Blu-ray drive will not work with a different board. -------------- I understand however my daughterboard is not on the bottom of the blu-ray drive it must be on the inside. Is there any advice out there on how I go about doing this as I am not sure what I am doing???? If someone could post a link or any tips it would be greatly appreciated.

jimmy - 26/01/15

When I received my new drive there was a sheet that said you could keep the old boards but you have to 'flash' them with the ps3's digital information. Currently trying to figure out how.....

Cheffy - 29/05/16

My CECHH01 has its blu-ray drive encased in a shield plate. Only one ribbon cable is visible. (The one we have to disconnect). Mine had some tape over it.

Also, I used a spudger instead of my nails.

Philippe Morin -

Schritt 10

Ziehe das Flachbandkabel gerade nach oben aus seinem Anschluss auf dem Motherboard.

Some PS3 versions do not have a separate control board, since the buttons and LEDS are located on the motherboard (for example, in my PS3 model CECHG04). In this case steps 10, 11 and 13 are not applicable.

markp - 11/01/15

This is also true for my CECHH01. ?‍♂️

Philippe Morin -

Schritt 11

Entferne die zwei 12 mm Kreuzschlitz Schrauben, welche die Kontrollplatine im unteren Gehäuse befestigen.
Entferne die Kontrollplatine inklusive daran hängendem Kabel von der PS3.

Schritt 12

Entferne die folgenden acht Schrauben, welche die Motherboard Einheit im Gehäuse befestigen:
Sieben 12 mm PH2 Kreuzschlitz Schrauben
Eine 30 mm Kreuzschlitz Schraube

On my machine (fat PS3 with no card reader and 2 USB ports), there is no upper right screw to remove.

alansliu - 22/03/17

That 30mm screw is the one lower down under the power cable, not the higher up one with the embossed arrow pointing at it.

James Beegle - 28/07/18

Hey guys, that red and orange you are using are not at all identifiable as separate colors to some of us with colorblindness. I had to get my buddy to tell me which one was orange and which was red. In the future, it would be most helpful if you stuck to contrasting colors. Great guide, thanks for making it!

Aksel Barnes - 25/11/19

Step 17 helps with the 30 mm upper left screw

joshuavivelavida - 02/06/20

For any further vision impaired people trying to follow along, the single 30mm screw is in the top left of the image.

James Beegle -

Voting up the comments about the orange v red colors on the images, I'm surprised that such a simple edit has not been done over the past three+ years.

Palfrus Wyrmrest -

Schritt 13

Entferne den Sicherungsbügel.

Schritt 14

Öffne mit der flachen Seite eines Spudgers die Abdeckung des Festplattengehäuses vom unteren Gehäuse.
Entferne die Abdeckung.

Schritt 15

Hebe die Motherboard Einheit aus dem unteren Gehäuse.

My Ps3 was a little different..

The rear backing plate is connected to the fan shroud beneath the unit that is screwed into the bottom of the case.. And these large chrome pieces attatched to the fan were stuck to the tray that the board is on. Came a part pretty rough, guessing the ps3 got so hot it turned the grease into glue lol

intotec239 - 18/09/15

If you already suspect you may have a slightly different PS3 model to the one pictured here STOP RIGHT NOW! Do not try and lift the motherboard off the lower casing if it is not coming easily. On mine, the cooling fan and heat sinks have extra screws directly into the lower plastic case and you will not be able to lift the motherboard out until after you have done Step 27. So skip this step, continue through the guide, skip 18-23 (you probably don't have a memory card reader). After unscrewing the 4 screws in Step 27, pull hard to separate the motherboard from the heat sinks (they will be attached with thermal paste like a glue). Only then will you be able to access the screws to separate the large fan and heat sinks from the plastic lower case.

Incidentally I totally smashed mine trying to get the lower case off here at step 15 - I broke the screws off, warped the metal on the heat sink and snapped pieces of plastic. But I continued and did the heat gun stuff and it still actually worked!!

Fat Albert - 15/11/16

Schritt 16

Entferne die 7,7 mm Kreuzschlitz Schraube, welche das Erdungskabel mit dem Gehäuse verbindet.

On my PS3 the ground wire(green/yellow) was actually routed under the bolt for the power supply, so I had to remove the power supply before I could removed the AC inlet

jorgebustos2254 -

Schritt 17

Ziehe das Stromkabel etwas weg vom Gehäuse, um an den Stecker zu gelangen.
Während du den Schliessmechanismus zusammendrückst, ziehe das Stromkabel aus dem Anschluss.

Schritt 18

Ziehe das Netzteil von unten nach hinten aus dem Gehäuse. Achte dabei auf Kabel, die du versehentlich mitreissen könntest.

I had to loosen the two screws on the perforated cover to get the ground wire out.

asciimo -

Had to remove 2 screws (the top 2 screws marked in step 25) to get the ground cable out.

deuxphoria -

Like @asciimo and @deuxphoria, I had to loosen the same two screws to get the ground wire out. When you're putting the PS3 back together and you're doing the steps in reverse, it helps to leave those two screws unscrewed during Step 25 and wait until you put the AC inlet back in Step 18.

hogurt -

You can put the 2 screws back in step 25, just put the AC Outlet before you put in the back plate. (Do Step 18 before step 19 when you are going in reverse)

xaviertaylor - 18/08/18

Schritt 19

Öffne mit dem flachen Ende eines Spudgers vorsichtig die Clips an der oberen und unteren Kante der hinteren Abdeckung, während du diese langsam vom Logic Board abhebst.

If going in reverse do this step after step 18, otherwise you will have hard time getting the earth cable routed.

xaviertaylor - 18/08/18

Schritt 20

Entferne die Abdeckung vom Logic Board.

Schritt 21

Entnehme das Lüfterkabel aus der Halterung am Kühlkörper.
Ziehe das Kabel aus dem Anschluss auf der Hauptplatine.
Achte darauf, den Stecker gerade nach oben herauszuziehen.

Schritt 22

Entferne die zwei 9 mm Kreuzschlitz Schrauben, welche den Speicherkartenleser im Gehäuse befestigen.

Only the very first release of the PS3 used to have the memory card reader. Most recent models do not have it (such as my PS3 model CECHG04). In this case just skip steps 22 and 23.

markp - 11/01/15

Also, these screws should be removed in step 5 to prevent breaking the clips that secure the card reader to the top shell.

screech - 04/12/18

Schritt 23

Hebe den Speicherkartenleser soweit an, dass du das Flachbandkabel herausziehen kannst.
Klappe den Bügel hoch, der das Flachbandkabel des Speicherkartenlesers befestigt.
Stelle sicher, dass du nur den Bügel nach oben klappst, nicht den Anschluss an sich.
Ziehe das Flachbandkabel aus dem Anschluss und entferne den Speicherkartenleser.

I have a CECHA01 and the card reader is attached to the top cover. Per comments at step 5, the 2 screws mentioned at step 22 are removed at step 5. The ribbon cable mentioned here in step 23 should be removed at step 5.

Jon Tyre - 22/03/16

If leaving card reader attached to top shell this step should be part of step 6.

screech - 04/12/18

Schritt 24

Ziehe die Stromkabel aus der Vorderseite des Kühlkörpers.
Ziehe den Stecker Richtung Vorderseite der PS3.

Schritt 25

Entferne die fünf 9 mm Kreuzschlitz Schrauben, welche das Netzteil im Gehäuse befestigen.

Schritt 26

Hebe das Netzteil an der vorderen Kante an, um die beiden Stifte freizulegen, die es mit dem Motherboard verbinden.
Entferne das Netzteil.

I had a small black wire taped to the side of my power supply. If you have this - remember to remove the tape, first, or you run the risk of pulling the wire out.

Oliver Clare - 28/07/14

Schritt 27

Entferne die vier 16,5 mm Bundschrauben, welche den Kühlkörper auf der Hauptplatine befestigen.
Entferne die zwei Bügel, die von den Schrauben gehalten wurden, die du gerade entfernt hast.

Schritt 28

Hebe die Motherboard Einheit vom Kühlkörper an.
Der Kühlkörper könnte noch von der Kühlpaste gehalten werden. Sollte dies der Fall sein, sei sehr vorsichtig beim Abziehen des Kühlkörpers. Achte darauf, dass du nicht die Kupferrohre verbiegst.
Achte darauf, dass du eine neue Schicht Kühlpaste aufträgst, wenn du den Kühlkörper wieder einbaust.
Noch nie selber Kühlpaste aufgetragen? Unsere Anleitung zum Auftragen von Kühlpaste macht es dir einfach.
Wenn du gerade dabei bist, die YLOD-Anleitung zu befolgen, achte später darauf, wo genau du sie aufträgst.

so do we apply arctic silver 5 thermal paste to the heat sink pads that attach to the CPU GPU,Or do we only apply thermal paste to the chips /pads CPU GPU ?

David -

In some PS3 versions, such as my PS3 model CECHG04, the heat sink is attached to the lower half of the motherboard shield, so in order to remove the motherboard you have to lift the top cover and detach the motherboard from the heat sink.

markp - 11/01/15

Yeah, on mine (which is the very first revision of the PS3), you have to add a SUPER heavy amount of thermal paste, for it to even make contact. Odd.

Christopher - 05/08/19

Can someone confirm what material the heatsink is made of for those wanting to apply liquid metal (I'm sure as !&&* not taking the risk) but might be of interest to others…

Jjj - 23/10/19

Schritt 29

Hebe die Halteklappe am Kabel des Blu-Ray Laufwerks an.
Achte darauf nur die Klappe, nicht den Sockel selbst anzuheben.
Entferne das Kabel des Blu-Ray Laufwerks.

On my 60GB model, the Blu-ray ribbon cable was very easy to disconnect, but a real pain to re-connect. It's not as easy as pushing the black fap down to secure the ribbon. This YouTube video helped enormously: https://www.youtube.com/watch?v=Zn1pMLGH....

hogurt -

To follow what hogurt said, you have to push down and back a bit with the clip. (Watch the video, it’s good). If the clip bounces right back with resistance, STOP and don’t keep pushing or you will break the clip.

Steven Vallarian - 26/11/20

Schritt 30

Hebe die Halteklappe am Speicherkartenleser an und entferne das Flachbandkabel.

Schritt 31

Hebe die Halteklappe am WiFi/Bluetooth Kabelsockel an.
Ziehe das Kabel heraus.

Missing a step here where you actually remove the cw1-100 board. 4 screws and it comes out.

Steven Vallarian - 26/11/20

What does the black cable?

Robert Brown -

This cable is the antena cable for WiFi and Bluetooth. This cable is used to conduct electric signal between the antena and the wireless network chip integrated to the device's motherboard.

Brendan -

Schritt 32

Löse das Stromversorgungskabel vom Motherboard und lege es beiseite.
Ziehe das Kabel dabei senkrecht nach oben raus aus dem Anschluss.

Schritt 33

Löse das Kabel der PRAM-Batterie vom Motherboard.
Der PRAM Sockel ist empfindlich und bricht leicht aus der Platine. Wenn irgend möglich, halte den Sockel auf dem Motherboard fest.

In the most recent PS3 versions, the PRAM battery is located on the motherboard: remove it before performing the reflow and don’t forget to put it back before starting the re-assembly.

markp - 11/01/15

Schritt 34

Drehe die PRAM-Batterie leicht gegen die Uhr und entferne sie vom Motherboard.

It is quite hard to rotate counterclockwise, but by rotating it slides out, no pulling up is needed. Hard to do by hand, but much easier if you use some flat nose pliers.

jerseyzangel -

Same here. Even with pliers, my PRAM battery was incredibly difficult to remove. When it did finally come loose, part of the black plastic that keeps it secure broke off for me. The whole thing is loose now when I put it back, but still stays in place.

hogurt -

Worked. Took 3 hours to complete.

****NOTES that weren't mentioned here****

1. Heat Gun on processors = zigzag from top left to bottom right - then circle back up to the top left. repeat.

2. No thermal pads available in your area?

I used the same thermal pads that came with the PS3

3. No T-10 security screw driver?

I broke the very first step - I didn't have a t10 security driver and jsut figured I would risk breaking the cover a bit by pulling it straight up - popped right off - then broke the stupid screw right off of it.

4. took 15 minutes to find things to ensure the motherboard we perfectly level.

5. I let the Motherboard sit for exactly 17 minutes and then applied Arctic silver.

6. No Screwtray ?

I used a piece of duct tape, sorta flipped it around so it was a sticky pad to grab all the screws and not let them get unorganized.

I hope I remember to report back how long the system runs until it dies again, which I hear happens fairly quickly after this type of operation.

Good Luck.

infinitist -

mine has a small round tab on the PRAM battery housing that locks it in place. i had to slip the flat end of the spudger between the PRAM battery housing and motherboard cover to release the tab. after that it rotated quite easily with no need for pliers or anything.

jcelkay - 26/06/15

I didn't handle the motherboard correctly and Mistakenly ripped off the wires off PRAM! How can I fix it?

Renata Szczech - 13/03/17

Like jcelkay said, I just needed to use the back end of the spudger on the non-cable side of the PRAM and sort of finesse it a bit. When I did this it became much easier. Getting it back on I had to do the same thing.

Naomi Young - 17/07/17

Schritt 35

Entferne die blaue 8 mm Kreuzschlitz Schraube, die den Rahmen des Laufwerks am Chassis befestigt.

Schritt 36

Schiebe den Rahmen des Laufwerks Richtung Vorderseite des Motherboards.
Entferne das Laufwerk vom Motherboard.

Schritt 37

Entferne die beiden 3,7 mm Kreuzschlitz #0 Schrauben, die das Chassis am Anschluss des Laufwerks befestigen.

The fixit kit doesn’t come with a Phillips head small enough?

William Chance - 10/05/21

I am stuck on step 37. Those screws are REALLY in there and the #1 Phillips is stripping the heads. What are my options/what do you recommend? How have other folks been successful?

Eric Riley -

@ericriley85649 we have a guide on how to remove a stripped screw, I hope that helps: Wie man eine rundgedrehte Schraube entfernt

Sandra Hiller -

Schritt 38

Entferne die beiden 8,3 mm Kreuzschlitz #0 Schrauben, die die beiden Hälften des Motherboards zusammenhalten.

On step 38 what is the thread count on the 8.3mm screws? I'm missing and need to know before I go out to the store.

ericambrose32 - 21/01/17

Schritt 39

Fädle das WiFi/Bluetooth-Flachbandkabel vorsichtig durch die Öffnung in der oberen Motherboardabdeckung.
Enferne die obere Abdeckung.

This step is tricky, because the thermal paste from the chips could act as a ‘semi glue’, so you have to softly try for some minutes…

Roger - 16/09/20

Also, if I understand correctly, once this step is done, you pretty much NEED to have replacement pads at home, because I the old ones might be wrecked. :P Is it true?

Philippe Morin -
