Pokewalker Button Replacement

Geschrieben von: Winni Stuart
  • Kommentare: 1
Pokewalker Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

How to Replace a Cracked or Broken Button on a Pokewalker

  1. nN3jxsSVRcfVToBr

    • Locate the Screw on the Back of the Pokewalker.

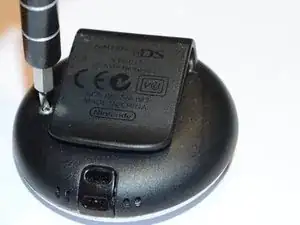

  2. uLiVvSHpVwKxRioh

    • Remove the Screw with a Phillips #0 Screwdriver

    • The screw is attached to the rear case with washers. don't worry about losing it.

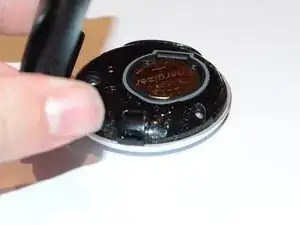

  3. bAdE2DuE2K2MLKCZ

    • Remove the Rear Cover from the Device

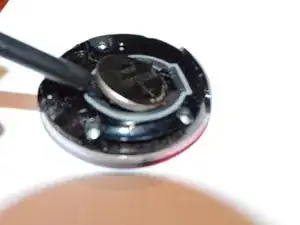

  4. XAgEw1SA3odXKZ2E

    • Use the flat end of a Spudger to Remove the Battery

    • Locate the 4 Screws Around the Device

    • Remove all 4 screws with a Y0 Triwing Screwdriver

    • Separate the 2 halves of the Device

    • Do not Separate Completely as the Display is Still Connected by a Ribbon Cable

    • Use a Spudger to Flip the Latch holding the ribbon cable in place and use Tweezers to Pull it out

    • Do not use Excessive force when reinserting the cable, because ribbon cables are fragile

    • Remove the Rubber-button thingy from the upper case

    • I have no idea what that thing is, edit this guide if you do.

    I think the rubber thingy is called a rubber gasket

    Darren Woloshyn -

    • Remove the 3 Plastic Buttons from the Case

    • It helps that the buttons only go in one way, makes it easier to reassemble

Abschluss

To reassemble your device, follow these instructions in reverse order.
