Power Mac G4 Quicksilver Hard Drive Assembly Replacement

Geschrieben von: Ryan Bylard
  • Kommentare: 0
Power Mac G4 Quicksilver Hard Drive Assembly Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

This is meant to be a private prereq guide.

  1. siQhN4cavRPNHbEs

    • The hard drive is located in the back right corner of the case.

  2. jptKb6hb5eGAswAI

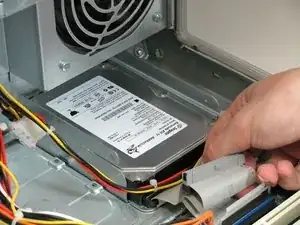

    • Remove the flat ribbon cable by pulling with substantial force.

  3. lFMtgQCKOKYhutEx

    • Remove the screw holding the hard drive to the computer.

  4. ggAxXEKMaGCPphft

    • Pull the drive up and out of the computer.

  5. Pqm6vHpAonPMHwMM

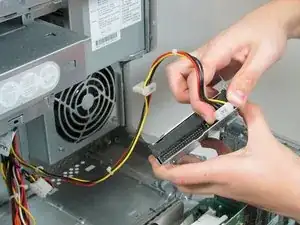

    • Remove the multicolored cable by grasping the plastic connector on either side and pulling with substantial force.

Abschluss

To reassemble your device, follow these instructions in reverse order.
