Razer Barracuda X Power Button Replacement

Geschrieben von: Victor Ruiz
  • Kommentare: 1
Razer Barracuda X Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

This guide will help you change the power buttons if your buttons either break or get stuck.

Be sure to have device off before beginning.

  1. 43xAJdOAfgjk6FuJ

    • Unplug the microphone from the headset.

  2. Vag12VFBnHIFTQGW

    • Remove the old cushion by pulling it off from the edge and out from the grooves.

  3. jHWLaZocZpdOOSCS

    • Continue to pull the cushion away from the speaker until the cushion is fully separated.

  4. m64fQOAYR5AsWDUB

    • Remove four 6 mm Phillips #1 screws that secure the cover.

    • Lift off the cover.

  5. SIbdP2LTaMRkVDt1

    • Remove the single 6 mm Phillips screws that secures the volume control knob.

  6. aOeuVvAUifIDiVdh

    • Remove the volume control knob.

  7. VIMFkAlIWMQxVIK5

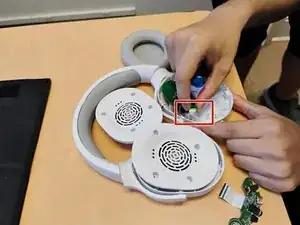

    • Remove the button by pulling them from the casing with your hands.

Abschluss

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
