Saitek X52 Pro öffnen

Geschrieben von: Cri Cri
  • Kommentare: 28
Saitek X52 Pro öffnen

Schwierigkeitsgrad

Mittel

Schritte

5

Zeitaufwand

15 - 25 Minuten

Einleitung

Saitek X52 Pro ist ein großartiger Controller für Flugsimulatoren, ganz ohne Mucken ist er aber auch nicht.

Manchmal versagt die Auslösetaste. Deswegen muss der Controller noch nicht entsorgt werden, mit etwas Geduld kannst du das selbst reparieren.

  1. EWN55N1cmxw35dPl

    • Geduld :)

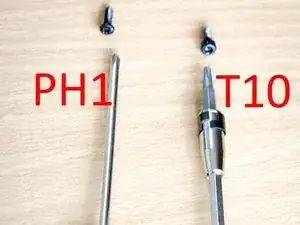

    • Du brauchst zwei kleine Schraubendreher. Einen mit Phillips PH1 (Kreuzschlitz) und einen mit Torx T10 (Stern).

    • Eine Auflistung der Schraubenkopfarten findest du hier.

  2. 3ClyAYcElflwCNHK
    3ClyAYcElflwCNHK
    YTRHsaVl2UT6PWHC
    YX1Y2aHVpKYKFpKg

    • Bitte nimm dir einen Moment Zeit und sieh dir genau an, wie der Joystick zusammengebaut ist und welche Teile entfernt werden können. Ich empfehle, vor der Demontage ein paar Fotos zu machen.

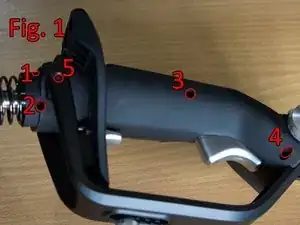

    • Löse mit dem Kreuzschlitzschraubendreher die Schrauben Nr. 1 bis Nr. 4 in Abb. 1.

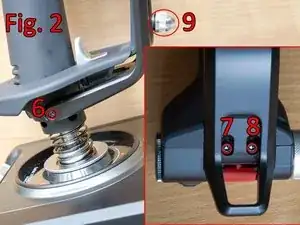

    • Benutze einen Torx T10 Schraubendreher, um die Schrauben Nr. 5 (Abb. 1), Nr. 6, Nr. 7 und Nr. 8 (Abb. 2) zu lösen.

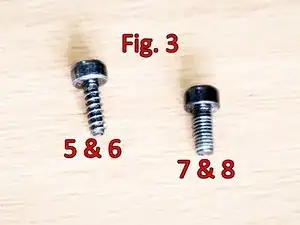

    • Die Schrauben 5 und 6 haben ein gröberes Gewinde, als die Schrauben 7 und 8, obwohl die Köpfe gleich sind. Passe daher gut auf, wenn du sie wieder anschraubst (Abb. 3).

    • Löse mit der Hand die Schraube Nr. 9 (Abb. 2). Bitte beachte, dass diese Schraube nicht vollständig entfernt werden kann, dies ist aber auch nicht notwendig.

    I think #5 and #6 show the same. #6 should be opposite of #5.

    Tom George -

  3. JQHFskjWkIZ6rt4O
    JQHFskjWkIZ6rt4O
    QRPnDRDHORSElK5q

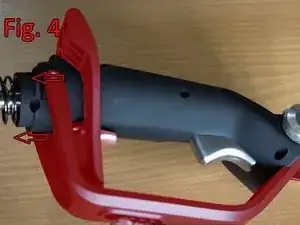

    • Entferne vorsichtig die Kunststoffhalterung und die Halterung, die den „Pinkie-Trigger“ hält, indem du sie in Richtung des Triggers drückst (Abb. 4).

    • Erzwinge das Entfernen NICHT mit Gewalt, da sie sonst zerbrechen kann.

    • Achte auch darauf, den "Pinkie"-Trigger nicht zu beschädigen!

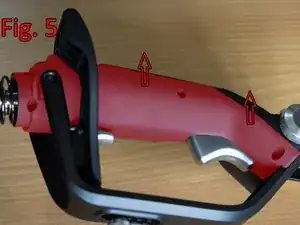

    • Entferne die Stickabdeckung, um die Kontakte und die Verkabelung freizulegen (Abb. 5).

    Under a small plastic cap, on the adjustment knob for the handrest. Is a REVERSE threaded phillips head screw. Removing this, allows you to remove the adjustment knob. this permits the handle being removed from the hand rest. Which then allows you to remove the 3 phillips head screws holding the pinkie switch to the handrest. Reducing the risk of damaging the wires.

    Christopher Hamer -

  4. gt2qqeVkDAyZkUaV

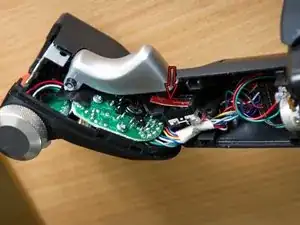

    • Beachte die kleine Metallplatte.

    • Biege sie von der Mitte aus nur ein wenig, sodass beim Drücken des Triggers tatsächlich der kleine blaue Schalter im Inneren des Joysticks betätigt wird.

    • Teste den Trigger, bevor du die Kunststoffabdeckung wieder anbringst

    • Denke beim Eindrehen der Schrauben daran, dass die Schrauben Nr.5 und Nr.6 an die Unterseite und die Schrauben Nr.7 und Nr.8 an die Oberseite gehören.

    Dont bend the metal plate, adjust the plastic pushing out from inside the triggers by tightening down the two small screws, or loosen them as needed

    Adrian Ball -

    • Hinweis: Im Inneren des Abzugs befinden sich zwei Schrauben, die verwendet werden können, anstatt den Stift, der auf die Metallplatte drückt, entweder aus- oder einzufahren. Versuche zunächst, dies anzupassen.

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Schritten in umgekehrter Reihenfolge.
