Samsung Eternity Camera Replacement

Geschrieben von: Michelle Haddock
  • Kommentare: 0
Samsung Eternity Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

You will need to find a clean area to work in and have the necessary tools. Follow this guide to gain access to your cellphone's camera module.

    • Remove the back battery cover.

  2. DFVssrCsaalAmneL

    • Using a nylon spudger, remove the phone's battery.

  3. TwnBImxVHmGkTgel

    • Remove six (4.28 x 1.25)mm screws using the Phillips #00 screwdriver.

  4. RRsRo2iNI43NWHNY
    RRsRo2iNI43NWHNY
    p3CxvlR2V3bsgrqG

    • Use a nylon spudger to gently pry the silver plastic back plate from the body of the phone.

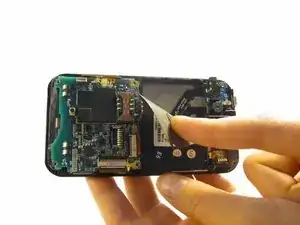

  5. 3TGVg1fBdWSCB6GL

    • Peel off the Identification sticker.

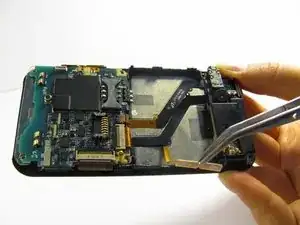

  6. p6mkWHsEtFxHOLQ6

    • Peel the button sensor on the side of the motherboard off of the case.

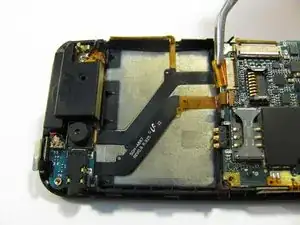

  7. Ya3sJCa1v4RwQZtl

    • Pop the black hinged-release lever toward its ribbon, then slide the ribbon out.

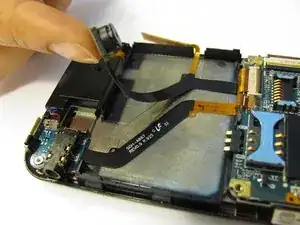

  8. pADWXjaS3HJGixJl

    • Peel up the camera attachment.

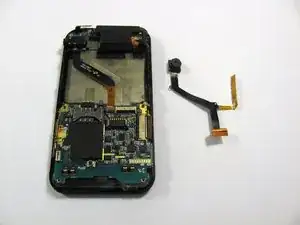

  9. pYpphPXcTPW2CqTN

    • You will now be able to replace the Camera component with a new part.

Abschluss

To reassemble your device, follow these instructions in reverse order.
