Samsung Galaxy J3 Headphone Jack Replacement

Geschrieben von: Makayla Williams
  • Kommentare: 1
Samsung Galaxy J3 Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Sometimes the headphone jack can get extremely dirty or get something lodged in it. This guide will show you how to remove and replace the headphone jack.

  1. j5JfZaGIhBA4pNaV

    • Separate the back casing from the phone by carefully using your fingers to pry it apart.

  2. yWng3CRGFhLoSsJT

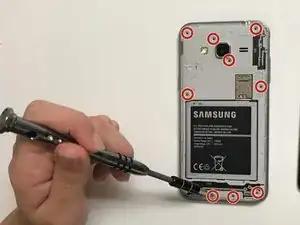

    • Remove all 11 screws by using the J000 phillips

    i can only see 10 screws, where is the 11th?

    George Panagiotakopoulos -

  3. 3VuNqh5bNoHQSnny

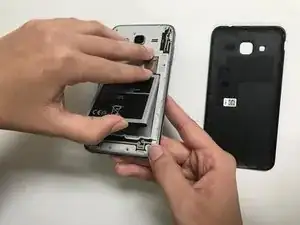

    • Remove the battery by gripping on and pulling up.

  4. HAsiG1Cjgd66kSGk
    HAsiG1Cjgd66kSGk
    BnEj2atoJeGSI3uu

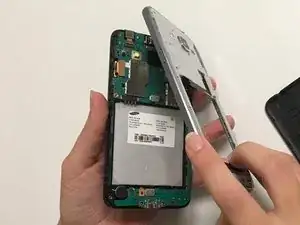

    • Use the flat side of the metal spudger to remove the middle frame bezel.

    • Do not use a wrenching motion while performing this step. The screen may crack.

  5. BFsXnErN3nYE42YQ
    BFsXnErN3nYE42YQ
    ZKpKY4blrJIO3pbM

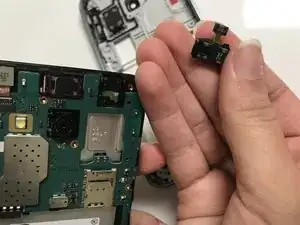

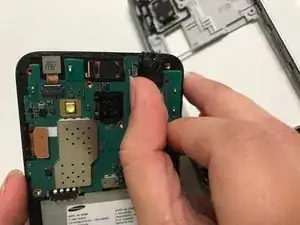

    • Detach the headphone jack from the motherboard plug-in.

    • Replace the headphone jack.

Abschluss

To reassemble your device, follow these instructions in reverse.
