Samsung Galaxy Note5 USB Platine/LCD/Home Button Austausch

Geschrieben von: Sophia
  • Kommentare: 37
Samsung Galaxy Note5 USB Platine/LCD/Home Button Austausch

Schwierigkeitsgrad

Mittel

Schritte

9

Zeitaufwand

1 - 2 Stunden

Einleitung

Der Austausch von USB Platine, LCD und Home Button geschieht durch fast die gleichen Schritte.m, so kannst du alles auf ein Mal erledigen.

  1. yie4sNdOUCaXmTxc
    yie4sNdOUCaXmTxc
    US1hElEI1gGGsLc4

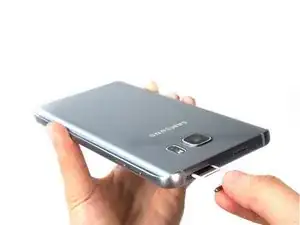

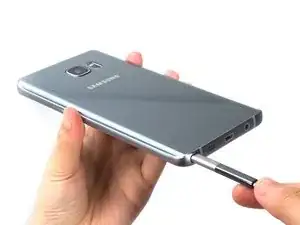

    • Entferne das SIM-Kartenfach und den S Pen,

  2. Z6BQIPSM4WNgUDIP
    Z6BQIPSM4WNgUDIP
    KP6ky4A4OQtHWZIH
    Nd5QZ4aVDteLDEOX

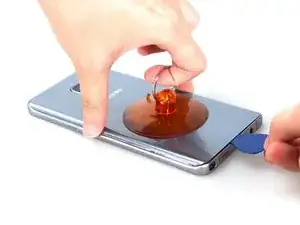

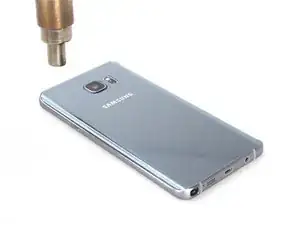

    • Entferne die Rückseite.

  3. YDEsePDHxlvL3bN5
    YDEsePDHxlvL3bN5
    wyEDnaIa3MnlX3XZ
    gQ2oxVLEOIaAUOyW

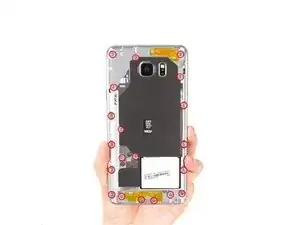

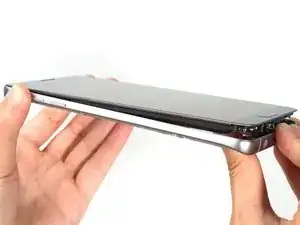

    • Entferne die Mittelgehäuse.

    double-sided tape at the top near the camera and at the bottom near the charging port

    khara27 -

  4. KDruWLfT5oLpwQdi
    KDruWLfT5oLpwQdi
    teZX4O66XPCgAknN
    oslnksyOcqOEnlLg

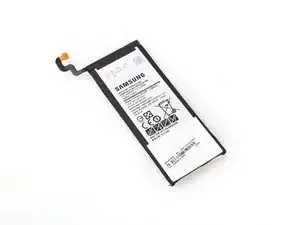

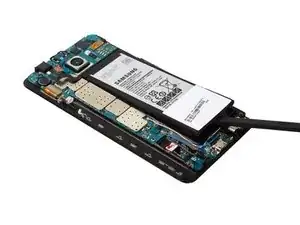

    • Entferne den Akku.

    Double tape along left and right side length of battery

    khara27 -

  5. 5vWyj4hGGq5T2IDC
    5vWyj4hGGq5T2IDC
    SPCuugcK4EJgw3oZ
    dhpocwZouLdneEoh

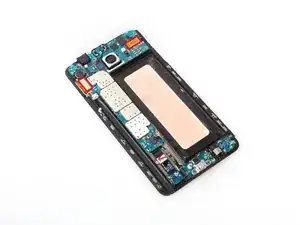

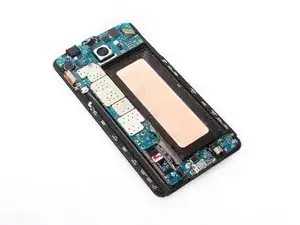

    • Löse die Konnektoren auf dem Motherboard.

    Remove both wires

    khara27 -

  6. OKmHkdCbAmCx6X3j
    OKmHkdCbAmCx6X3j
    exfWPWWnPhb3cBZj
    2H1thpEDcWQR4LUt

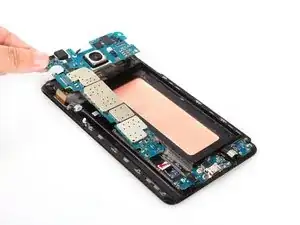

    • Löse den USB-Board-Konnektor auf der Rückseite und entferne das Motherboard.

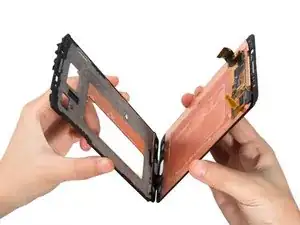

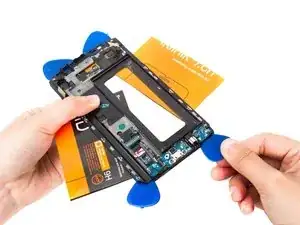

  7. 4GNUHyZ1NASKnCdu
    4GNUHyZ1NASKnCdu
    D1QugJhkNkbENSpC
    ekcdVGEETHpsOP5J

  8. e4DUE1JwwMSLSceq
    e4DUE1JwwMSLSceq
    nOHjqiM2AHP6fKyZ
    vMw4ZXTIIvCFFuP1

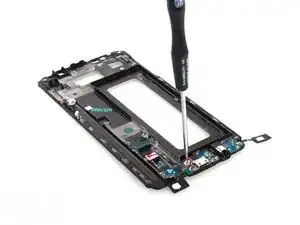

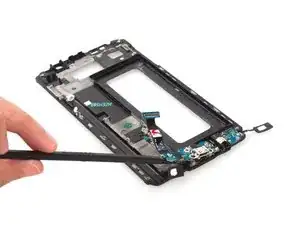

    • Entferne die USB Platine. Wenn du nur diese Platine austauschen willst musst du sehr auf das LCD achtgeben. Es ist empfindlich und bricht leicht.

  9. dWHsapG6gjYtNuT6
    dWHsapG6gjYtNuT6
    eRZuLHiHiqgPyeBU
    KGYBjcPMOVCTXDdG

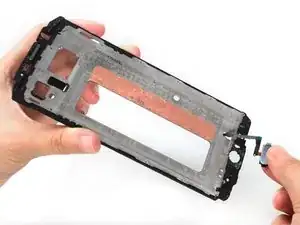

    • Drücke die Taste aus dem Schlitz. Löse dann die Klebeverbindung am Flachbandkabel und entferne es.

    • Auch hier: achte auf das LCD.

    What happens if this copper strip is removed?

    Lainey Yancyfjgbmp -

    Can you use a hair dryer instead of a heat gun

    Joseph Thompson -

    Can you use a hair dryer instead of a heat gun.

    Joseph Thompson -

    Yes u can use hair dryer

    Shaun Spivey -

Abschluss

Um dein Gerät wieder zusammen zu setzen foge den Schritten in umgekehrter Reihenfolge.
