Dexter 500W Wired Jigsaw - 500JS2-65.5 Replacement Switch

Geschrieben von: Céline Chemineau
  • Kommentare: 0
Dexter 500W Wired Jigsaw - 500JS2-65.5 Replacement Switch

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

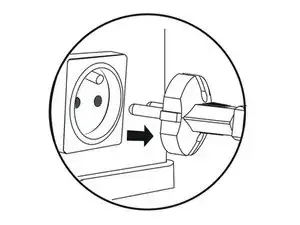

  1. skZLqlSjTgKgRJEB

    • Before starting, remember to unplug the device.

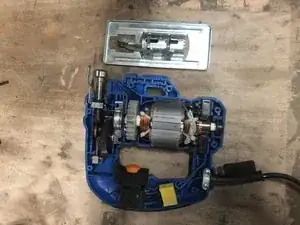

  2. DMT1hrUWrkqABB4L
    DMT1hrUWrkqABB4L
    Zf4LaSh2SS5i2SiD
    E3XDGVLcBCIUYIrB

    • Start by unlocking the plate.

    • Then unscrew it to open the device.

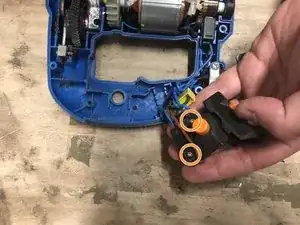

  3. vTGPRTdXaCRQLK3k

    • Unscrew the two screws to release the red and blue cables.

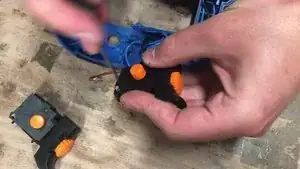

  4. To release the other cables, slide them to the side out of the way with a screwdriver to open the switch.

    • To release the other cables, slide them to the side out of the way with a screwdriver to open the switch.

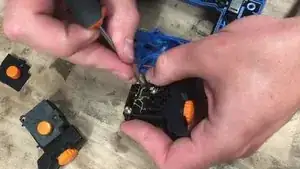

  5. With a little precision screwdriver, get the black and blue cables out of the way.

    • With a little precision screwdriver, get the black and blue cables out of the way.

    • Lift the spring strips to unlock them easily without breaking the wire.

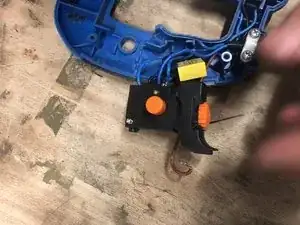

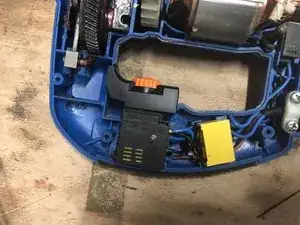

  6. uGmXCnPi1LWnEXJw
    uGmXCnPi1LWnEXJw
    5nX2F2RgbQQQCeQv

    • Put the new switch in place.

    • The cables of the electric wire go over the screws.

    • Check that each cable is securely in place and fastened well.

    • Before closing up, check that none of the cables are trapped.

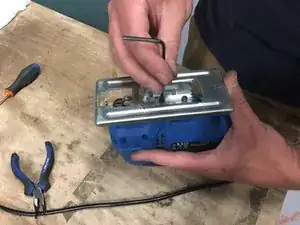

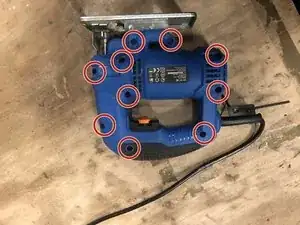

  7. UpyMCSYcLervrxKb
    UpyMCSYcLervrxKb
    sCkQ1TtcKjcnGlYY

    • Before closing up, check that none of the cables are trapped.

    • Put the case back and screw it on.

    • Lastly, tighten the nuts of the plate.
