iMac Intel 24" EMC 2134 and 2211 Frontblende austauschen

Geschrieben von: Brittany McCrigler

Kommentare: 29

iMac Intel 24" EMC 2134 and 2211 Frontblende austauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

5 - 45 Minuten

Einleitung

Ausbau der Frontblende, um an die inneren Bauteile des iMacs zu gelangen.

Werkzeuge

Schritt 1

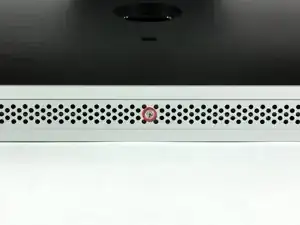

Löse die einzelne Kreuzschlitzschraube in der Mitte der Zugangsklappe.
Diese unverlierbare Schraube verbleibt an der Zugangsklappe.
Entferne die Zugangsklappe von deinem iMac.

PH2 head necessary to remove screw.

airshack -

Mine was as written, a PH1.

tpivo -

Schritt 2

Die Glasscheibe ist mit vierzehn Magneten rund um den Frontrahmen befestigt.

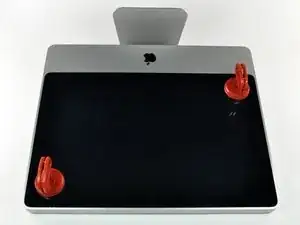

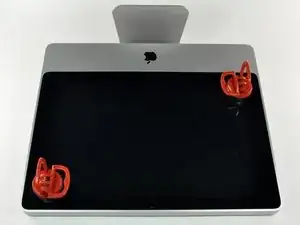

Befestige zwei Saugheber in gegenüberliegenden Ecken der Glasscheibe.
Um die Saugheber, die wir verkaufen, zu befestigen, musst du den Saugheber erst mit dem beweglichen Griff parallel zur Glasscheibe aufsetzen. Drücke ihn leicht gegen die Glasscheibe und kippe den beweglichen Hebel, bis er parallel zum anderen Hebel steht.
Wenn der Saugheber nicht gut haftet, dann reinige sowohl die Glasscheibe, als auch den Saugheber mit einem milden Reinigungsmittel.

Save $15 dollars and use a plunger. Works perfectly.

Michael Ybarra -

Even better and more elegant: go to a household shop and buy two transparent plastic bathroom baskets with two suction cups each. I found them in Xenos in the Netherlands (maybe also in Germany).

freed - 21/07/14

Perhaps not so elegant but equally effective without any adverse effects to either... try a vacuum cleaner.

Andrew Dobson - 24/05/15

The same kind of suction cups are available from Harbor Freight Tools (Item # 62715) for $2.99 each or $5.98/pair (plus sales tax).

Bob Atkinson - 19/04/20

Schritt 3

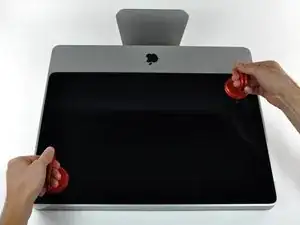

Ziehe die Glascheibe vorsichtig gerade vom iMac weg.
Die Glascheibe besitzt um ihren äußeren Rand verteilt einige Positionierungsstifte. Vermeide es, diese abzubrechen und bewege die Glasscheibe beim Ausbau nur senkrecht nach oben.
Reinige das LCD und das Innere der Glasscheibe vor dem Zusammenbau akribisch. Jeder innen eingeschlossene Fingerabdruck oder jedes Staubkorn wird sonst störend sichtbar, wenn das Display angeschaltet ist.

The glass panel is somewhat thin and should come away quite easily without much force so be gentle.

adamngordon -

Just an FYI - my glass panel did not line up perfectly when reinstalled. Off by just 1mm. May take another attempt at it later, but does not interfere with the iSight camera. Only someone with an eagle-eye (like me) will notice it's not perfect.

ajpfl -

To reinstall the glass, I lined up the bottom edge first, then pivoted the top in. The magnets pulled it quickly into place.

Magnus Dalen - 09/11/14

I didn't want to use such small suction cups.. so I got suction bathroom handles from Home Depot. Very sturdy and to me, safer choice.

Gail - 27/01/15

Schritt 4

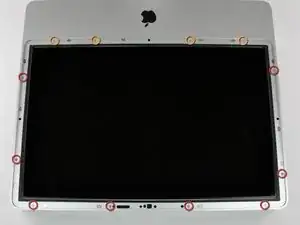

Entferne folgende zwölf Schrauben, welche die Frontblende am rückwärtigen Gehäuse befestigen:
Acht 13 mm T8 Torx Schrauben
Es können auch sechs 13 mm T8 Torx Schrauben und zwei 25 mm T8 Torx Schrauben sein
Vier 25 mm T8 Torx Schrauben
Es können auch zwei 25 mm Schrauben (außen) und zwei 35 mm T8 Torx Schrauben (innen) sein

I only had two 25 mm T8 Torx on my model. (The two inner orange circles as shown in the diagram.)

stevejansen -

I don't know if this is different but i am in the process of disassembling a 24' imac emc: 2134. i have only: (2) 25 mm T8 screws the inner two on the bottom of the screen. I have (4) 13 mm t8 screws the outer most holes on the bottom and the 2 holes on the right side of the monitor above the drive entrance and the remaining holes are (6) 11 mm t8 screws

ccarter314 -

I have the same screws as ccarter on a 2211 except on the bottom row there are only 4 screws total, the longer ones go in the middle two.

maccentric -

The Torx set I bought from ifixIt is well worth the money. My screw heads in this step were T9 not T8. THe T8 bit was too sloppy in the screwhead and there was a risk of rounding the slots. Having the option to go a size-up was perfect.

Troy -

My 2211 has a different screw configuration.

2 - 32mm long screws towards the middle of the bottom edge

4 - 18mm long screws (2 at the corners of the bottom edge and 2 along the right edge)

6 - 13mm screws along top and left edges

christian -

Mine is the same — two very long, four medium, and six short. Also my T9 worked better than my T8 which was a bit loose.

johann beda - 19/06/18

I have the same screws as Christian. The key is to make sure all screws are flush to the surface, so that the glass can be held up by the magnets.

Kelvin Lau -

On mine, for the red circles, I had the six 13mm Torx plus two 25mm Torx. It's not indicated in the picture here, but the 25mm Torx went on either side of the optical drive.

JD Fox Micro - 14/10/14

I marked next to each hole with a pencil "S, M or L" to indicate which length screw goes where. No guess work on reassembly.

Magnus Dalen - 09/11/14

I dropped my screwdriver on the lcd and nicked it. :(

hewsey - 19/05/20

Schritt 5

Die Frontblende ist mit dem iMac immer noch über das Mikrofonkabel verbunden.

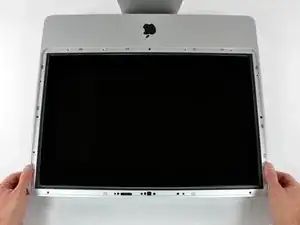

Hebe die Frontblende vorsichtig an der Oberkante aus dem rückwärtigen Gehäuse. Es hilft, wenn du dabei ganz sanft mit den Daumen auf die Ecken des Displays drückst.

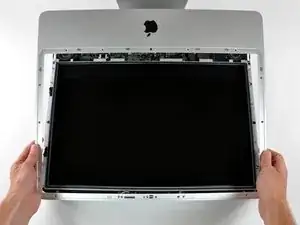

Wenn die Oberkante der Frontblende weg vom rückwärtigen Gehäuse ist, dann drehe die Frontblende in Richtung des Standfußes und entferne sie aus dem rückwärtigen Gehäuse.
Beim Einbau der Frontblende solltest du an der Unterkante beginnen. Achte daruf, dass sie bündig mit dem rückwärtigen Gehäuse ist, bevor du die Oberkante in den iMac herablässt.

The microphone cable must be disconnected BEFORE rotating the bezel towards the stand.

Also, the bezel covers the sides of the case, not just the front. This isn't obvious from the pictures.

wallace - 13/10/14

Looking at the meaning of the LEDS

i've got 3 LEDS on but i don't get a chime or the screen.

i am going to check the inverter voltages but can only find info for the 20" macs iMac Intel 20" EMC 2210 Power Supply Output Voltage Test

does anyone know where i can get info for the 24"

samraby - 24/11/14

i have the same thing, 3 LEDs on but no chime and no screen.

what is the fix? and problem?

Bill - 21/02/15

I'm in the same position. 3 LED's, No chime, no life in the screen, Optical drive starts up but no other signs of life i.e.:fans also don't start up.....

Any guidance would be greatly appreciated!!

Dominik - 05/11/15

Schritt 6

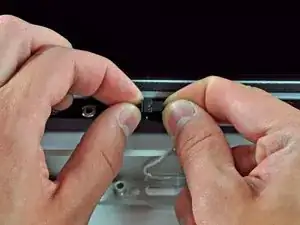

Löse das Mikrofonkabel ab. Entferne dazu das Klebeband, falls notwendig.
Damit die Frontblende wieder richtig passt, musst du darauf achten, dass das Mikrofonkabel und der Stecker in den freien Raum in der Nähe der Kameraplatine gesteckt wird.

I didn't disconect the cable. I was working on a large table that allowed me to carefully flip the bezel upside down and rest it that way with the cable connected through the entire process.

fulker - 21/02/15

I also skipped disconnecting the microphone cable. I have a large table and I stacked some books next to the iMac. There was plenty of cable for the bezel to fold nicely over the top of the iMac.

mikkorongas - 30/08/15

I needed to move the bezel away, so disconnected the cable. On reassembly found that the pins had pulled out of the plastic housing. Need to know orientation of the 3 wires in the housing.

prreitz - 31/01/16

I used the floor instead of a table and left the cable connected.

Frank Carrano - 12/01/17

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
