iPhone 5c Screen Replacement

Geschrieben von: ncstate8910
  • Kommentare: 0
iPhone 5c Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 - 40 Minuten

Einleitung

This guide gives instructions on how to replace the screen on an iPhone 5c.

  1. nQFy2KMG4gHE1B3E

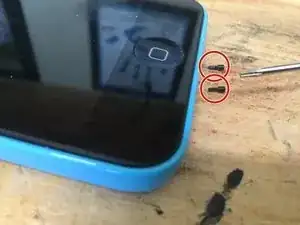

    • Take out the pentolope screws from the bottom of the iPhone next to the speakers.

  2. DXjmkHrBWUNOLgDF

    • Get suction cup and pull up.

    • Note: Use a guitar pick and pry up to lift screen easily.

  3. AqMWEyT35sF6PXnu
    AqMWEyT35sF6PXnu
    aAuOpF5MQBlCptCe

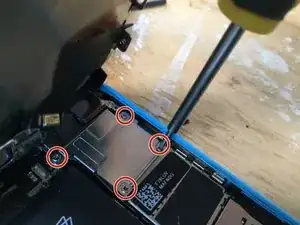

    • Unplug battery take out Phillips head screws on the cover and unplug the battery.

  4. C5bWqQtIGPqUG51L
    C5bWqQtIGPqUG51L
    YdRsUf4DnNG1uE5Y
    AZTkOeWEqOBZAxlk

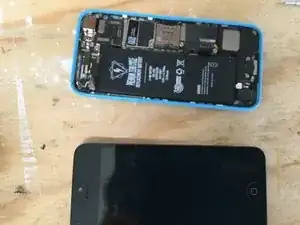

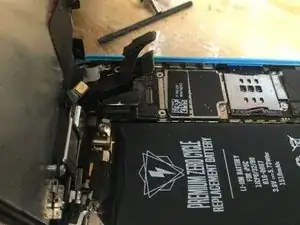

    • Take off screen cables by removing the shield with four Phillips head screws

  5. sKuNWXnUQY2GyHUl

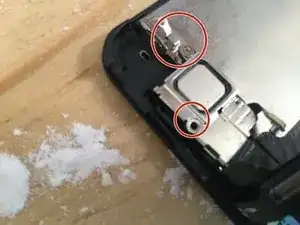

    • Remove camera and micro bracket with its two Phillips head screws.

    • Note: small sticker needs to be pulled up from front facing camera.

  6. 1aPgEZlsQxRywOvq

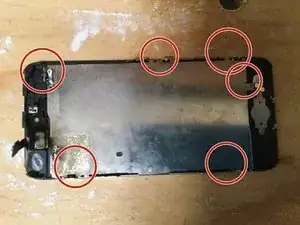

    • Remove back plate with six Phillips head screws.

  7. LdEM44LBwZgoRdTk
    LdEM44LBwZgoRdTk
    2hKqElmXqwRTi6ar

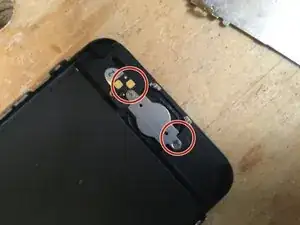

    • Remove home button bracket and take out the home button. (You may need to use a guitar pick to loosen home button adhesive).

Abschluss

To reassemble your device, follow these instructions in reverse order.
