Bose SoundLink Mini II Platine der Bedienelemente austauschen

Geschrieben von: jack dighera

Kommentare: 35

Bose SoundLink Mini II Platine der Bedienelemente austauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

20 Minuten

Einleitung

Funktionieren die Audio-Bedienelemente nicht mehr? Diese Anleitung hilft dir die Platine mit den Bedienelementen des Bose SoundLink Mini II zu ersetzen. Stelle im Vorfeld der Reparatur sicher, dass du das benötigte Werkzeug sowie die Ersatzteile hast. Sei bei der Entfernung der Platine vorsichtig, vor allem wenn du mit einem geladenen Akku arbeitest.

**Beachte**: Diese Reparatur erfordert einen Aus- und Wiedereinbau des Akkus. Dazu braucht du ein |new_window=trueLöteisen und/oder viel Vorsicht beim Auseinanderbauen.

Werkzeuge

Schritt 1

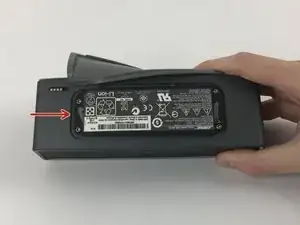

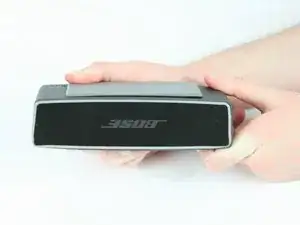

Drehe den Lautsprecher auf die Rückseite.

If the blinking red battery is the reason to change the battery, first try reinstalling the latest firmware via Bose.
When the site tells you that you already have the latest version, just press A, then D, then V, then the up arrow and last the down arrow. The option to reinstall the latest firmware will appear. Just reinstall it and that might fix your battery. It did for me and saved me a new battery.

Harm Jan Berendsen -

Schritt 2

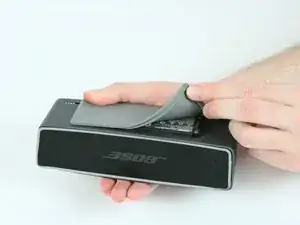

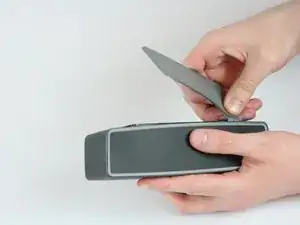

Entferne den Gummifuß vorsichtig vom Lautsprecher, indem du an den Kanten ziehst.

Das Fehlerbild das ich beobachtet habe, war ein kontinuierliches rotes blinken der Power LED. Der Akku wurde nicht mehr geladen. Empfehlungen das Gerät in der ship mode zu versetzen um dann zu laden waren erfolglos. Nach dem Akku tauschen das gleiche verhalten. Die SW war auf dem aktuellen Stand.

Die Lösung war am Ende eine komplette neu Installationen der SW.

Dazu auf die böse sw Update Seite gehen und dann die Tasten "Page Up" und dann "Page down" drücken. Dan wird die Option angeboten, die gleiche SW nochmals zu installieren. Danach war alles funktionsfähig.

Andreas -

Schritt 3

Entferne die vier 6 mm T9 Torx Schrauben von den Ecken des Akkus.

Not sure what’s going on here but T9 is the wrong size—too big—for the screws on my SoundLink Mini II. Maybe T8? Perhaps my model is more recent and they’ve changed sizes? I bought the screwdriver from IFIXIT following these instructions, so I’m a *bit* annoyed…

David Whitley -

That’s really frustrating. I’ve seen this before, where manufacturers swap screws and other components without changing the model number. I have a 64 bit driver set from iFixit, but I don’t recall which bit I used for this. The screws in my one are different lengths to the ones in the original instructions.

Kate Morris -

Mine were T9H, labelled T2 in the ifixit bit set

Olivier Sdt -

Schritt 4

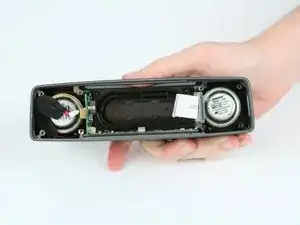

Hebe den Akku vorsichtig an der Seite nahe an den vier goldenen Kontakten an, entferne ihn aber noch nicht ganz.
Der Akku ist noch mit vier Kabeln an der Versorgungsplatine angeschlossen.
Löte die vier Kabel behutsam von der Versorgungsplatine ab und trenne den Akku komplett ab. Es ist wenig Platz für den Lötkolben, so dass die Gefahr besteht, das Gehäuse oder die Platine zu beschädigen; du kannst auch die Platine vorher ausbauen.
Unsere Lötanleitung zeigt dir, wie das geht.
Du kannst auch - ohne zu löten - den Akku und die Versorgungsplatine zusammen ausbauen. Dies erfordert aber weitere Ausbauarbeiten, während denen der Akku - in aller Vorsicht - immer noch über die Kabel angeschlossen bleibt.

cuanto tiempo dura la bateria original ?

Marcelo Lastra - 30/10/17

the mini 2 battery is soldered to a smaller board, either u desolder it or buy it with the small board, but with that it is even harder to replace

user user - 24/04/18

Yeah this guide is just like the original Bose Mini which looked like that model had a way to replace the batter easily. I purchased a battery off Amazon thinking it was the same. This is not the same. The Bose Mini II has a battery hard-wired directly to the board. Might be too late but read this guide’s comments first to get the low down. The guide is very misleading. The BOSE SOUNDLINK MINI II **DOES NOT HAVE A REPLACEABLE BATTERY**

Ian Lucero - 08/07/18

yess, got the same problem. Purchased an substitute which had as Replacement No. the original Bose-No. on its description. Bose’s accu has 4 strings, the replacement has 5 strings (where to put the fifth then?!).

Original we had to CUT OFF, because it is firmly soldered and glued with foam! No chance to replace it!! Nearly 60.- Swiss Francs as we say “for the foxes”.

Maranathatalitha - 31/03/20

DO NOT buy a replacement battery until you understand that the battery is HARD WIRED to the circuit board and is NOT designed to be replaceable. If you are not an electronics specialist, the only option is to send to Bose for battery replacement.

Even if you are an electronics specialist, finding a replacement battery may not be possible.

ldthom65 - 19/04/19

I am very glad I took the time to review everything and all the comments before I started this procedure on my Soundlink Mini 2.

I have to say, the author of this procedure is a pathetic jerk for posting this and not distinguishing the between the 1 and 2 versions. It is also highly suspect that there is no clear picture of the top of the unit, which would indicate which version is being used due to the fact that the 2 has no mute button.

trmsd - 14/08/19

Hey du hole Frucht, die Bose Soundlink 1 hat keine Kabel an der Batterie, nur die Soundlink Mini 2 hat Kabel die auf die Platine gelötet werden muss!

Ihr Affen habt doch keine Ahnung!

Und den Bose Schriftzug muss der Autor nicht zeigen, wegen der Rechtlichen Lage in Deutschland!

r.janda - 03/05/20

It’s disappointing, for sure. But to call the author, who’s been kind enough to post this without getting anything in return, a pathetic jerk is waaay over the top! Come on. If anyone deserves abuse, then it’s Bose for producing a speaker with a battery that’s totally and easily replaceable except they decided to solder it onto the circuit board for some unfathomable reason. Argh!

B. J. - 23/03/20

I suspect that the soldering the battery directly to the power board is a way to enhance revenue because most people will either send it in to be replaced or throw it away and buy another speaker. Of course Bose hopes that the replacement will be another Bose, but that is not likely for anyone who is frustrated by the idea that Bose would not make the battery easily replaceable.

wannabagolfer - 29/06/20

Absolutely. Great I checked up first. I will not buy any other rechageable battery operated Bose product. It is clear customer abuse. The same should go to companies like Samsung which produces cellular phones with practically embedded impossible to replace without risking breaking the cristal. Customer protection in this country unfortunately has gone away with lobby. (Legalization Of Bureaucratic BriberY) Same with Apple and then Microsoft when they do updates and then no longer support an OS that could be still useful for the needs of certain people or businesses

Dario Grisales - 04/07/20

………..just bought a replacement battery based upon ifixit’s original post. This is neither a 5 minute two wire push fit job NOR one for an amateur to attempt. I now have a box of BOSE bits and spare unsuable battery.

Thanks pal.

Beware of internet advice

Richard Brickwood - 22/10/20

……..just bought (£30) a replacement battery based up ifixit’s orginal post that it was a)simple and b)took 5 minutes only to discover that a) there are four wires involved hard solderied to a pcb. Spent an hour undoing torc screws to dismantel the whole thing. It is not possible.

I now have abox of BOSE bits and a brand new unuseable battery. And no speaker.

Shame on both BOSE and ifixit - the latter for being so misleading .

Richard Brickwood - 22/10/20

I’m pretty disappointed with ifixit on this one! I feel bad giving you guys a bad review but this one is just bad! It’s Missing steps, it’s labelled as easy when it certainly shouldn’t be. iPhone battery’s are easy. This requires awkward desoldering/soldering. In a tight spot. There’s not even a mention of that in this guide? Maybe someone could rewrite this so others don’t go and purchase a battery thinking it’s easy!

Wiebie - 23/12/20

The instructions are not complete, and I needed extra information to replace the battery on my soundlink mini 2. I successfully completed the battery replacement using instructions I found by searching for SLminiII_SM.pdf. That document describes the steps Bose technicians take. With that, it took about 30 minutes to replace the battery. I removed the board the battery is soldered to, which made it an easy soldering job (four through-hole wires, no SMT). I carefully saved and replaced the foam tape because the last thing you want in a speaker is buzzing sounds due to the wiring rubbing against the speaker. If you’ve already bought the parts, and have access to a soldering iron. I’d recommend searching for the instructions I used.

Kate Morris - 02/01/21

I was not able to find that document. Do you have any tips for finding it and I was wondering if you bought your replacement battery from ifixit or if you have any recommendations for where you bought yours.

Michael Calaiaro - 28/02/21

The instructions are at https://riverparkinc.com/wp-content/uplo... . I bought this battery from Amazon: https://www.amazon.com/gp/product/B08FHX... (not an affiliate link). The speaker is working fine and charging, a few months later.

Kate Morris - 28/02/21

Thank you very much

daniel -

I tried to follow these instructions. I cannot find where to download the 'Polycomm' software necessary to reset the hardwire between chip and battery. I've trawled all over the internet and Bose's own websites. Could some one please advise?

Christie Dunne Murphy -

I would like to measure the voltage of the battery before replacing it, does anyone know which one of the 4 wires is power or ground?

Akash Arora - 12/10/21

Playing with a soldering iron and live li-on battery leads ?

A good way to burn the place to the ground !

cricri -

I have a box of SoundLink parts.

That Polycomm software has got to be out there somewhere! Anybody?

Does anyone have a copy of this software tool.

Aaron V. -

You don't need the Polycomm software, you just need to reinstall the Firmware even if it's up-to-date. Got to https://btu.bose.com/ and plug the speaker in and update. It may say it's up to date, but if you type A, D, V, Up Arrow & Down Arrow it lets you into advance mode and you can force the firmware to be reinstalled

James Pither -

Kudos James!

You held the secret to finishing this up! Pressing A, D, V, Up Arrow & Down Arrow in sequence after getting the updater going at https://btu.bose.com/ , then updating the firmware got the job done. Before doing this my power light just blinked red when trying to charge and the speaker The physical replacement was no big deal. I bought a replacement battery from amazon or ebay, I don't remember where, and instead of de-soldering the battery from the power supply board, because I suck a soldering, I cut off the old battery real short and spliced the new battery into the wires still hanging from the power supply. Lots of whining about the hardwired battery but I think I understand the decision Bose made in doing it. This little speaker booms, and the last thing they wanted was a loose battery connector rattling around. The fact that they aren't suing me for fixing it, even thought it takes a little thought and effort to do so, at least keeps them above John Deere, Tesla, etc., in my eyes.

TMS -

So, is there anything I can do when even the Bose Updater doesnˋt recognize my Mini 2? Have the Updater installed, cable plugged in but nothing happens. Except for the red blinking.

Oliver Wiebeck -

Hi James, TMS, My battery has just stopped charging. I have a Bose which has stopped charging. I came across a youtube video suggesting it could be that the battery has gone into "Battery Protection Mode" I followed the suggestions provided in the video but without results. Before the video ends the guy suggests a firmware up-date. Is it obvious what A, D, V, Up Arrow & Down Arrow in sequence means when up-dating? Don't suppose there's a youtube video showing this procedure is there?!

Charlie Watson -

Schritt 5

Bose Technicians Instruction Manual: https://riverparkinc.com/wp-content/uplo...

Schritt 6

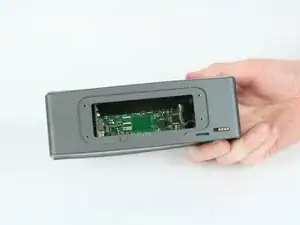

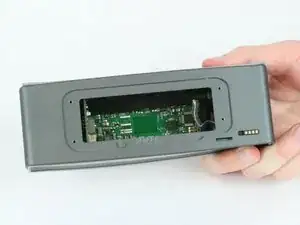

Nach Entfernung des Akkus wird die Platine sichtbar.

Schritt 7

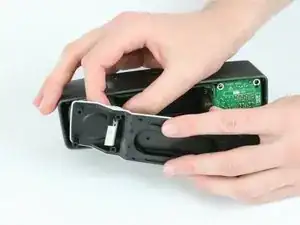

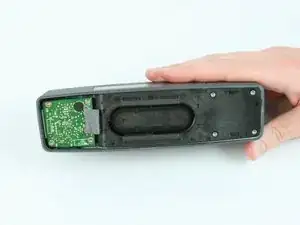

Entferne die hintere gelochte Abdeckung mit Hilfe des Spudgers aus Metall.
Die Abdeckung kann sich einfach verbiegen und deformieren.

Schritt 8

Entferne die acht 9 mm T9 Torx Schrauben von der Platine und von der hinteren Abdeckung.

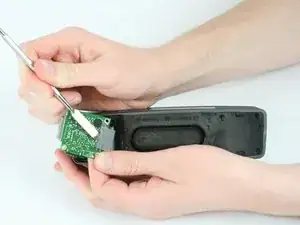

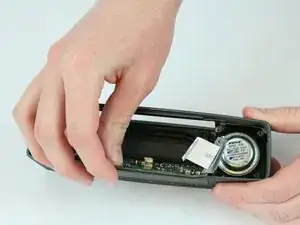

Benutze einen Spudger aus Metall, um den Kabelstecker zu entriegeln und entferne das Kabel vom Audio/USB Board.

Schritt 9

Ziehe das Flachbandkabel durch die Öffnung in der Abdeckung.

Schritt 10

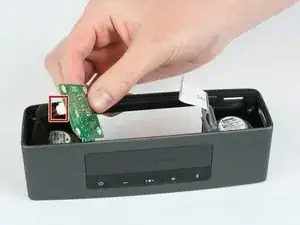

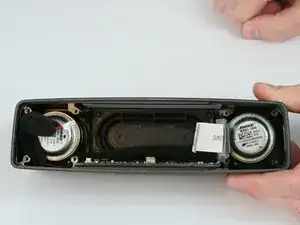

Entferne die obere Platine nach oben.
Es gibt hier einen nicht verriegelten Konnektor, welcher diese Platine mit einer weiteren Platine des Gerätes verbindet. Sei hier besonders vorsichtig, dass der Konnektor nicht beschädigt wird.
Denke vor der Entfernung der Platine daran, diesen Stecker zu entfernen.

Schritt 11

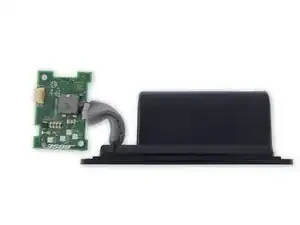

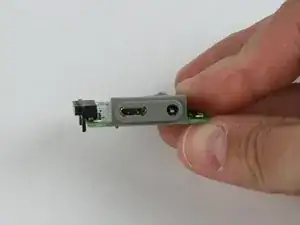

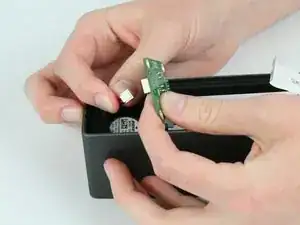

Entferne die Platine an welcher der Konnektor aus dem vorigen Schritt befestigt ist, indem du sie herausziehst.
