DualSense Joystick tauschen

Geschrieben von: Sam Omiotek

Kommentare: 100

Schwierigkeitsgrad

Sehr schwierig

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

Folge dieser Anleitung, um die Joysticks an einem Sony PlayStation 5 DualSense Controller zu tauschen.

Werkzeuge

Ersatzteile

Schritt 1

Ziehe das Ladekabel ab und schalte deinen Controller aus, bevor du beginnst.
Stecke ein Plektrum unter die untere rechte Ecke der Abdeckung, um die Clips zu lösen, mit denen sie befestigt ist.

Schritt 2

Schiebe das Plektrum an der unteren rechten Kante entlang, um die Clips zu lösen, die die Abdeckung festhalten.

Schritt 3

Stecke ein Plektrum unter die untere linke Ecke der Abdeckung, um die Clips zu lösen, mit denen sie befestigt ist.

Schritt 4

Schiebe das Plektrum an der unteren linken Kante entlang, um die Clips zu lösen, die die Abdeckung festhalten.

Schritt 5

Hebe die Abdeckung mit deinen Fingern an der unteren Kante an, um die restlichen Clips zu lösen.
Hebe die Abdeckung über die Joysticks, um sie zu entfernen.

Schritt 6

Fasse den Kontroller mit einer Hand und halte den linken Auslöser mit dem Daumen gedrückt.
Setze das flache Ende des Spudgers mit der anderen Hand zwischen die L1 und L2 Tasten ein.
Heble die L1 Taste mit dem Spudger behutsam vom Kontroller weg, halte dabei den Finger darüber, damit die Taste nicht davonspringen kann.

Tried prying from the front of the buttons as pictured and my spudger broke off in the gap. A video I watched showed them being pried off from the back (between the R1/R2 and L1/L2 buttons) which seemed much easier.

Lora Singleton -

Agree with Lora's comment above. I was able to use an old credit card to take L1/R1 out this way. I pressed down the L2/R2 button to create space to work in, then came in from between L1/L2 and R1/R2. It's easy to pop one of the outer corners first then you can work the credit card around the top and the rest falls out.

darkstar448 -

Man, if I'd just read the thumb part...

caldugen -

Schritt 7

Wiederhole den vorherigen Schritt für die R1 Taste.

to save a few bucks, the L1 and R1 buttons can be removed without the use of the spudger tool by using any thin prying tool and just pry the buttons from the bottom instead of the top

Alan Peng -

What I didn't see addressed anywhere (here or in other similar articles) is that replacement R1 / L1 buttons can be differ enough to be un-usable depending on which model your ps5 controller is. The ones I ordered don't fit and now I can't find a way to be sure I get the right ones because few know there's even a difference.

Walt Mather -

Did you already figured it out? The version the we need yo use?, We are in the same situation here.

Gerald Ross Rodriguez -

Lora Singleton -

Schritt 8

Entferne die beiden 6,4 mm Kreuzschlitzschrauben, die die unteren Enden des Gehäuseunterteils fixieren.

Schritt 9

Entferne die beiden 6,4 mm Kreuzschlitzschrauben hinter den L1 und R1 Tasten.

Schritt 10

Löse die beiden Clips links und rechts von der Kopfhörerbuchse mit der Spitze des Spudgers.

Schritt 11

Schritt 12

Schritt 13

Entferne das Gehäuseunterteil.
Bei manchen Modellen wird das Gehäuseunterteil von zwei weiteren Clips gehalten. Diese befinden sich links und rechts neben den zuvor ausgebauten Schultertasten. Wenn das Gehäuseunterteil nicht ohne Kraft entfernt werden kann, überprüfe, ob diese Clips vorhanden sind.

Step 14 is the same as step 8

Andy -

Schritt 14

Entferne die beiden 6,4 mm Kreuzschlitzschrauben, die die unteren Enden des Gehäuseunterteils fixieren.

Schritt 15

Entferne die beiden 6,4 mm Kreuzschlitzschrauben hinter den L1 und R1 Tasten.

Same as step 9

Andy -

Schritt 16

Löse die beiden Clips links und rechts von der Kopfhörerbuchse mit der Spitze des Spudgers.

If these are similar in nature to the DS4’s clips, don’t use too much force so you don’t end up breaking them

Strings Cat -

there is a clip that holds the rear cover in place located in R1 and L1

Zargruzski nakamura -

Is there a clip in R1 and there's another in L1? Any way to see where exactly? The part of the back cover near L1 and R2 is that one that's not coming off. I can't seem to pull it off easily the way it looks in Step 11.

tofu -

For those wondering where the bumper clip is located, it's ~1cm inwards from the end of the back shell where the bumpers are. Take a spudger in that spot and lift it upwards carefully, it should disconnect the clips if they aren't already

Franz Rolfsvaag -

Schritt 17

Entferne das Gehäuseunterteil.
Bei manchen Modellen wird das Gehäuseunterteil von zwei weiteren Clips gehalten. Diese befinden sich links und rechts neben den zuvor ausgebauten Schultertasten. Wenn das Gehäuseunterteil nicht ohne Kraft entfernt werden kann, überprüfe, ob diese Clips vorhanden sind.

There are four more clips/hooks hidden in the seams along the outer sides of the handles. If you pull open the controller as shown in this step, then you will shear off the two tiny clips which are right next to the R1 and L1 buttons.

Therefore, you should first release those clips by prying the seams open sideways.

I noticed this with the updated design of the controller, not sure whether the hooks are present on the first version.

The hooks are not critical for the integrity of the controller as the two halves are held together by the screws hidden under the buttons. The damage does show that the controller has been taken apart.

Nick -

Thought I'd clarify: The clips next to the L1 and R1 are on the outer side from the L1 and R1 buttons, I'd suggest zooming in on the picture to see them. They're quite easy to break, but also easy to remove using the plastic spudger along the seam, bending the bottom cover outwards

Franz Rolfsvaag -

I am still strugling to find the clips. Could someone point them out in the image with a screen shot or something like that.

aGingerThing -

I keep getting stuck at this step too with the new DualSense CFI-ZCT1WA revision. The top and bottom shells seem like they are fused together next to L1/R1 but I can't seem to be able to find where these hidden clips are located. My controller is still in warranty so I don't want to break them in case I can't fix my issue.

but also easy to remove using the plastic spudger along the seam, bending the bottom cover outwards

I tried this but it seems that the you need a lot of force and I ended up bending the tip of my spudger. Are you sure it's not the top cover that you need to pry away? The bottom cover has a ridge to make sure it's under the top cover so it's not easy to bend outwards.

@samomio I think there needs to be a step added for these new clips.

robplease -

Ok, not seeing a lot of motion on this request, so I've uploaded photos of the hooks to imgur.

Here ya go: https://imgur.io/a/7NWmQi5

Sean Murphy -

Life save Sean. Appreciate the image.

Vili -

This guide really needs an update on this. I had a really hard time getting the forward clips to release even after referring to the comments above. Pretty sure I broke them in the end. No big deal but would be great if the iFixit experts could work out a good method for releasing them.

Marcus Harvey -

I finally figure it out!!

The hidden clip is very tricky but once you understand how it works it is easy to remove.

Use Sean's picture: https://imgur.io/a/7NWmQi5

What sean is showing, is actually the bottom shell of the seam.

To disassemble

1. Use the flat side of the spudger, pry the bottom seam OUTWARDS near the R1/L1 button hole.

2. (most important) While prying the bottom shell seam outwards, push your thumb on the upper shell and push outward as well (you can do this by applying pressure from the removed R1/L1 button hole towards the seam. And then it will disassemble automatically

And that's it!

Penn - 27/01/24

updated instruction:

I finally figure it out!!

The hidden clip is very tricky but once you understand how it works it is easy to remove.

Use Sean's picture: https://imgur.io/a/7NWmQi5

What sean is showing, is actually the bottom shell of the seam.

To disassemble

1. Use the flat side of the spudger, pry the bottom seam OUTWARDS near the R1/L1 button hole.

2. (most important) While prying the bottom shell seam outwards, hold your thumb on the upper shell as anchor and then use your other finger to pry the bottom edge of the controller up away from the shell. If you are doing the first step, then don't worry about breaking the clip, just force it open. And then it will disassemble automatically

And that's it!

Penn -

Yes! Thanks a bunch Penn. That did the trick! Much appreciated

Sean -

I managed to do it just by pulling harder than what I was already doing. And I don't think I broke anything. So, for me at least, the technique described in this guide worked.

Riedweg Guillaume -

The video linked below clearly shows how to open the controllers with the extra clips near the L1/R1 areas.

See a video here by How To X on YouTube... https://youtu.be/djIvRoclr_E?si=dKFpQCZe...

Jason Z - 18/05/24

I really struggled with releasing the rest of the back panel (close to the shoulder buttons.) What finally seemed to do the trick for me, was doing both sides at once with upward turning motion of the back panel with the shoulder buttons approximately at the axis. Trying to release just one side and then the other felt impossible without potentially breaking the case.

dborba -

This was what did it for me

Matthew Williamson -

Schritt 18

Trenne das Akkukabel mit einer Pinzette oder deinen Fingern vom Motherboard.
Ziehe beim Abtrennen nicht an den Kabeln, sondern an den Steckern.

Tweezers aren't gonna grip that the way you need.

Leif DeWolf -

For those having trouble using tweezers to pull out the connector, you can grab below the lip of the connector and use the controller as a lever to pull it up as seen here DualSense Kontroller v2 Akku tauschen

This little trick helped me so much and I believe it should be shown on this guide as well.

Ezra Worthington -

Tweezers is too weak for this. I use my finger nails after removing the battery from the slot, straighten the cable lines and slowly wiggle it out.

Penn -

Schritt 19

Hebe den Akku gerade aus der Halterung.

Schritt 20

Ziehe das Kabel des unteren Mikrofons mit einer Pinzette oder deinen Fingern aus dem Anschluss auf dem Motherboard.

These ribbon cables have small tabs on either side you can use to help pull out the cable. You can slightly pull up, alternating between the two sides, to slowly wiggle the connector out.

Tran Anh Nguyen -

Might be a rookie mistake, but DO NOT REMOVE THE WHITE BRACKETS, only the ribbon! If you do, you’ll have an awful time putting it back and will most likely mess it up. Yes I did.

Joris D -

I tried to use metal tweezers to pull this out and absolutely shredded the ribbon in the process. It's just a microphone so I wouldn't expect it to matter but now none of the games get any input from the controller even though the controller works fine in the home menu 🥲

Probably just use your fingers if you have the dexterity for it.

Grey -

As others have said, try to only remove the ribbon and not the white connector. I'd advise holding down the white connector with something (perhaps your prying tool or finger) as you pull the ribbon out gently with the tweezers.

Best to avoid pulling out the white connector if possible - but its not the end of the world if you do accidentally pull it out, as I did. You can put the connector back in but you need to be very precise with the alignment over the 6 pins it connects to on the circuit board. I had to use a magnifying glass and it took me a few attempts.

Fruke -

I didn't read the comments until it was too late and I've ended broken all the pins trying to put it back. There should be some disclaimer in here because I've just lost the mic input trying to fix a joystick and there's no getting that back. And in the most stupid way.

Jordi -

Schritt 21

Entferne die 6,4 mm Kreuzschlitzschraube, die die Halterung für den Akku fixiert.

Schritt 22

Hebe die Akkuhalterung vom Motherboard.

Black and red wires fit neatly under the lower left and lower right arms of the battery bracket, to avoid potential damage when reconnecting the rear case.

Seomhnasaigh B -

This needs to be noted. Thanks!

Nick Gatti -

Good call on this one for sure. You DO NOT want to crush those cables with the battery bracket.

Jack Albertelli -

Schritt 23

Löse das Kabel der rechten Tasteneinheit, indem du es mit einer Pinzette oder deinen Fingern aus dem Anschluss auf dem Motherboard ziehst.
Entferne das Flachbandkabel noch nicht ganz.

If your cables are blue and in a different position, don't sweat. It's all good. Just do the same as they do and if you feel it is necessary, label with a sharpie left and right on each cable. A simple L and R works for this case

Qbert 2030 -

Schritt 24

Greife die Lasche des Kabels an der rechten Tasteneinheit mit einer Pinzette oder deinen Fingern und trenne es von der Tasteneinheit.
Entferne das Kabel.

Depending on the revision of your controller, these ribbon cables may be slim and white and if you remove it completely, you might have to remove and tear down the trigger assembly to get the ribbon cable back in.

Robert Borrero -

maybe I'm missing something but in this case it doesn't seem to me like these cables need to be outright removed.

TheHooligan95 -

Agreed… there is no need to remove from the trigger itself. Just the motherboard. This needs to be fixed.

Jack Albertelli -

Schritt 25

Löse das Kabel der linken Tasteneinheit, indem du es mit einer Pinzette oder deinen Fingern aus dem Anschluss auf dem Motherboard ziehst.
Entferne das Flachbandkabel noch nicht ganz.

Schritt 26

Greife die Lasche des Kabels an der linken Tasteneinheit mit einer Pinzette oder deinen Fingern und trenne es von der Tasteneinheit.
Entferne das Kabel.

Schritt 27

Ziehe das Kabel des oberen Mikrofons mit einer Pinzette oder deinen Fingern aus dem Anschluss auf dem Motherboard.

what is the white thing soldered to the motherboard called where the mic ribbon cable plugs and where can i find the part?

Abhi K - 03/01/23

@abhik13943 did you ever find this part?

DaMej2895 -

unfortunately, no. i'm just using my controller without a mic.

Abhi K -

Schritt 28

Ziehe das Kabel des Touchpads mit einer Pinzette oder deinen Fingern aus dem Anschluss auf dem Motherboard.

Schritt 29

Führe die Joysticks vorsichtig durch die Gehäusevorderseite und hebe das Motherboard heraus.
Entferne das Motherboard noch nicht vollständig. Vier angelötete Kabel verbinden das Motherboard mit den Vibrationsmotoren.

Pushing on the joysticks makes this much easier.

zidek22 -

My motherboard wouldn't just lift right out. So I noticed there's also a pair of barely visible small black clips, one on each side of the motherboard, holding it down. One is right beside the battery connector and the other's directly across on the opposite side of the motherboard right beside the ribbon cable connector.

Jason Mulholland -

Such a good observation!

zidek22 -

That helped a lot. If you can push those tabs it comes out a lot easier. I used my tweezers to push the left one and then as others had said pushing on the joysticks from the front of the controller makes it much easier.

Fruke -

Just push on the sticks. Pops out like a charm, zero effort.

Italian Retro Guy -

Try to leave the controller on its front when you pop out the board, otherwise the speaker can fall out like mine did.

James Hartman -

Schritt 30

Drehe den Controller und die Hauptplatine um.
Entlöte die Kabel der Vibrationsmotoren mit Hilfe eines Lötkolbens von der Hauptplatine:
Zwei rote Kabel
Zwei schwarze Kabel
Denke beim Zusammenbau daran, die Kabel wieder an der gleichen Position zu verlöten. Die roten Kabel gehören direkt an den Rand neben den Rs auf der Hauptplatine.

but how do I solder them back and at what temperature. I’m a kid that’s why i’m asking. Also should i wear gloves . My controllers black wire disconnected so this is why i’m asking and yes i know how to do it and i will be supervised. I watch I Tronics fix’s videos so i’ma a big fan of him and all i know about this kind of stuff is from him.

ps_fan_1 -

The temperature will depend on the solder and tip you are using. Start at 180°C (360°F) and increase temperature as needed.

—

To solder the wire back on:

1. Place the end of the wire on the solder pad on the motherboard. Use something to hold it in place while you work, like helping hands.

2. Heat up your soldering iron and touch the tip to the solder pad for 15-30 seconds to get it hot.

3. With the soldering iron and wire touching the pad, use the tip of your soldering iron to melt just enough solder to cover the wire and pad. Remove the solder and soldering iron tip as soon as enough solder melts onto the pad.

—

Wearing gloves and safety glasses is a good idea if you’re new to soldering, and practice on something else first. Read our soldering guide before you start too.

Sam Omiotek -

What if I want to leave the vibration motors out? Is there anything special that has ti=o be done?

Super Korean -

In addition to the 2 red and 2 black wires, my controllers also have 2 yellows and 2 greens. So 8 wires total. I'm going to remove all of then and then install in reverse order. Wish me luck!

Dallas Hall -

Dieser Schritt wirt einfach unmöglich ich habe für 2 Stunden damit vergeblich gekämpft auch nur eines der Kabel zu lösen. Und das mit meinem Lötkolben auf 450°C. Wie es mit "optimierten" ent-löt tools aussieht konnte ich nicht testen, da ich es vermutlich für immer aufgeben werde Dinge die Löterfahrung benötigen zu repairieren.

Kurz gesagt, versucht diese Reparatur garnicht erst, wenn ihr nicht SEHR viel erfahrung habt. Kauft euch lieber einen pre-gemoddeten Kontroller (was ich jetzt vermutlich machen werde).

Luca - 15/02/25

Schritt 31

Trenne den Controller von der Hauptplatine.

Schritt 32

Ziehe die Joystick-Abdeckungen gerade von den Joystick-Baugruppen ab.
Nun bleibt nur noch das Mainboard übrig.

Schritt 33

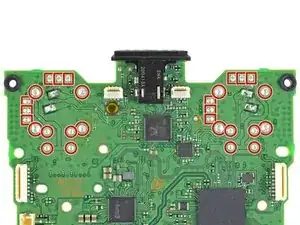

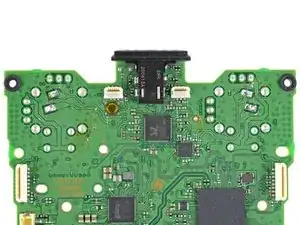

Benutze den Lötkolben und eine Entlötpumpe, um die vierzehn Verbindungen an jedem Joystick zu entlöten.
Schaue dir auch unsere Anleitung zur Benutzung einer Entlötpumpe an.

Another method is to use a heat gun and some Chipquik removal alloy.

You'll need a heat gun, some Chipquik removal alloy/solder, and a soldering iron. Add removal alloy to the soldering joints so it is mixed with the existing solder. Put your heat gun on high heat and low pressure (prevents dislodging other SMT components), and hold it ~1cm over the solder joints. Maintain a low and constant force to pull the joysticks out while holding the heat gun over the joints; once the heat gun melts the solder, the joystick can be carefully pulled out. You can also use the soldering iron to push the joystick's pins down and out to help remove the joystick. It should take less than 10 minutes per joystick.

Tran Anh Nguyen -

Für mich war das Entlöten mit einem normalen Lötkolben unmöglich (bin allerdings auch Anfänger auf dem Gebiet a.k.a. war mein erstes Mal). Für mich war eine Heißluftpistole (400 Grad) die Erlösung - damit viel der Stick innerhalb von wenigen Sekunden wie von selbst heraus und ich musste nur noch die Löcher der Platine reinigen.

Tim -

danke für das hinzufügen der Temperatur! sind keine Komponenten verbrannt?

mahanako -

I used a desoldering gun at around 380°. Could repair my controller and it seems to work fine for now. Watch out for the almost microscopic SMD resistors next to the joysticks.

mahanako -

380°C I meant. Sorry, forgot the unit.

mahanako -

You can't unsolder the stick module with just a soldering iron, you need a heat gun. A soldering iron alone is not enough to heat all connections at once, wich is necessary to remove the module. Heating connections one by one will result in the remvoal of only a part of the solder, you won't be able to free the pins from the holes because a little bit of metal will stay out of reach.

Eugenio Usai -

This is a joke, right? It is ^#(![=;× impossible to remove these parts using just the tools and instructions provided here. Period.

Dallas Hall -

Its not though, many many others have done it and if you are struggling that's okay, we are happy to help

Qbert 2030 -

I agree, it takes forever to try and desolder the analog with only a soldering iron, it needs a heat gun. Please edit the instruction.

Janis Briedis -

Its not impossible to do without a heat gun. I did it myself a few weeks ago and I’m brand new to soldering / I’m dogs**t.

It was admittedly a nightmare but with some solder wick, flux and flush cutters to snip some of the pins off, I eventually managed to get the joystick component off.

This video goes through it quite well (Dualsense Joystick replacement)

Alternatively, if you’re just trying to fix stick drift you could just replace the broken potentiometer; Unclip the broken potentiometer(s) from the joystick with a spudger, bend it away slightly from the rest of the component, grip it with some pliers and unsolder the 3 potentiometer pins and pull. Then unclip the potentiometer from your replacement joystick and attach/clip it onto the joystick on the board and solder it into place.

luke -

Replacing the stick modules on my PS5 controller was tricky due to the double-sided PCB. I started by desoldering as much as possible using a soldering iron, flux, and wick. Keeping the tip tinned and clean helped, but I couldn’t remove all the solder because the opposite side wasn’t melting.

I switched to a piece-by-piece removal. First, I desoldered the potentiometers (3 joints each), which came out easily. Then, I used angled flush cutters to clip the metal casing of the thumbstick into four pieces, bending them down for access. The four large joints holding the stick module were removed by applying heat, flux, and gently wiggling them free. I tackled the L3/R3 buttons (4 shallow joints) before fully removing the casing.

Clean the PCB with isopropyl alcohol afterward. When installing the new module, secure it with two quick solder dabs before finishing the joints properly. Lots of flux and patience are key!

Qbert 2030 - 10/01/25

As so many other users shared the experience the reality is far diffrent from the tutorial. I have purchased the kit in order to help friend with the swap.

What i did not saw on the comments no one mentioned about a stand to keep the board flat above the table to avoid the unwanted movements during the process.

You need to have a heat gun or else will be really hard without it. You might want to have a low melt solder.

You could preheat the area with the heat gun and use the low melt solder on the joints special on the metal case pins, as the Sony solder is to the other side of the board, Idea is to lower the melt point of the new joint.

Hot air + pressing with the solder iron on the pins will do the trick. The sucker will do great after the component is off.

Be careful with the small caps.

Flo -

Herauslöten der alten Sticks bzw. das Einlöten der Neuen war für mich unmöglich da, dass Plastik der Sticks noch vor dem Lötzinn schmolz mit der Heißluftpistole. Bei 300-380° passierte erstmal nichts beim Lötzinn nur das Plastik der Sticks wurde weich. Danach waren sowohl die alten wie die neuen Sticks kaputt und richteten sich nicht mehr richtig in die Mitte aus bzw. blieben stecken. Schader aber es ist die Mühe einfach nicht wert. Kauft euch einen neuen Controller! Selbst mit dem Lötkolben bei 400° wurden die Lötstellen der Sticks nicht richtig flüssig trotz Flussmittel. Die Kabel jedoch waren kein Problem mit 350°.

Houdini -

Schritt 34

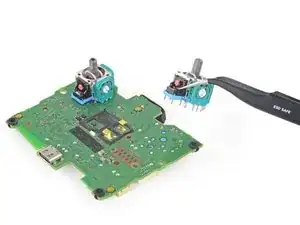

Entferne die Joysticks von der Platine.

Yeah, haha, just "remove" them. Because they came off so easily using these instructions, didn't they? GMAB. Do yourself a favor and just buy the expensive controller. Or at least take these to your buddy who works on the floor. This is well beyond your normal DIY job.

Dallas Hall -

Ok, a few tips that worked for me. I have a lower powered soldering iron, so it is a real pain to heat up both the huge ground layer in the board and the joystick. This is for 6 grounds in there. I had to preheat the board with an SMD air soldering tool. Maybe a well directed heat gun may work. To simplify the extraction I cut the 4 "legs" of the original joystick. that way I was able to set it free with less work.
NOTE: after you replaced it, it still won't work correctly unless you recalibrate. There is a DualShock Calibration GUI that can be used to do that. You will need Chrome and maybe Windows (I have not tested on Mac or Linux)

Antonio Drusin -

Abschluss

Um das Gerät wieder zusammenzusetzen, befolge die oberen Schritte in umgekehrter Reihenfolge.

Entsorge deinen Elektromüll sachgerecht.

Hat die Reparatur nicht ganz geklappt? Versuche es mit ein paar grundständigen Lösungen, ansonsten findest du in unserem Forum Hilfe bei der Fehlersuche.

Tinte & Feder

Sam Omiotek

Mitglied seit: 25/02/19

87355 Reputation

29 Kommentare

can I use Dualshock 4 joystick in the Dualsense ?

Kia -

Yes, the joysticks are the same in both controllers.

Wes -

How do you differentiate a real joystick part from fake ones? Since in my situation i can't order straight from sony.

TryJak -

I would suggest getting a PS4 Dualshock controller from the classifieds since there's a pile of them available for cheap and take the analogue stick from there.

Philip Sedlmair -

Thanks for the tutorial! I wonder if anyone has a problem after replacing the joystick? The controller simply won't turn on. If I connect the controller to either ps5 or my pc via usb, it will blink 3 times in orange and turn off. If I press the PS button when connected with usb, it will also blink orange 3 times and nothing happens. I've tried hard reset by using the hole on the back but it didn't help. Any advice??

zirimark -

Sounds like something went wrong during the repair. Maybe something wasn't plugged back in correctly? Maybe you removed more components than just the joysticks? Hard to say without knowing more. A quick search led me to a Reddit post that suggests that one of the ribbon cables might have been broken which seems likely as they're pretty delicate!

Joel Gillman -

How do I calibrate afterwards? I changed the sticks, but they need calibration.

marcpjensen -

I bought replacement sticks from GuliKit and they link to a third-party calibration tool that worked for me!

Adam Gordon -

Hello my controller wont start or charge after resoldering new joysticks any suggestions?

Thanks

Dominik Vlašič -

Hello, I have soldering Iron and pump but am having trouble removing the tiny of amount solder around the connections. any advice?

Heart -

heat gun, heat it up for about 5-10 min and the new module should snap right in

Albert Einstein -

Another option when trying to clean up the old solder to open up the through-holes is to use solder wick. I found that sometimes it helps to add a bit of your own solder first in order to be able to wick up the rest.

Adam Gordon -

Could I possibly only replace the potentiometer instead of unsoldering the entire unit?

Peter Roome -

I broke my joystick R2 controller this can be repaired?

Devi Shree -

Great guide! I successfully replaced my joystick and it works perfectly. Definitely need a good solder iron, flux and a desolder pump.

tabitha roman -

there is differemce between ps4 and ps5 controller potentiometres...one is 2kOhm and one is 10kOhm so swappimg to another will make ur calibrations out of whack...so in theese comments people recommended ps4 sticks as replacement but those values would cause it to go out of whack....is there way to calibrate it without modboard or additional pot?

Riku Lehtonen -

Thanks for the guide! Definitely helped me out. I just wanted to add a comment because I think I have a different (possibly newer) version of the controller with a couple of small differences:

1. Starting in step 17, there are still four main ribbon cables to disconnect from the board, but they look slightly different and the ones on the sides of the board are narrower.

2. In step 24, there are two additional pairs of wires, 2 yellow and 2 green. They require the same steps as the black and red wires and there's even a Y on the board indicating which pad is for the yellow wire. Just desolder them and resolder them when you're done and you'll be good to go!

Adam Gordon -

Can this also be done with the V2?

name -

Is it possible for consumers to send defective controllers? We'd we willing to pay ifixit technicians for services like joy stick replacements with Hall Effect Upgrades and calibration.

Minh -

this is a little off from the norm but do

they make an adapter for the analog sticks so they can be flipped like a victrix controllers

johnathan0291 -

Grazieeeeeeeee

Avery Pellanda -

I've been practicing desoldering these things on old junk controllers while I wait for my joystick replacement to arrive and I've noticed I just can't seem to get all the solder out and so far, even using a solder wick. I can get it to a point where all the prongs look entirely clean, but the stick won't come out and I'm afraid of the fumes from melting the plastic by working on the other side of the board.

KeybladeSpirit -

Hallo ich habe eine Frage und zwar habe ich meine analog Sticks ausgelötet und danach alles mit Isopropanol gereinigt . Danach hab ich den neuen Hall Effekt Stick eingelötet und die Platine an einem gamepad Tester getestet.

Nach links und rechts steht der Stick perfekt nahezu auf null aber nach oben und unten steht der Stick auf Achse -1 und reagiert gar nicht.

Was hab ich da falsch gemacht?

Hardy 91 -

Thanks, the instructions were great, and now the stick drift is gone.

Leon -

kann man auch die sticks in den modulen tauschen oder sind dazu andere nötig?

Stefan Pirsch -

Thanks for the guide. Could you add a note to the PCB removal section about the rubber hole liners in the four corners of the PCB? They fall out easily and I just narrowly avoided losing one.

I also found a solder sucker to be ineffective. I used a hot air rework station set to 450f while pulling gently on the joystick to be removed and it came out peacefully after about 45 seconds. After that I used solder wick to clean up the holes. It’s not a tool that most people will have, though there are cheap ones on Amazon, but I wouldn’t have been successful without it.

Brian Josephs - 19/11/24

Even with experience soldering and de-soldering, for me the original joystick was very difficult to remove. Maybe with a hot air station it should be much easier. An important thing to know is after replacing the joystick you need to calibrate it because most probably it's going to be off its center. To calibrate it you can use the tool DualShock Calibration GUI from https://dualshock-tools.github.io/. Use Chrome or Edge, Firefox didn't work. After calibrating the joystick it works like it should. To calibrate it, first you need to connect the controller to a PC using a USB cable.

Franchesco R -

I've had issues after replacing the joysticks, but not with the joysticks themselves. It seems all the other buttons will randomly function even when not being used causing unintended turning on, spamming dpad, face buttons, bumpers and triggers. I removed all cables and motors before completely the installation, anyone else have this experience?

Josh Sadoway -

Just finished this repair and bought a heat gun from iFixit specifically for this repair! It was cheaper that buying a new controller plus it seemed like a fun/helpful tool to have around for other repairs.

I do not think I would have successfully gotten the original sticks out without the heat gun. I think a "hot air rework station" would have worked better than the heat gun I got. They look like they can push heat to a smaller area whereas the "gun" hits a broader area. Worth nothing that I also totally decimated (melted) the plastic hookup for the bottom mic but the controller still works fine without it!

Joel Gillman -
