PlayStation 4 Slim optisches Laufwerk austauschen

Geschrieben von: Hernan Rodriguez
  • Kommentare: 88
PlayStation 4 Slim optisches Laufwerk austauschen

Schwierigkeitsgrad

Mittel

Schritte

16

Zeitaufwand

10 - 15 Minuten

Einleitung

Diese Anleitung zeigt dir, wie du das optische Laufwerk deiner PlayStation Slim austauschen kannst.

Hinweis: Wenn dein Ersatzlaufwerk ohne Flachbandkabel ausgeliefert wurde, dann musst du die Kabel vom ursprünglichen Laufwerk übertragen.

  1. HVTGYelJeUQRNBTL
    HVTGYelJeUQRNBTL
    6Z3td3NoCXXHhZQI
    4ybs2g5RHLPUHZ6a

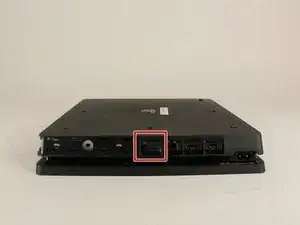

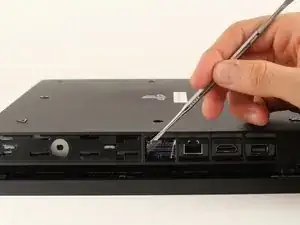

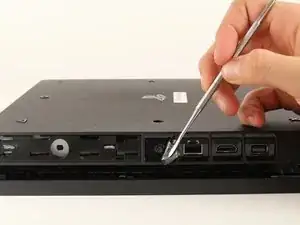

    • Finde den Garantieaufkleber aus Plastik in der Nähe der drei Anschlüsse auf der Seite der Konsole.

    • Löse den Aufkleber mit einem geeigneten Werkzeug ab.

    • Die Garantie wird durch das Entfernen des Aufklebers NICHT beeinträchtigt.

    Remove the screw directly to the left of that one in the picture as well. Should be silver.

    Elizabeth Johnson -

    ihr seid so ein scheiß haufen das stimmt über haubt nix

    Toaster 95 -

    einfach alles stimmt nicht

    Toaster 95 -

    Quitar la pegatina anula la garantía en España al menos

    Ana y Francisco -

    So becore you start on this guide if you read the comments at the last step, this guide is geared more towards repairing of the disc drive not replacing the entire optical disc drive, i have done mine already and the guide does help get you halfway there but you are gunna need a bit more to pull the entire disc drive out, i will post another comment on the last step so you can follow these steps and then mine to further reference from that point on. See ya on the last step of the guide 🤘

    Walter Gamboa -

  2. iuwUc5FNjBXlxWDZ
    iuwUc5FNjBXlxWDZ
    NddVVDLyNaEUIPME

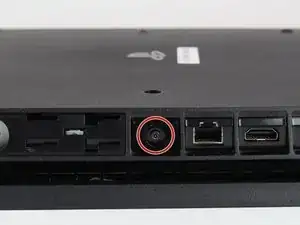

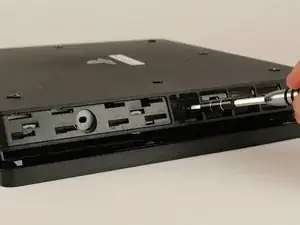

    • Unter dem Aufkleber ist eine 5,0 mm Torx TR8 Sicherheits-Schraube verborgen. Drehe sie gegen den Uhrzeigersinn heraus.

    Are you SURE that it’s counter-clockwise?

    The Stuff -

    Try T9. Fits better.

    Otter -

    T8 fits like a glove for me

    Daniel Henderson -

    Is there anything else you can use

    randomweeb -

    A small flathead screwdriver will work

    shawng6363 -

    There is a small metal rod in the middle of the screw that isn’t allowing my t8 inside. Any insight on this?

    gavinstoutconner@icloud.com -

    Some T8 bits have a hole in the middle that will allow that rod to go through; some do not. If you have a set of multiple bits, check if there are any others labeled T8 or TR8 with that hole in the middle.

    Nicholas -

    There is a metal thing inside of the screw slot any insite on this?

    Tristan York -

  3. SlFEBbB2b3bIl6BX
    SlFEBbB2b3bIl6BX
    oRDOW1Bq6YK4gBJW
    Qs6ybIWcbq4tnNZZ

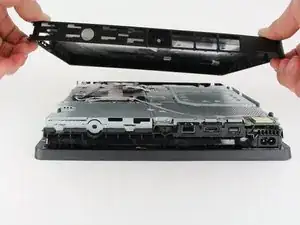

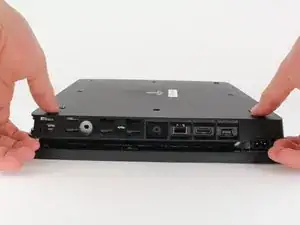

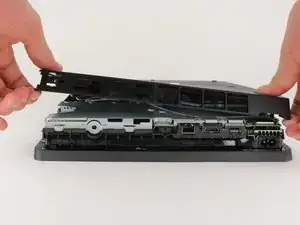

    • Lege die Playstation 4 Slim mit der Unterseite nach oben, so dass die Seite mit der eben entfernten Schraube zu dir zeigt.

    • Ziehe an den beiden Ecken, die zu dir zeigen, mit den Fingern hoch.

    • Das erfordert schon einiges an Kraft und du wirst ein lautes Knacken hören, wenn sich die Bodenplatte löst.

    • Schiebe die Bodenplatte in Richtung der Rückseite, hebe sie hoch und entferne sie.

    It says to place it upside down, but didn't you do so in the previous step? I've been trying to unscrew the screw with my screwdriver that I got from here and if I had to had the system right side up, I'm afraid I might've stripped the screw from all the force I tried to use to get the screw out that will NOT budge. It didn't even move the slightest after removing the warranty sticker.

    Vidal Santos -

    There is a single clip on the left side about 5cms in, and another clip on the right side equidistant to the one on the other side. Jamming a spudger in there first, and lifting those clips helped, and then I had to slide down to lift a total of 4 clips on each side (each about 4cms apart). Then push the cover away from you, if that makes more sense than “sliding it towards the back corners”, since the back corners are technically facing you.

    Emil Fisk -

    It would be easier if you just lifted the top cover of the PS4.

    Poobler -

    The earlier comment by Emil Fisk is spot-on. I found it impossible to remove the cover without first using a spudger to release the four clips on each side.

    midahed -

    I saw many video and tried it my self, you have to remove the hard disc before removing any cover.

    Bahaa CHEBLI -

  4. eG12cRbDuv1GVtZd
    eG12cRbDuv1GVtZd
    IZBxPl2oH5CkN4DP
    2SpqZiosbjQ2HxGj

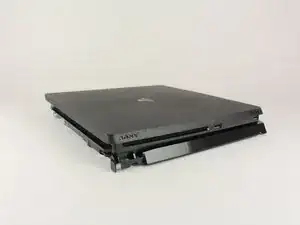

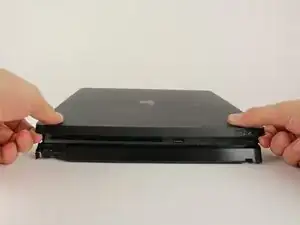

    • Lege die Playstation 4 Slim mit der rechten Seite nach oben, so dass das PS Logic oben ist und der Schriftzug "SONY" und "PS4" zu dir zeigen.

    • Ziehe die beiden Ecken, die zu dir zeigen, mit den Fingern hoch.

    • Das erfordert schon einiges an Kraft und du wirst ein lautes Knacken hören, wenn sich die obere Abdeckung löst.

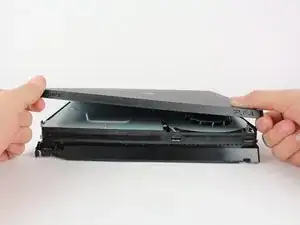

    • Schiebe die Abdeckung nach hinten und hebe sie ab.

    Undo 4 clips on each side by using a spudger. And then lift the front corners up and pull towards you to undo them.

    Emil Fisk -

  5. 3AeQgjbtK1pLrGkY
    3AeQgjbtK1pLrGkY
    iSoWBxqGEIukqO2C
    4Vw4unbMo24VFLiR

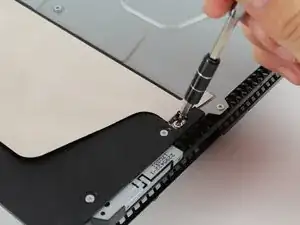

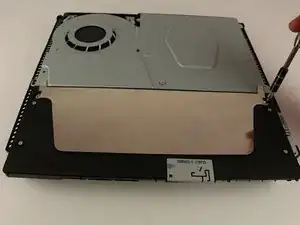

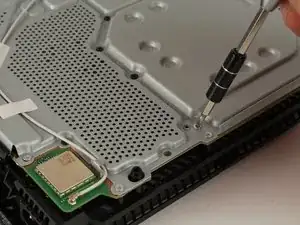

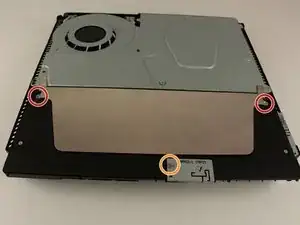

    • Drehe die beiden Torx T8 Schrauben heraus. Die linke ist 31,0 mm lang, die rechte 24,0 mm.

    • Entferne die 3,0 mm Kreuzschlitzschraube #1.

    UK model seems to be different here. There's no Philips screw where there is on your image.

    MaFt Morley -

    This regards EU models in general, i think. My danish version is the same.

    William Villadsen -

    The screw on the left was 31mm, and the one on my right side was only 19mm.

    Emil Fisk -

    CUH-2215B doesn't seem to have the top antenna screw

    Kenneth Beerman -

  6. HrP1ICwvSbBshwxh

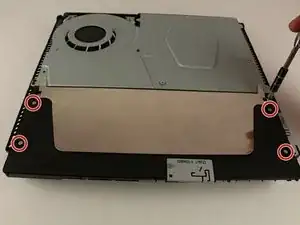

    • Entferne die vier 16 mm Kreuzschlitzschrauben, die das Netzteil am Gehäuse befestigen.

    Es gibt diese Schrauben bei meiner Ps4 Cuh 2116A nicht und ich bekomme das Teil so nicht raus. Kann mir jmd helfen?

    Julian S. -

    Only 2 Phillips actress here on my UK

    MaFt Morley -

    Only 2 phillips screws on the US one as well.

    Sean Douglas -

    I also only have two screws here in the US.

    Rachel Kelley -

    CUH-2215B has two T9 Security Torx screws on metal shield and two Phillips screws

    Kenneth Beerman -

  7. IELoveMUpqIKoH5N
    IELoveMUpqIKoH5N
    JfyvhNxHrQeavq3f

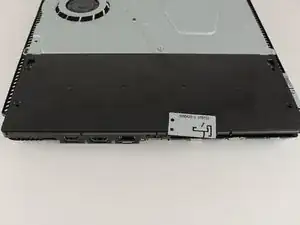

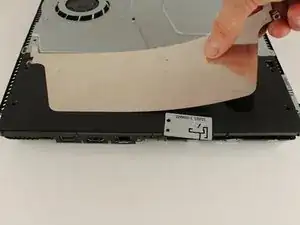

    • Hebe das Metallblech über dem Netzteil mit der Hand hoch und entferne es.

    Is this metal sheet required for the unit to power on?

    AlexT -

    I think the metal sheet protects the rest of the console or something from heating too much.

    BloodSpark22 -

    Kann man diesen Metallblech einzeln kaufen? Finde im Internet nichts

    SoN GoKu -

    A quoi sert la tôle métallique qui recouvre le ventilateur et l’alimentation svp

    Ittady92 -

    Que puedo hacer si uno de los tornillos que sujetan esa lamina está barrido y no los puedo quitar?

    Maalem -

  8. PNA4otMPJIQOHWDT
    PNA4otMPJIQOHWDT
    gTmbqA3sa4ExOM6K

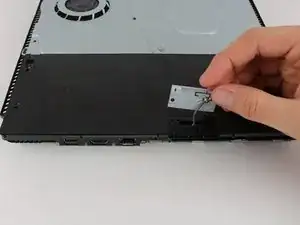

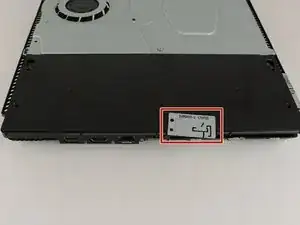

    • Führe das Antennenkabel oben auf dem Netzteil mit den Fingern durch die Rillen unter der Metallplatte und entferne die Antenne.

    What does this mean for part do? This part is not present in my console nor is the space where it's supposed to reside as shown in the picture above.

    The Hondo -

    Me neither, guess they are different models.

    Daniel Henderson -

    There was a longer clip 8mm long on the left side which had to be pulled straight out. However, be careful when pulling out the antenna. My cable was soldered to the metal plate.

    Emil Fisk -

    It is easier to wiggle the cable out from the plastic power supply housing in step 10.

    Emil Fisk -

    The model shown in this tutorial is the PS4 Slim CUH-2115, because it has the WiFi Bluetooth antenna attached to the PSU.

    BRG Kasumi77 Main Channel -

  9. xoXm3taPYINyFEjd
    xoXm3taPYINyFEjd
    IvVUKwfba1q3oWup

    • Lege die Playstation 4 Slim auf die Rückseite.

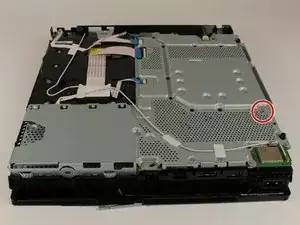

    • Entferne die 4,0 mm Kreuzschlitzschraube #1.

    Forgot to mention to remove the hard drive.

    The Stuff -

    it's usually pretty straightforward to remove the HDD first on any Playstation System

    Kenneth Beerman -

    How do you get it when the screw is stripped

    Lucas Holland -

  10. whHYWRP6SIDDsmug
    whHYWRP6SIDDsmug
    qUvGBKWo2LhFsk3m
    4WCDCpkIr6P2lECc

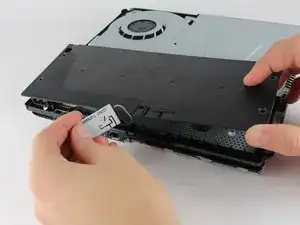

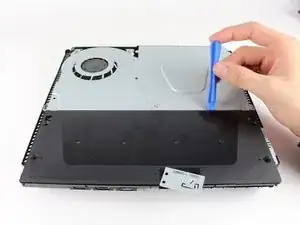

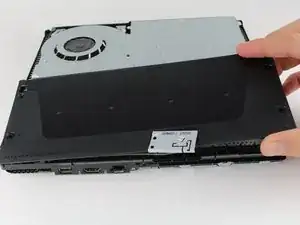

    • Zwänge ein Plastik Opening Tool zwischen Netzteil und Konsole, wackle etwas hin und her und vergrößere den Spalt dazwischen.

    • Hebe das Netzteil mit der Hand hoch auf seine Rückseite auf das Metallblech.

  11. TNOBblu5PIbOJR4B
    TNOBblu5PIbOJR4B
    GLVgk3vwjAfTVyGM
    PAndD6pDYuGxIrrA

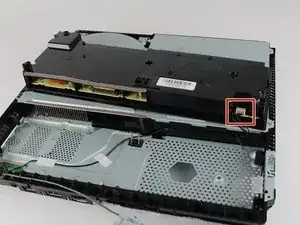

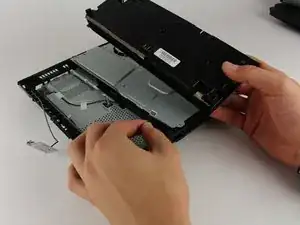

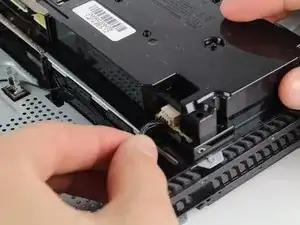

    • Fasse den Netzteil mit den Fingern oder einer Pinzette fest an, ziehe ihn heraus und löse ihn ab.

    • Hebe das Netzteil mit der Hand heraus und entferne es.

    Your guide is good but detail. Could be alot better for a start you forgot to mention the screw on the other side that must also be removed to let the power supply out of ps4 slim

    Chicky Boy3 -

    Could you replace a ps4 slim model CUH-211B with a N16-160P1A power supply

    Aiden Thrash -

    Just because I feel like this needs to be stated clearly, “Do no attempt to pull the plug out by the wires!”

    Pull from the plastic, male end of the plug or you’re going to end up have a very bad day.

    Matthew D. H. -

    Literally no way I can do it by the plastic, the only way is wires. Gotta risk it I guess

    Misha FV -

    You are right, pulling the wires is entirely wrong. I used the small rectangular, thin blue plastic to push the cable back from the socket. It was too tight. From my experience of repairing, never pull wires. The consequences of damaging it are not worth it.

    El-Musleh -

    This cable is very hard to remove from the connector. It's much easier to unplug this cable from the motherboard side (in step 20) because you can push the connector out from behind. (This might only be true for some motherboard revisions.)

    You can leave the power supply propped up on top of the console, like shown in the first picture. After you've unplugged the two cables in step 13, you can put the power supply back where it was to make flipping the console over easier.

    Jak Atackka -

    This is about where I'd give up

    Shane Lucey -

  12. o3UAlRGEGfbskNBu
    o3UAlRGEGfbskNBu
    UOdNnvSQDNNlDUZH

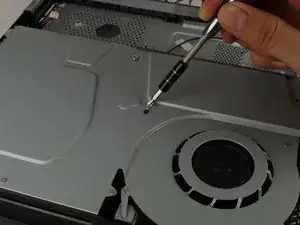

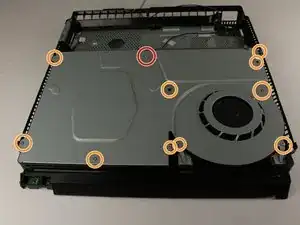

    • Entferne die 31,0 mm Torx T8 Schraube.

    • Entferne die zehn 10,5 mm Kreuzschlitzschrauben #1.

    I have a ps4 model CUH-2215B and all the orange screws were replaced with molded plastic pins. They don’t come out. I could rip the heads off with pliers or something, but idk how it would go back together.

    Reed Deemer -

    I have the same model as you and was stopped by this discovery, what i would try to do is remove them with pliers anyway and just use some spare small screws in the holes and see if that works, but I think no harm would happen if you just leave them out since it’s just a plate being held on and no important components are being held in place exclusively by the black pins.

    Anurag RB26 -

    Many of the screws were replaced with plastic rivets. Just use a straight head jewelers screw driver or very small chisel to shear off the head of the rivet by hitting the screw driver or chisel with a hammer. Be sure to keep the screw driver or chisel on a steep angle so not to place force down into to console. No need to replace them when re-assembling, They are not needed.

    bsey60@yahoo.com -

    Anyway of ur gonna clean ur ps4 , it's better to remove the bottom one , u can get the motherboard without even touching that cover , it's not so necessary

    sherlanmamaril -

    • Wenn anstelle von Schrauben einige schwarze Kunststoffnieten eingebaut sind, dann entferne sie mit einer Zange. Sie sind nicht unbedingt notwendig.

    The PS4 Slim CUH-2215B has plastic rivets instead of screws!

    BRG Kasumi77 Main Channel -

  14. cRWcBdWIa2Iq5gGI
    cRWcBdWIa2Iq5gGI
    g3FgPIxRlKeAkmr6

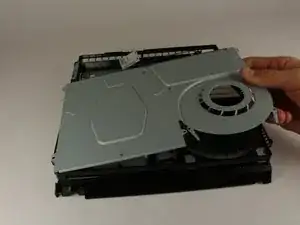

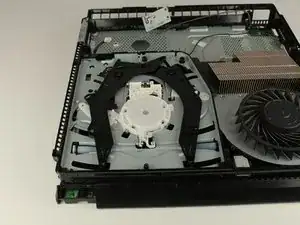

    • Fasse die Metallplatte mit den Händen an den Kanten, hebe sie hoch und entferne sie.

  15. 1Bd2BZFivnHLvrQR
    1Bd2BZFivnHLvrQR
    IKYmXUHMolCssKL6

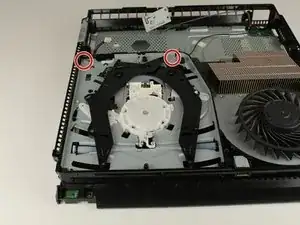

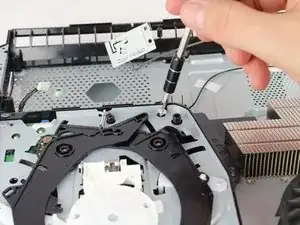

    • Entferne die beiden 3,0 mm Kreuzschlitzschrauben #000.

  16. klauwEXe5RRANKma
    klauwEXe5RRANKma
    U5BWE4Xed3tH2ASK

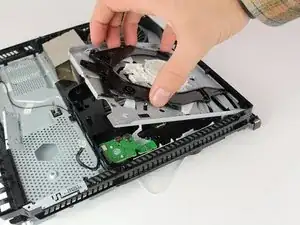

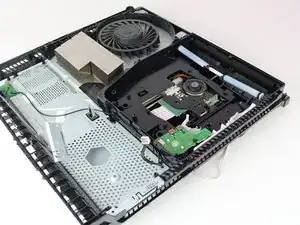

    • Drücke die schwarzen Plastikrasten auf jeder Seite ein, hebe das Laufwerk hoch und entferne es.

    Naja, etwas unvollständig, das Laufwerk ist ja noch drin.

    Alex -

    Where is the part number so I can order the exact fit? I have a older ps4 not the pro

    Neto Rosas -

    This guy is incorrect unless you plan on breaking off all of the rivets, and replacing only half of the disk drive. Proper replacement requires full disassembly

    Ender -

    How do I identify the part no’ for replacement please?

    Pete B -

    This guide is only for replacing the disk loading system not the entire drive.

    Drew B -

    Die Anleitung ist unvollständig und hört auf wenn es erst richtig los geht. Das Laufwerk ist noch drin und die Konsole muss restlos entkernt werden. Wärmeleitpaste sollte zur Hand sein. Bitte bitte ergänzt das noch. Es suggeriert das es deutlich einfacher ist, als es ist.

    jan hofmann -

    شكراً!!!!!!!!!!

    GABBAR GAMR -

    SO basically I just wasted my time reading this whole guide only to find out it's not to replace the whole drive?

    Nice.

    Bullet Baxter -

    Ich musste letzt endlich die komplette PS4 zerlegen, um das komplette Laufwerk zu wechseln. Bitte hier nachbessern.

    Walter Söffky -

    This yet another not fully completed guide. This is NOT a full disc drive replacement.

    William Loggarakis -

    What a shame. What is this. Taking half of the disc drive... is not the disc drive

    Siim Arnisto -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
