Samsung Galaxy Tab A 10.1 Ladebuchse austauschen

Geschrieben von: Isabella Li
  • Kommentare: 40
Samsung Galaxy Tab A 10.1 Ladebuchse austauschen

Schwierigkeitsgrad

Schwierig

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

Hier wird der Austausch der Ladebuchse gezeigt.

  1. GZ2Pki1FpHlvCO3S
    GZ2Pki1FpHlvCO3S
    5VJRorbfRR23MCuC

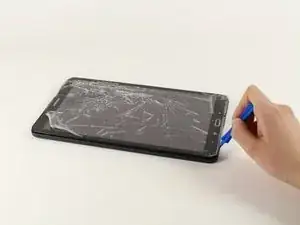

    • Lege das Gerät mit der Vorderseite zu dir.

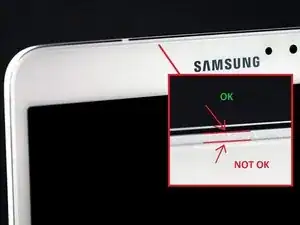

    • Fange an einer der abgerundeten Ecken an. (Vergleiche mit Bild 2).

    • Setze ein Plastiköffnungswerkzeug zwischen Vorderteil und Rückteil.

    • Wenn ein Plastiköffnungswerkzeug nicht funktionieren sollte kannst du es mit einem Metallspatel probieren, dies könnte allerdings den Kunststoff beschädigen.

    • Denke dran, dass du als erstes eine eventuell vorhandene micro-SD-Karte entfernen musst.

    AWESOME!! I was trying to open it from the “NOT OK” place and you saved me to broken the screen… thanks!!

    David Leiva -

    No problem, enjoy.

    Roger L. Ortiz -

    Felt it was easier for me to do it from the middles out.

    Tanin Garcia -

    @rogerlortiz You two seem to be miscommunicating. The author points out the location between the digitizer and frame in which to place a tool. While @Tanin Garcia, whom no longer seems to be member, was pointing out where along the edge from corner to corner it was best to start the separating process.

    B. A. Computer Services -

    Important: the display is sourrounded with a plastic frame. You need to get beween this frame an the backcover (not directly at glass edge as I tried it first and almost broke the glass). Get a closeup picture of it to clarify.

    Oliver Dawid -

    wer lesen kann, ist klar im Vorteil - ich hab die SD-Karte drin gelassen. Hat aber funktioniert…

    Thomas Wolter -

    Don’t use a very small flathead screwdriver as a spudger. Just shattered the screen :(

    nikvoss -

    Yes, shattered the screen. To the garbage, it goes. A little knowledge is a dangerous thing. This a repair better suited for a professional repair! Thanks for helping me make the decision to get another one!

    vancega -

  2. FEt6AIIjfR5mPXQH
    FEt6AIIjfR5mPXQH
    SOQODCRyQZlwVvj1

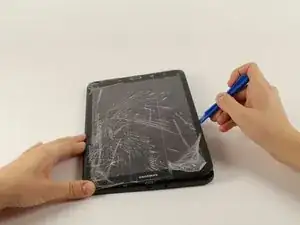

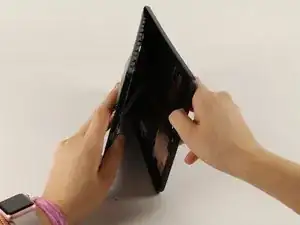

    • Wenn du das Werkzeug einsetzen konntest, dann schiebe es rings um das Gerät, um die Teile zu trennen.

    • Hebe den Rückdeckel vom Gerät weg.

    • Beim Öffnen wirst du klickende Geräusche hören.

  3. aKoSIwKnMC1lAyYP

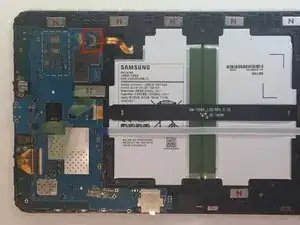

    • Entferne den Klebestreifen und klappe den Sicherungsbügel am ZIF Verbinder des Akkus hoch.

    • Schiebe das orangene Flachbandkabel zum Akku aus dem ZIF-Verbinder heraus.

    BEWARE!!! later on Samsung tablets the tab holding the main cable (marked “MAIN”) breaks as soon as you attempt to lift the tab to remove the ribbon! I reckon Samsung designed this breakabloe tab to not only avoid the warranty, but the render the tablet useless!

    graham chapman -

    Happened to me also, in order to replace that broken tab, do you think it will be necessary to replace the motherboard? I highly doubt we can find the parts to fix (replace) the flip-tab.

    jeanuhlik -

    I also had this problem, the connector broke, even if i was very careful, i still can use the tablet, i pushed the “main” cable in place and used a little bit of hotmelt glue to hold it in place.

    Yannick -

    I tried using aluminum foil to make the connection but it didn’t help at all, how did you attach it with the glue gun???

    jeanuhlik -

    LOOK what I found!!! its the replacement for the connector we broke!!!https://www.parts4repair.com/samsung-gal...

    jeanuhlik -

    i just wonder how u gonna solder this tiny thingie

    Mike Muley -

    I wish I had read this thread before I removed the cable and broke the connector. Unfortunately I have not been able to reattach the cable and my tablet is dead.

    If there is no way to remove this cable, why is this fix even posted here? I find this exceptionally uncool!

    Derek N. Eder -

    Whoever broke the connector was trying to open it the wrong way. I have oil spilled in mine after I replaced my screen and digitizer together if you only replace the screen it is more difficult. I say changing both together is simpler. And I will share a pic either way I just might mess up MY connector. To be continued

    909 -

  4. 1OplFVIHHB6iE5cO
    1OplFVIHHB6iE5cO
    rwOOcqLwpiM2JFMo

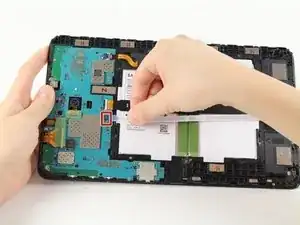

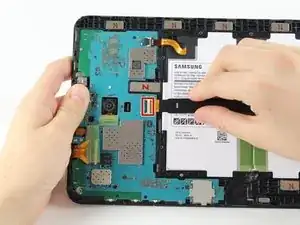

    • Entferne den Klebestreifen, hebe den Sicherungsbügel hoch und ziehe das weiße Flachbandkabel zum Lautsprecher heraus.

  5. 1uZdAEXRWTnJfwkc
    1uZdAEXRWTnJfwkc
    QNlFwvR4JP4LMckg
    vBRRQDtXcrOZQgDV

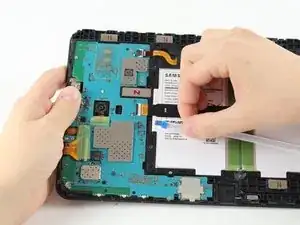

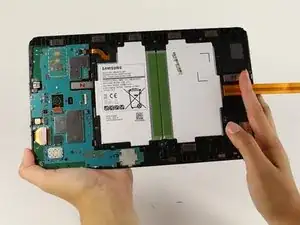

    • Hebe den Sicherungsbügel hoch und ziehe das schwarze Flachbandkabel zum LCD heraus.

    It's possible to replace only the lcd cable connector? Ist das möglich nur das Flachbandkabel zu tauschen?

    Lima -

  6. O4bvieDFdNTtVvWS
    O4bvieDFdNTtVvWS
    pSQTogUPIWyaBqa3

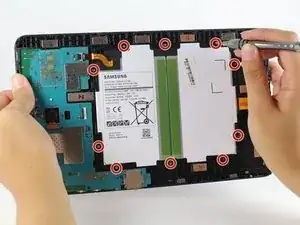

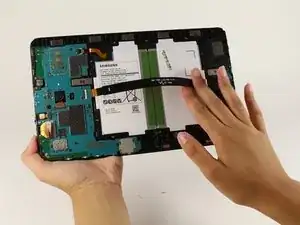

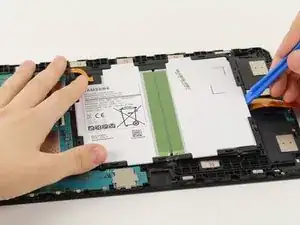

    • Der Akku ist mit zehn 4 mm Kreuzschlitzschrauben #000 gesichert. Drehe sie heraus.

    • Schiebe ein Plastiköffnungswerkzeug unter den Akku in der Nähe der Lautsprecher und hebe ihn hoch.

    • Der große schwarz-weiße rechteckige Block ist der ganze Akku. Beschädige ihn nicht.

  7. fPglWd16CqrfTnPk
    fPglWd16CqrfTnPk
    Ixaqq2Rd5qpRFqsy
    xE4TWX2YDWswXU6Z

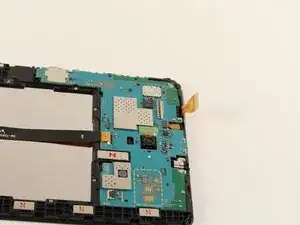

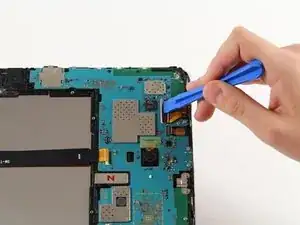

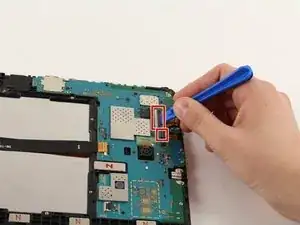

    • Klappe die Sicherungsbügel an den beiden ZIF Verbindern auf der Hauptplatine mit einem Plastiköffnungswerkzeug hoch.

    • Schiebe die beiden orangenen Flachbandkabel aus den Verbindern heraus.

    • Entferne die Frontkamera.

    This step omits the disconnection of the battery from the motherboard , which is shown disconnected in this picture but was connected in the previous step

    Christopher Ford -

    Thanks for bringing this to our attention. We added the relevant battery disconnection steps—hope this helps!

    Kristen Gismondi -

    If the model you are working on is the T585 you will need to carefully pry up the blue antennae cable and disconnect the sim card slot from the motherboard.

    Brendon Gould -

  8. ZeXlPco1GFY2fcas

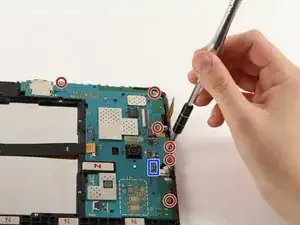

    • Trenne die Kopfhörerbuchse von der Hauptplatine ab.

    • Entferne sechs 4 mm Kreuzschlitzschrauben #000.

    die ganze Platine musste ich gar nicht ausbauen. Ich konnte die Kopfhörerbuchse vorsichtig mit einem kleinen flachen Schrubendreher lösen.

    Thomas Wolter -

  9. sR1EQqLISYUKoWBI
    sR1EQqLISYUKoWBI
    ZWuKRRPlJL6FGDYS

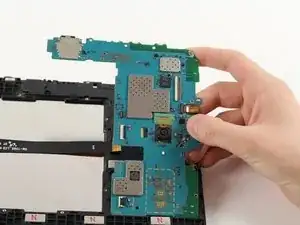

    • Setze das Plastiköffnungswerkzeug unter die Hauptplatine und hebe sie aus dem Tablet.

    • Achte darauf, dass sich keine Stecker verfangen.

    • Entferne die Metallhalterung unter der Ladebuchse und lege sie zur Seite.

    Replacing the broken screen, I stupidly unhooked the LCD with a metal screwdriver. It makes the sound of coming on but no picture. Is that the motherboard?

    MARGARET -

    I replaced screen once before and had no problem except using a screwdriver this time.

    MARGARET -

    I have tab a charging and show on screen but not starting at all motherboard water damage I clean all there any way make it start by motherboard with out power button

    waleed nawzad -

    Just ship it to me and it will be fixed for no charges

    CHISOM NWAFOR -

    TIP: Before next step (or sooner), cover cracked/broken glass with transparent tape to avoid (I didn't) or minimize small shards of glass falling into work area and onto your clothing.

    Bruce Grant -

  10. C2I1OYnhIZjMNQrG

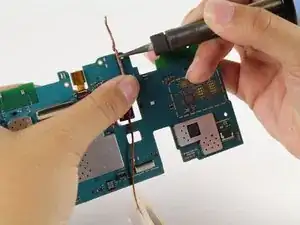

    • Lege Entlötlitze auf eine der vier Lötstellen am oberen Ende der Hauptplatine.

    • Setze den Lötkolben auf die Entlötlitze und entlöte so die Lötstelle. Wenn du unsicher bist hilft dir diese Anleitung .

    • Wenn die Litze nicht mehr saugen sollte, dann nimm ein neues Stück der Litze.

    • Wenn es dir schwer fällt die Ladebuchse zu entlöten, dann erhitze die ganze Platine mit einem Heißluftgebläse. Unter der Ladebuchse befinden sich kleine rechteckige Kontakte, die beim Erhitzen verrutschen können. Sie müssen wieder an die gleiche Stelle zurück.

    • Sei vorsichtig mit dem Lötkolben, du kannst dich verbrennen oder die Platine beschädigen. Lege die Platine auf die Arbeitsfläche und halte sie nicht mit der Hand - anders wie im Bild gezeigt.

    Please be sure not to hold the soldering iron by the hot end as shown in the picture

    Michael Wilkosz -

  11. ePb64x1sc1bHDgPZ

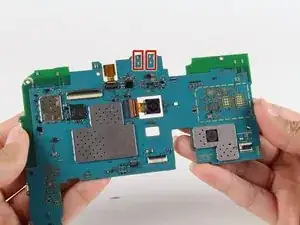

    • Wiederhole für die anderen drei Lötstellen.

    • Hebe das kleine graue Metallstück aus dem Gerät.

Abschluss

Um dein Gerät wieder zusammen zu setzen musst du ein neues Metallstück dort einsetzen, wo das alte war, und an der Hauptplatine in den vier Löchern auf der Rückseite der Hauptplatine festlöten.
