iPhone 7 Plus Frontkamera und Sensorkabel Austausch

How do you turn off if the screen isn’t responding to touch?

The replacement battery came with the seal—but how do you put it on???

Instructions for replacing the seal are here: Austausch der iPhone Display Klebestreifen

I just found the instructions on how to install the seals AFTER I was completed and had to figure it out. Maybe, just maybe you should link this somewhere on the guild instead of buried in a comment. Just a thought.

Step 1 is: Read through all the steps and comments or the method prior to starting on this Step 1. There's a lot of much needed information and experience that you can learn from which will reduce the chance of struggling, wasting time or even breaking your device.

My favourites are:

Use a hot water bottle.

Label all screws you remove with their size and location on a piece of paper with double sided sticky tape.

Test the lightning assembly at step 13

There is a Standoff driver bit in the box, don't use a screwdriver.

etc...

A tip for looking out for all those little screws. I used an ice block tray, for all the little screws etc. I numbered each with the step number, as in the instructions, but not all steps have bits to look out for. Where two different size screws are used I had a tray for each size and marked step a and step b. For this I coloured each tray sticker with the colour of the screw as shown in the instructions. All this worked a treat with no confusion or using the wrong part.

Herb

The screw size for those with a screw set is P2.

My AliExpress refurbished screen came with a pick that has a coin-like circle that pops out, so no modification was necessary

It's not an Ifixit KIT if it doesn't include everything. You'll need to order the opening pic separately. Or head to Walmart like myself and look for guitar pics. Hopefully, this will work just as well.

No pick in mine as well. It’s really not clear that you have to order this separately when ordering an IPhone SE 202/2022 screen repair kit. Is this the case?

Frustrated, I ordered a compact package where everything was encapsulated. Useless suction tools could not separate the screen. If it is unable to decouple the screen, then why sucking suction tools you have provided.

For my kit the triangle pick was stuck inside the box with the screen not with the other tools maybe it's also there for you

Y’all are getting far, FAR too detailed with some of this stuff…. Measuring and marking the pick that you won’t actually use to open the device?!? lol that’s kinda funny. Just heat it up, grab a spudger, and the back just pops right off! The iFixit tech need to stick to the KISS method more often, you know KEEP IT SIMPLE STUPID!!! Like l, for reals, I’ve been doing this stuff for YEARS and using iFixit guides regularly and this is just ridiculous at this point!

Will the phone still work if the sensor assembly on the back of the screen is damaged?

I don't have a pick, but how much better are these picks than an old credit card for opening an iPhone 13 mini?

The pick in my iFixIt kit was packed with the battery, not with the rest of the toolkit.

If you don’t have an “iOpener” or heat gun, try using an electric heating pad. I have a small $11 pad I got at CVS for my knee. On medium heat it worked fine for removal and with the “pennies” for setting the new seal.

I used a heated tea kettle and a tea towel, it worked!

I put on the furnace vent for 10 minutes to get it warm to the touch but not hot.

I attached it to the after burner of my rocket ship and that worked.

I used a water-filled ziploc bag, heated it in microwave. fast, cheap, worked.

The most effective way to heat up the glue is to leave the phone in full sun - if it's available. In fact I would always wait for a sunny day to repair any glued together Apple device. The heat will be very even and the phone was probably designed to survive anything the sun can throw at it - although it can get very warm. (I'm in the UK) If you leave the phone turned on it will give a warning if it goes near the temperature limit.

I'm sorry but I tried both the hair dryer (for 3 minutes!) and the eye opener (also 3 minutes) and no luck. Not even a hint of loosening the adhesive holding down the display!! Do I send this kit back for a refund or what??!!

No luck, guys. 3 minutes of hair drying and 3 minutes heating up the iopener. What next?

Okay, a half hour later i finally got the screen loose, but not after super heating it for at leat 10 minutes with a hair drying and burning my hand trying to pry it open. Also, watch out for the power button because it inadvertently keeps switching the phone back on while you wrestle with it. More later . . .

. . . and now I need to buy a new phone!!! the cable broke as I was trying to unscrew one of the top screws, so thanks! I FIXed IT but Good!!!!

Nate B's advice was key. I couldn't get the temperature of the display hot enough to break the seal with a hair dryer. A heat gun set to low speed and 550F (287C) got the display up to just over 130F, close to the 60C Nate mentioned.

This part was actually much easier than I thought. I used a hair dryer on max for 2 minutes on each side of the phone, less than half an inch away from the phone, just on the bottom half. It was hot! Screen came right out!

I used a tube sock full of about 1 cup of white rice. Tied a knot in the top of the sock. Put the sock of rice in the microwave on 60% power for 1 minute. Kept doing this until the temp felt right. Put the sock of rice down, put bottom edge on sock, then covered w/ other half of the sock/rice. Put a piece of paper towel between phone and sock/rice to absorb any moisture. When lifting up on front panel, I rested the phone on the sock/rice. Worked nicely once I got the temp of the rice high enough.
(threw the rice away later :-) )

“Threw the rice away later” has to be the best advice here. I wrapped my phone in a small heating pad and turned it up to 6 of 8. Worked great in 5 min or less! No need for water bottles, microwaves, heat guns, volcanoes, …. I kept the heating pad later ; )

I popped my iPhone under a desk lamp with a 60w filament light bulb in it, switched it on, (See this photo) then read the iFixIt instructions and comments. By the time I’d done that, the glue had softened enough to start work. I managed to do the whole process, slowly and methodically, without incident. The iPhone even worked after I’d put it all back together. So we’ll done iFixIt. Another satisfied customer!

Get a suction cup pliers. It’ll make this part fun

iSclack EVO opened the iPhone easily even without heating with no fear of accidentally over-opening it like with a simple suction cup.

If you don't have the anti-clamp device, to prevent the screen from tearing open when suctioning it, I suggest some layers of tape around it and the back of the phone (the tape has to be stretchy enough to just minimise the momentum when separating the screen), or some big rubberbands

This was the time consuming part. I’d recommend having a thin bladed knife or similar to get things going. I used the small blade on my Swiss Army knife, but be careful. When it goes, it can be unexpectedly sudden. I also used a strong rubber band to stop any excessive opening of the screen.

Be really careful here. I placed a sucker to the front and rear to help lever off the screen. However, the whole thing came away much easier than I anticipated and I ripped the front part completely away from the rear, tearing all three connector cables. New iPhone required.

Note that the opening pick they show here does not appear to come with the kit, which is a bummer! The plunger, the mini blue crowbar thing, these are too thick. I ended up using a really thin guitar pick.

Following careful methods can mostly preserve the seal and reusable. Won’t be as water tight but probably still pretty good.

Bottom edge is pull up with suction + separating tool. Use small precision scissor to cut any tape that gets overly stretched upon initial opening.

- For the 2 long edges, use an exacto knife to separate the seal from the screen. This keeps the tape on the chassis. Go slow along the long sides. Becareful to avoid scratching the paint on underside of the screen’s edge.

- Top corners have a thick sealed tape. Best to just use separating tool to twist it open.

In summary, top and bottom edge use separating tool. Side long edges can use exacto knife to gradually gently separate the seal from underside of the screen’s edge.

4 picks and an exacto knife, plus 45 minutes later, I finally got it to open! Thanks tor the tip!

Intact screen, check. Tool kit, check. Hair dryer hot enough to make the phone too hot to touch, check. Following all instructions, check. Screen still in place and refusing to come off, check.

I heated, reheated, pulled and pulled. I simply could not get it off. Worked at it for an hour and a half, and I’m not a small guy. Yes it is hard to hold, but could get a grip. Just could not get it to budge. Off to the iPhone repair shop tomorrow. Anybody want to buy a repair kit and replacement battery?

After struggling for 30m, I looked up some alternate methods and found this helpful:

https://www.youtube.com/watch?v=25zAK5mG...

- I used a utility knife and pried up right under the home button

- the angle matters! I was trying to go too far down before going in. The top surface of the phone is rather thin, so you go in after barely getting under the chassis lip

- tilt utility knife left to right once you’ve got it under to work it in

- leave the utility knife in, and now add that pick

Pro-tip: don't be an idiot like me. Instead, remove the screen protector you have on the phone before applying the suction cups. Derp.

I struggled with a hair dryer at first and a singular suction cup. However, I tried putting packing tape on the spot where I put the suction job (even though my screen isn't cracked) and I was able to do it first try with ease. Definitely recommend packing tape.

Suction cup pliers. Dead easy

After successful screen replacement, returning to give my thanks here. Excellent tips from you all - if you’re using force, you’re doing it wrong. Heat, very very gentle exact-o knife barely down then fully under the screen below the home button … perfect. Slow and patient around the upper corners, and don’t forget to heat there as well! Thank you all!

The problems with this step are (1) not having three hands and (2) managing to hold the phone in a way that doesn't put reverse pressure somewhere else on the screen. Exacto knife was the best tip. It's a little dangerous. On a misstep you may scratch the screen or jab yourself, but it's what got me in.

sorry, could not lift off the display any nano-meter even after applying enough force I think and heating it up. need to visit a store.

I used a razor blade and plenty of heat, and it somehow worked like a charm at the cost of me cutting myself. Definitely be careful when doing this, I used the razor blade on the left side of the iphone then wedged in a small screwdriver and then used the pick to cut the rest of the material away.

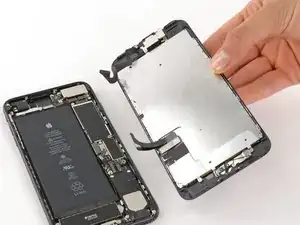

DO NOT LAY THE TWO HALVES FLAT!!! There is a reason why the third photo shows the screen half leaning against a box! This really needs to be a warning in addition to the one about not separating the display.

If you're skipping the screen and taptic engine removal like I did, I suggest you tape the back of the phone to the table, and also tape the screen to the vertical object it lays on, so it stays still. That way you will avoid having to constantly readjust it because of the sliding of the housing of the phone when you're working on it. Be careful where you're putting the tape on the screen though, if you're doing it on the internal components.

my screwdriver will only remove the 2.6mm screw and not the others, what shall i do?

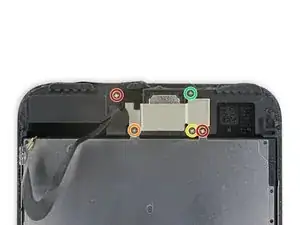

A tip to remember which screw is which as the differences are pretty tiny: I used different colored sharpie fine-points and made a mark on the top of the screws before removing. I thought about having strips of tape that I stuck similar sizes to, but the coloring seemed to work more easily. I only did this for step 11 and it saved me down the road when trying to differentiate the 1.2 and the 1.3mm screws!

STOP! Before you remove Any screws, be sure to create several bins to hold the various sizes in… or mark them like Trey suggested. I failed to pay attention because I thought they were all the same… they are not. It is very hard to figure out the sizes if you remove them all and store them in a single location.

i had a piece of paper with the steps numbered that involved screws. I had double sided tape on the paper and the number of screws and thier position marked. This was so helpful in removing and then finding and installing the tiniest screws on earth. And i have TINY hands. I can’t imagine someone with large paws being able to accomplish any of this.

there is one screw thats 1.2 mm but its bigger than the others and will fit in no hole of the entire phone. i got it out bot now i have no idea where it has to go i tried every hole. can somebody help me?

what do i do if one of the screws dont want to come off

I was having a hard time removing one of the screws before I discovered the tip of the screw driver that comes with my replacement battery had already deformed. However after I switched to a better screw driver the screw came off easily. Make sure the tip is in good condition, and avoid those cheap drivers if possible.

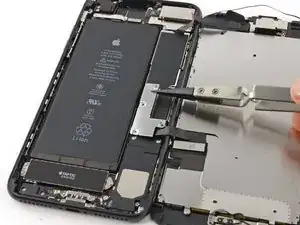

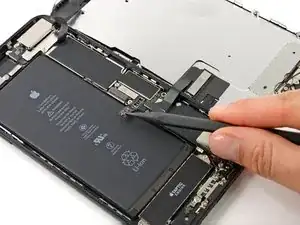

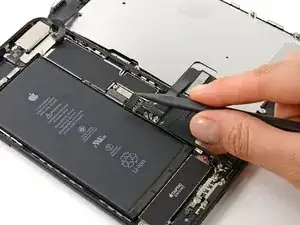

I had to use a fingernail to dislodge the bracket. As Jeffrey said, it was apparently stuck to the connector.

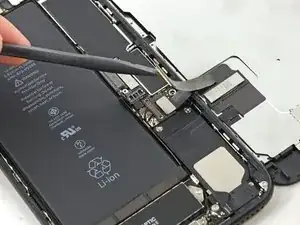

After this step it is worth jumping to step 36 and disconnecting the lighting connector assembly (indicated with the orange rectangle) and connecting the new cable to test it out. After attaching the new lightning connector assembly, reattach the battery, and try plugging it in to see if the new assembly works correctly. If it does, then power down the phone, disconnect the battery, and disconnect the new lightning connector assembly. Then continue. If it doesn’t work, this check will save you a couple of hours of work.

When I removed the lower display cable bracket in step 12, the top connector stuck to the bracket and became disconnected.

Bent the pins on the connector out of place, worked them very carefully back with fine nose tweezers. This was by far the crux of the repair for me.

Hello is it if I put wrong screw can damage the board?

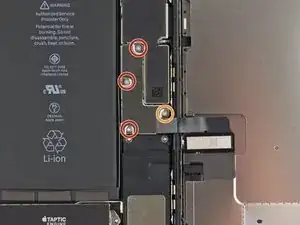

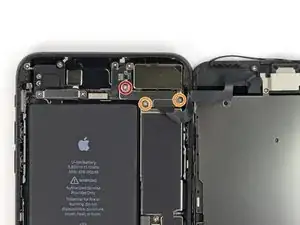

I was able to remove the first 1.0 mm three tri-point Y000 screw from the bracket but I cannot for the life of me get the other 1.0 mm screw undone or the one 1.3 mm screw undone. Any tips?

I tried pressing down a bit harder and I even put the first screw back in to see if it helped me loosen the other two but it did not work.

My screwdriver was doing the job up until this point, and I’m worried I’ll strip the screw if I keep trying.

Would appreciate any advice!

Dear IFixit: First, I want You to know I love your repair guides. I consider You to be the absolute best repair manuals available. But, hopefully as your friend I am going to point out once the bracked is removed a 2.0 mm Standoff screw should appear. It’s 1 of 2 screws holding the Antena Flex Cable in place. Rob

I did not remove the display and ended up ripping one of the lower display cable ribbons when I turned the phone to remove one of the connectors. Be careful. I had to get a new display and move the Touch ID button.

I think that moving the replacement of the seal lower in the chain of events would be more beneficial. I'm replacing the battery, and stretching the adhesive tabs that held the battery in at a low angle kept sticking themselves to the newly-installed adhesive seal.

In the end, I wound up having to just remove the section of the seal along the bottom of the case :-/

If I'd been looking at the bigger picture, I'd have wanted to put the seal on right before reattaching the screen cables.

This guide does not show you the removal process for the top camera assembly. My screen looks like the one pictured but my replacement doesn't have the top connector or any of the front facing camera components and since the ribbon for the connectors looks like its coming out from underneath the display I can't see how to swap it over to the new display.

Acabei separando o flex nesse ponto 🤦🏻 tentei colar mas não funcionou , tive que comprar outro mas quando liguei o celular não ligava mais , ficava em loop e reiniciava , alguém sabe o motivo?

yeah the mic and the earpiece not working , what is the solution for this problem ?

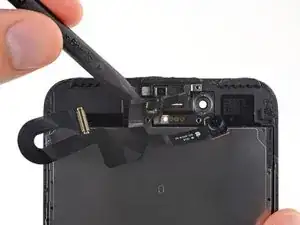

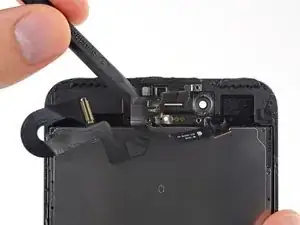

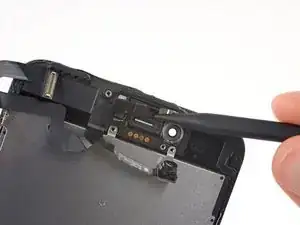

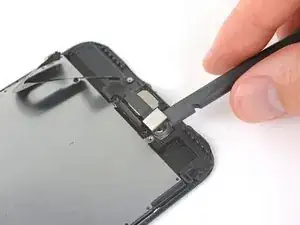

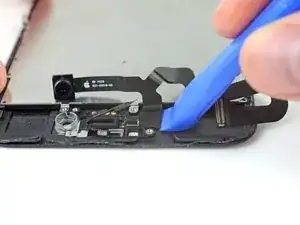

Do not pull on the cable an be gentle with the heat. There is a potential that the cable, which is soldered together on this part.

I had an issue with a costumers flex cable an the ear speaker stopped working bit the cable looked okay and I did not pull on it. So I used an soldering iron with a small tip, put some flux tape where the doubled-sided tape sits on the pads and soldered the cable back together at about 390 degrees celsius. It now works perfectly again.

After replacing screen, front camera doesn’t work. Replaced camera cable cable with a new cable; still no front camera. Rear camera works fine. Also, have a software “Home” button showing up. Finger Touch ID works and works as the Home button should as far as I can tell, How do I get rid of it?

Earpiece is also not working

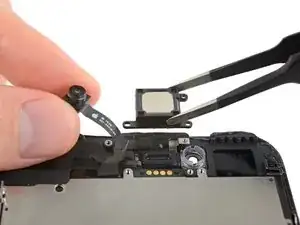

So i had the same problem that the erapiece only is not working after replacement..

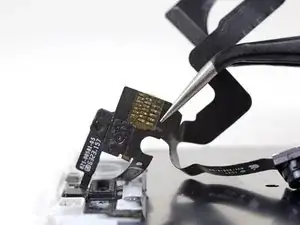

my soulotion was to reassmble all the flat out the there is a black double sided tape that need to put exactly on the back of the golden points behind the flat.

once the tape back on those golden tips it should work properly

is it okay to use electric tape in that case to cover the copper pieces? i installed everthing and the front camera works and the speaker works just when i make a call it turns off.. any recommendations?

why wouldnt it come with the tape on already? Im about to put electric tape because i dont have anything else.

なぜiPhone7Plusのフロントカメラフレックスケーブルには裏面に金属端子のような部分があるのでしょうか？

iPhone7やiPhone8にはこの部分がありませんが必要な役割がありますか？

After replacing iPhone 7+ screen I can’t call out or answer calls everything else works cleaned contacts with alcohol wipes put it back together and same thing the time is right I even updated the os since installing the new screen but phone reboots every time a call comes in or I dial out any suggestions
